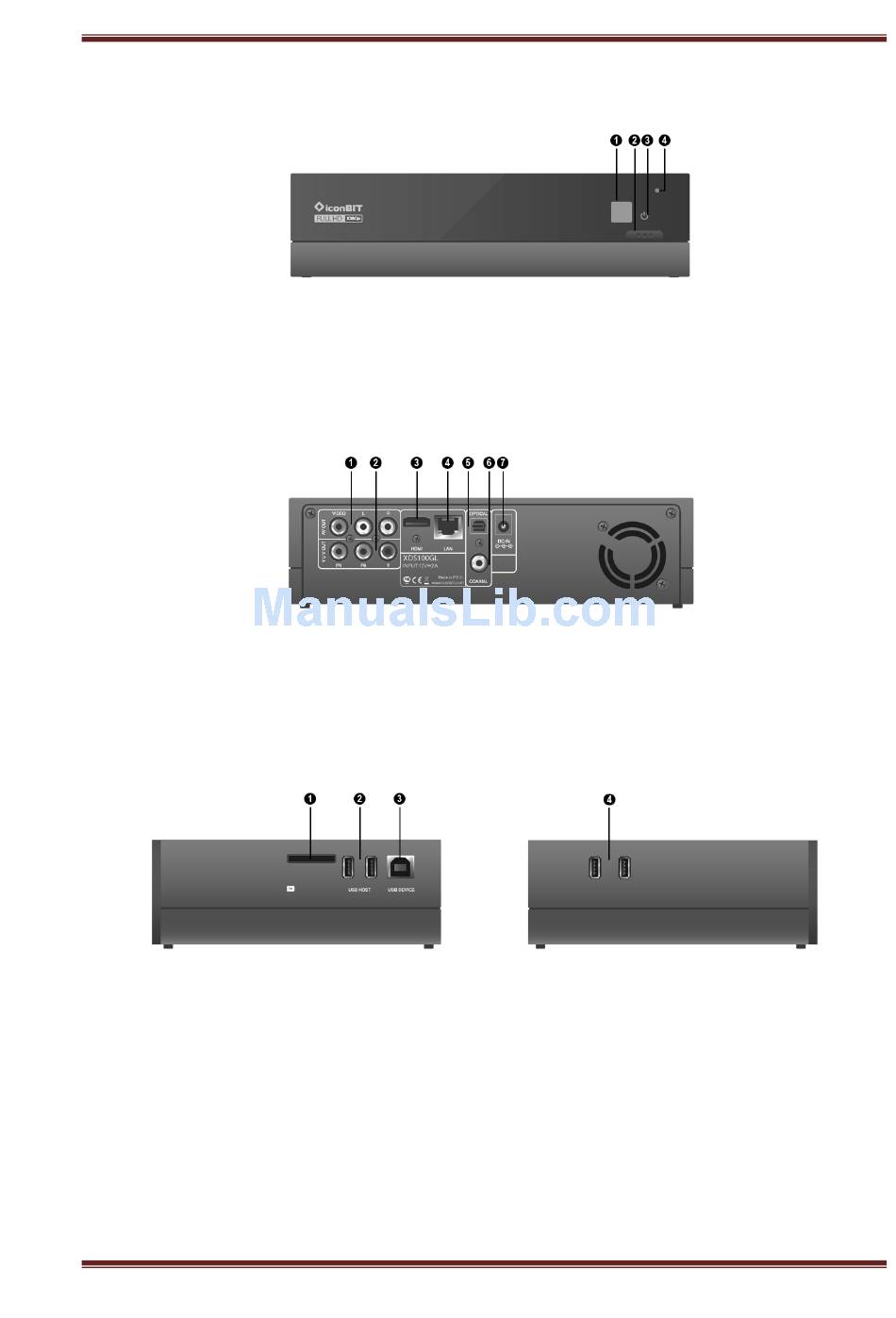

2.2 Front Panel

1. Infrared receiver window
3. Power indicator

2.3 Back Panel

1. A/V OUT jack
3. HDMI interface
5. S/PDIF Optical jack
7. DC-IN jack
2.4 Side Panels
1. Memory card slot
3. USB 3.0 DEVICE port (B-Type)
2. Power button
4. Recording indicator
2. Y/Pb/Pr OUT jack
4. RJ-45 LAN socket
6. S/PDIF Coaxial jack
2. USB 2.0 HOST port (A-Type) x 2
4. USB CHARGER port
