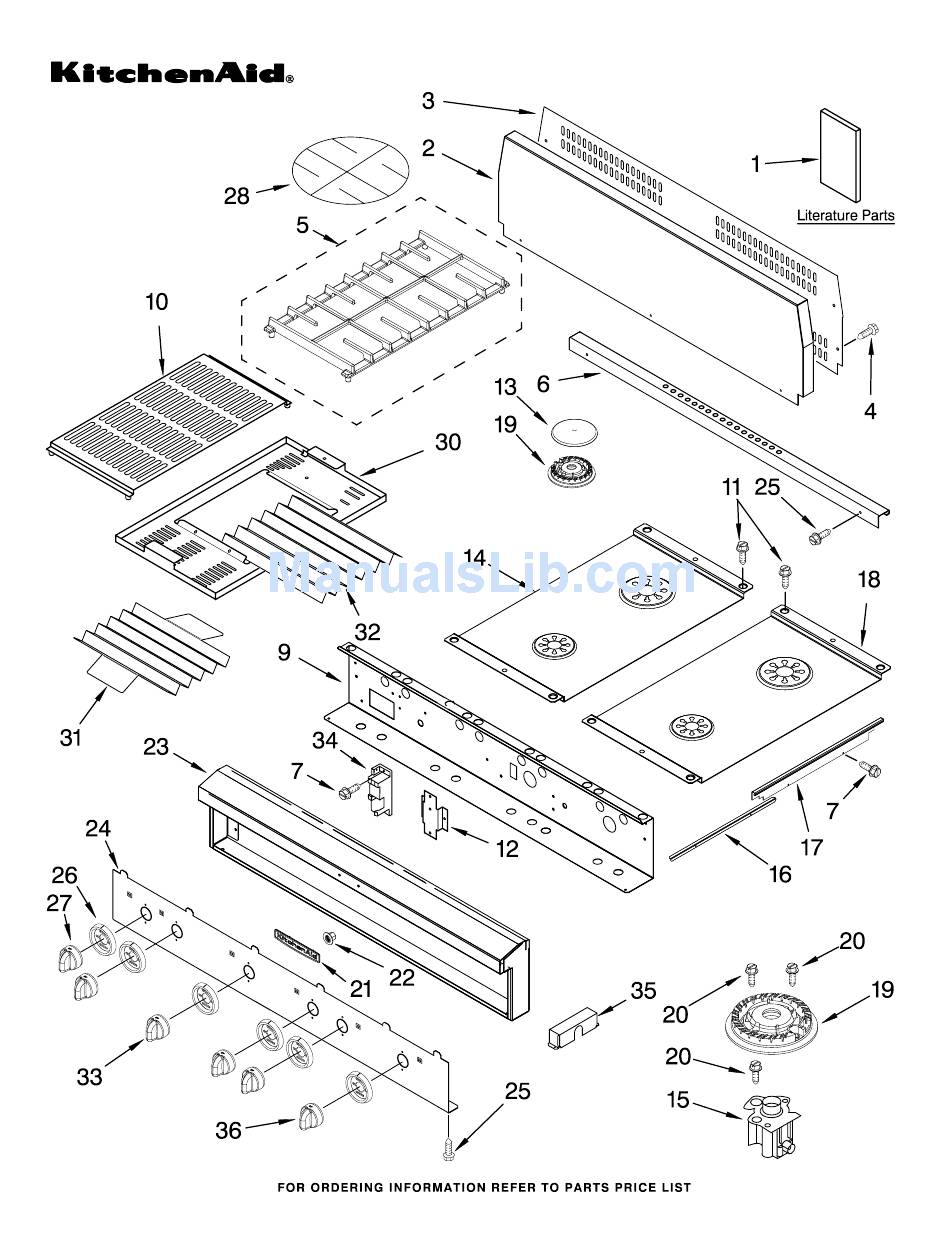

- Page 1 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP484KSS02 48" Stainless Steel Professional Cooktop (Stainless Steel) (with grill & griddle) Part No.8186163 4−04 Litho in U.S.A. (cre)
- Page 2 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP484KSS02 Illus. Part LIT8284959 Wiring Diagram LIT8285588 Use & Care Guide LIT8284979 Installation LIT8285589 Instructions, 8284730 Backsplash 8284760 Support,Backsplash 3196537 Screw, 8−18 x 3/8 4454963 Grate, Burner 8285066 Trim, Island 3400843 Screw, 8−18 x 1/4...
- Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP484KSS02 (Stainless Steel) 8186163...
- Page 4 4455157 Regulator,Pressure 4457096 Burner Box Bracket, 8284795 Grill Valve 8284805 Griddle Valve Valve, 8284858 Grill 8284788 Griddle PARTS NOT ILLUSTRATED For Model: KGCP484KSS02 (Stainless Steel) Illus. Part DESCRIPTION Side, Burner Box 8285487 Right Hand 8285488 Left Hand 8285055 Support, Rear...
