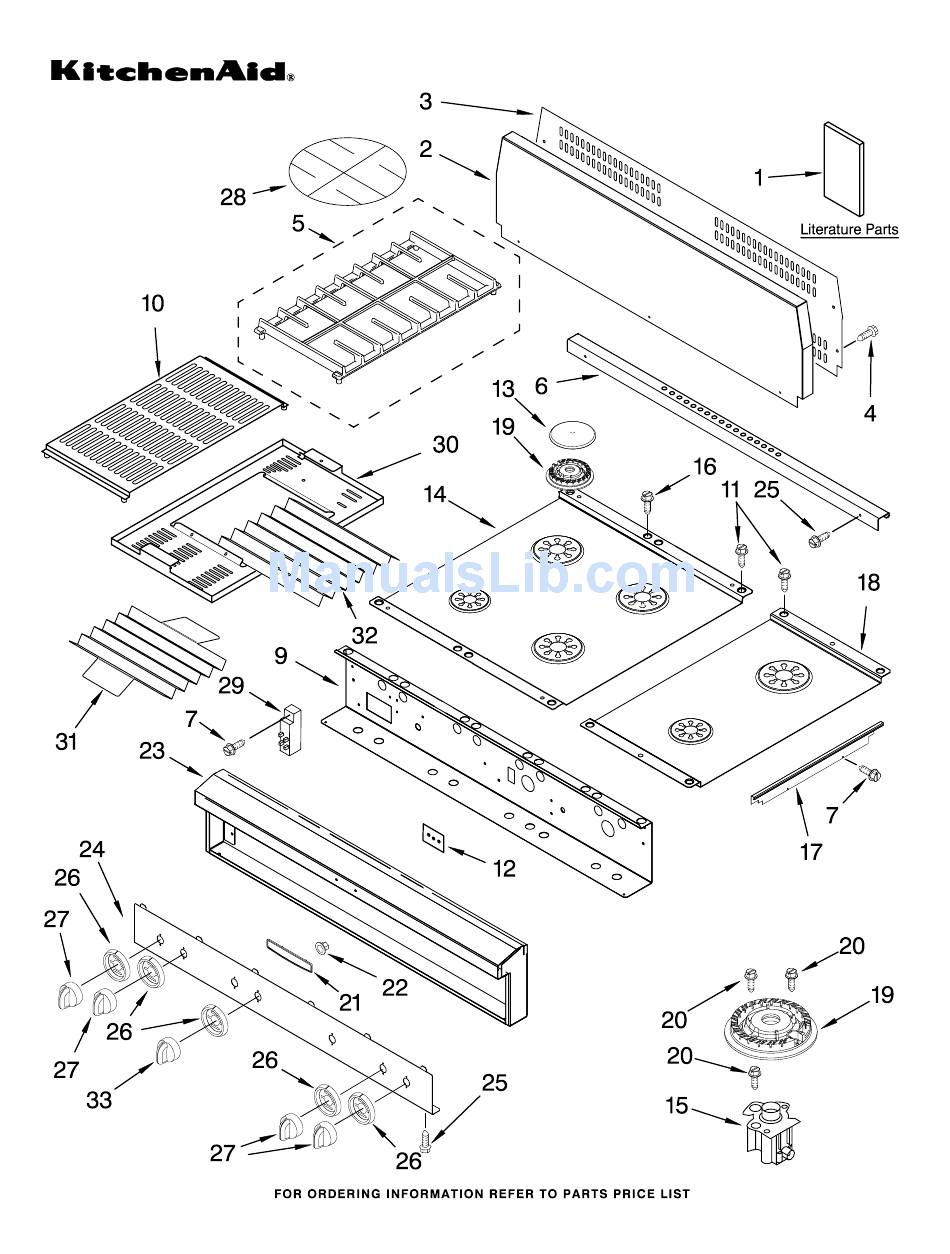

- Page 1 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP482KSS03 48" Stainless Steel Professional Cooktop (Stainless Steel) (with grill) Part No.8186335 8−05 Litho in U.S.A. (cre)
- Page 2 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP482KSS03 Illus. Part 8285497 Wiring Diagram 8285588 Use & Care Guide 8285479 Installation 9759442 Instructions, 8284730 Backsplash 8284760 Support,Backsplash 3196537 Screw, 8−18 x 3/8 4457149 Grate, Burner 8284852 Trim, Island 3400843 Screw, 8−18 x 1/4...
- Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP482KSS03 (Stainless Steel) 8186335...
- Page 4 4455154 Tubing, Gas Burner − LR 8284737 Manifold (Includes Items #9 & #30) 4456816 Valve, Burner Small (2) 8523704 Bolt, Valve For Model: KGCP482KSS03 (Stainless Steel) Illus. Part DESCRIPTION 4456907 Burner Switch & Harness Assembly 9759091 Regulator,Pressure 4457095 Burner Box...
-
Page 5: Wiring Harness Parts
OPTIONAL PARTS NOT ILLUSTRATED 8186335 For Model: KGCP482KSS03 (Stainless Steel) Illus. Part DESCRIPTION WIRING HARNESS PARTS 8285527 Power Cord FE02349 Bushing 4456627 Harness, Ignitor "28" 4456628 Harness, Ignitor "42" Miscellaneous 8284782 L.P. Orifice Spud Pack...
