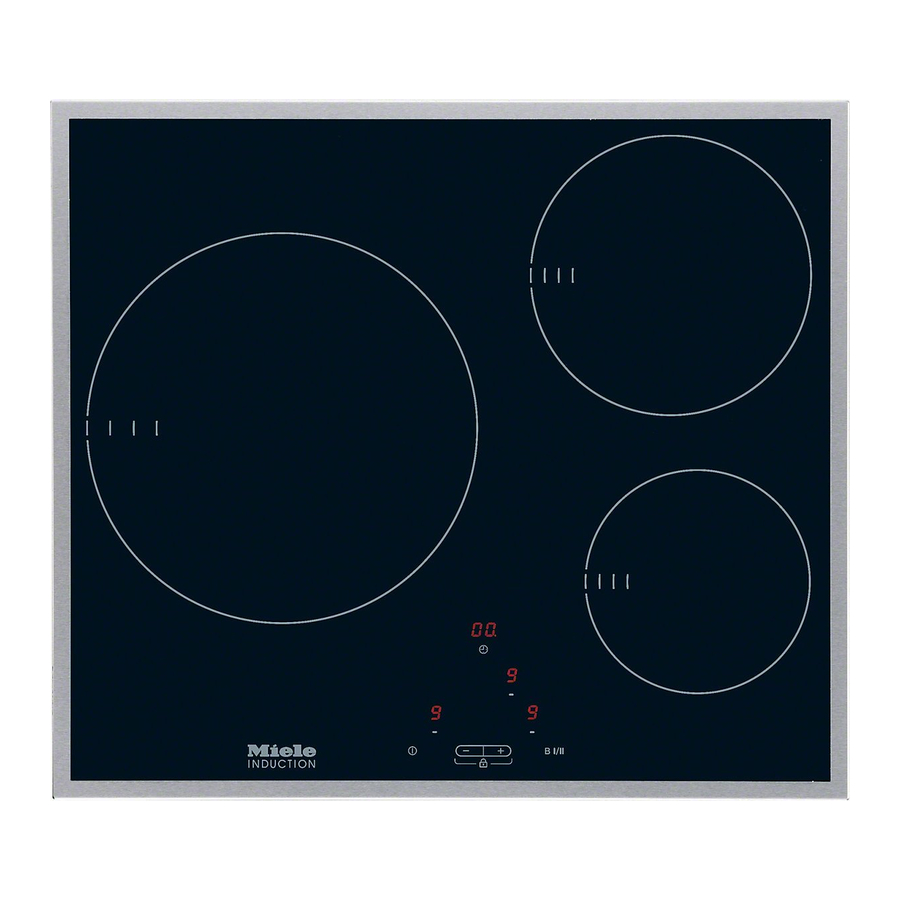

Ceramic hobs with induction
Hide thumbs Also See for KM 6113:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual
Operating and installation instructions
Ceramic hobs with induction
KM 6113 / KM 6112 / KM 6115
KM 6116 / KM 6117 / KM 6118
en - GB
To avoid the risk of accidents or
damage to the appliance it is
essential to read these
instructions before it is installed
and used for the first time.
M.-Nr. 07 798 970

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KM 6113 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Miele KM 6113

Summary of Contents for Miele KM 6113

  • Page 1 Operating and installation instructions Ceramic hobs with induction KM 6113 / KM 6112 / KM 6115 KM 6116 / KM 6117 / KM 6118 en - GB To avoid the risk of accidents or damage to the appliance it is...

  • Page 2: Table Of Contents

    KM 6113 ........
  • Page 3 KM 6113........

  • Page 4: Guide To The Appliance

    Guide to the appliance Models KM 6113 Cooking zone with TwinBooster bc Cooking zones with Booster Control panel...
  • Page 5 Guide to the appliance KM 6112 / KM 6115 / KM 6116 Cooking zone with TwinBooster bcd Cooking zones with Booster Control panel...
  • Page 6 Guide to the appliance KM 6117 ac Cooking zone with TwinBooster bd Cooking zones with Booster Control panel...
  • Page 7 Guide to the appliance KM 6118 Cooking zone with TwinBooster bcd Cooking zones with Booster Control panel...

  • Page 8: Control Panel

    Guide to the appliance Control panel...
  • Page 9 Guide to the appliance Sensor controls a For switching the hob on and off b - For setting the power level - For activating the lock - For setting the time c Booster/TwinBooster d For selecting the cooking zone e - For selecting the timer - For switching between the timer functions - For selecting the switch-off time (see "Switching off a cooking zone automatically")

  • Page 10: Cooking Zones

    Guide to the appliance Cooking zones Cooking KM 6113 zone Minimum to maximum Rating in watts for 230 V** C in cm* 18 - 28 Normal 2600 TwinBooster level 1 3000 TwinBooster level 2 3700 14 - 20 Normal 1850...
  • Page 11 Guide to the appliance Cooking KM 6117 zone Minimum to maximum Rating in watts for 230 V** C in cm* 16 - 23 Normal 2300 TwinBooster level 1 3000 TwinBooster level 2 3700 10 - 16 Normal 1400 Booster 2200 14 - 20 / Normal 1850...

  • Page 12: Warning And Safety Instructions

    Any other usage is not supported by installation, safety, operation and the manufacturer and could be care of the appliance. dangerous. Miele cannot be held liable for damage resulting from incorrect or Keep these instructions in a safe improper use or operation of the place and ensure that new users are appliance.
  • Page 13 Warning and Safety instructions Safety with children Keep all pans out of reach of children. Turn pan handles inwards Use the safety lock to prevent away from the edge of the hob. Danger children operating the appliance or of burning or scalding. Special hob altering the settings.
  • Page 14 Miele authorised person in strict and an effective earthing system which accordance with current national and complies with local and national safety local safety regulations.
  • Page 15 H 05 VV-F The appliance gets hot when in use (pvc insulated), available from the Miele and remains hot for quite a while after Spare Parts Department. being switched off. There is a danger of...
  • Page 16 Warning and Safety instructions For added protection, it is advisable Do not heat up unopened tins of to use heat-resistant pot holders or food on the hob, as pressure will build gloves when using the appliance. Do up in the tin, causing it to explode. This not let them get damp or wet, as this could result in injury and scalding or causes heat to transfer through the...
  • Page 17 Warning and Safety instructions Do not allow either solid or liquid Metal utensils stored in a drawer sugar, or pieces of plastic or aluminium under the hob can become hot if the foil to get onto the cooking zones when induction hob is used intensively for a they are hot.

  • Page 18: Caring For The Environment

    Caring for the environment Disposal of the packing Disposal of your old appliance material Electrical and electronic appliances often contain materials which, if The transport and protective packing handled or disposed of incorrectly has been selected from materials which could be potentially hazardous to are environmentally friendly for human health and to the environment.

  • Page 19: Before Using For The First Time

    Before using for the first time Please stick the extra data plate for the appliance supplied with this documentation in the space provided in the "After sales service, data plate" section of this booklet. Cleaning for the first time Remove any protective wrapping and adhesive labels. Before using for the first time, clean the appliance with a damp cloth only and then wipe dry.

  • Page 20: Induction

    Induction The induction principle An induction coil is located under each cooking zone. When a cooking zone is switched on, this coil creates a magnetic field which impacts directly on the base of the pan and heats it up. The cooking zone itself is heated up indirectly by the heat given off by the pan.

  • Page 21: Noises

    Induction Noises When using an induction cooking zone, the following noises can occur in the pan, depending on what it is made of and how it has been constructed. – On the higher power settings, it might buzz. This will decrease or cease altogether when the power setting is reduced.

  • Page 22: Pans

    Induction Pans Suitable pans include: – stainless steel pans with a magnetic base – enamelled steel pans – cast iron pans Unsuitable pans: – stainless steel pans without a magnetic base – aluminium and copper pans – glass, ceramic or earthenware pots and pans To test whether a pot or pan is suitable for use on an induction hob, hold a magnet to the base of the pan.

  • Page 23: Operation

    Operation How the hob is operated The hob is equipped with electronic sensor controls which react to finger contact. To operate the hob, touch the relevant sensor. Each time you touch a sensor, an audible tone sounds. In order to set or alter a power level or the time, the cooking zones and the timer must be "active".

  • Page 24: Switching On

    Operation Switching on The hob must be switched on before any of the zones can be used. Do not leave the appliance unattended whilst it is being used. To switch the hob on ^ Touch the s sensor. 0 will appear in each of the cooking zone displays. 00 will appear in the timer display.

  • Page 25: Settings

    Operation Settings The appliance is delivered with 9 power levels programmed in. If you wish to fine-tune a setting, you can extend the power level range (see "Programming"). The intermediate setting will be represented by an illuminated dot next to the number.

  • Page 26: Auto Heat-Up

    Operation Auto heat-up When Auto heat-up has been activated, the cooking zone switches on automatically at the highest power level/setting and then switches to the continued cooking setting selected. The heat-up time depends on which continued cooking setting has been chosen (see chart). To activate Auto heat-up ^ Touch the sensor for selecting the cooking zone you want.
  • Page 27 Operation Continued Heat-up time cooking setting* in minutes and seconds (approx.) 0 : 15 0 : 15 0 : 15 0 : 15 0 : 25 0 : 25 0 : 50 0 : 50 2 : 00 5 : 50 5 : 50 2 : 50 2 : 50...

  • Page 28: Booster Function

    Operation Booster function The cooking zones are equipped with a Booster or TwinBooster (see "Guide to the appliance"). When activated, the power is boosted for 15 minutes so that large quantities can be heated quickly, e.g. when boiling water for cooking pasta. The Booster function can only be used on two cooking zones at the same time, one on the left and one on the right.
  • Page 29 Operation To switch on the Booster ^ Touch the sensor for selecting the cooking zone you want. ^ Select a power level if you wish. ^ Touch the B I/II sensor. The indicator lamp for the Booster lights up, and h starts to flash in the cooking zone display.

  • Page 30: Keeping Warm Function

    Operation Keeping warm function Each cooking zone has a keeping warm function ("h"). The "h" function is in between the "0" setting and the "1"setting . If the keeping warm function has been activated, the cooking zone will switch off automatically after a maximum of 2 hours. This function is for keeping food that has just been cooked warm, i.e.

  • Page 31: Switching Off And Residual Heat Indicators

    Operation Switching off and residual heat indicators Switching off a cooking zone ^ Touch the sensor for selecting the cooking zone you want twice. A 0 will flash in the cooking zone display for a few seconds. If the cooking zone is still hot, the residual heat indicator will then appear in the display.

  • Page 32: Tips On Saving Energy

    Tips on saving energy – Use a pan lid whenever possible to minimise heat loss. uncovered covered – Select a smaller pan when cooking small quantities. A smaller pan uses less energy than a larger pan with very little in it. –...

  • Page 33: Timer

    Timer The hob must be switched on to use the timer. The timer can be used for two different functions: - to set the minute minder - to set a cooking zone to switch off automatically. You can select a time from 1 minute (01) to 9 hours (9.^).

  • Page 34: To Switch A Cooking Zone Off Automatically

    Timer To switch a cooking zone off automatically You can set a time at the end of which a cooking zone will switch off automatically. All the cooking zones can be programmed at the same time. If the time programmed is longer than the maximum operational time allowed, the cooking zone will switch off after the maximum time allowed (see "Safety switch-off").

  • Page 35: To Use Both Timer Functions At The Same Time

    Timer If more than one switch-off time is programmed, the shortest time remaining will show in the display, and the indicator lamp for that particular cooking zone will flash. All the other indicator lamps will light up constantly. If you want to check on the time remaining for another zone, touch the m sensor repeatedly until the indicator lamp for the zone you require flashes.

  • Page 36: Safety Features

    Safety features Safety lock / System lock Keep children away from the hob for their own safety. Your appliance is equipped with a safety lock and a system lock to prevent the hob and the cooking zones being switched on or any settings being altered.
  • Page 37 Safety features To activate the locks ^ Touch the - and + sensors at the same time until a long tone sounds. To deactivate the locks ^ Touch the - and + sensors at the same time until a tone sounds.

  • Page 38: Safety Switch-Off

    Safety features Safety switch-off Safety switch-off with an over-long cooking time If one of the cooking zones is heated for an unusually long period of time (see chart) and the power level is not altered, the hob will switch itself off automatically and the relevant residual heat indicator will light up.

  • Page 39: Overheating Protection

    Safety features Overheating protection Induction coils/Cooling elements All the induction coils and the cooling elements for the electronics are fitted with an overheating protection mechanism. Before the induction coils or cooling elements get too hot, the overheating protection mechanism cuts in in one of the following ways: Induction coils –...
  • Page 40 Safety features Control panel The control panel electronic unit is equipped with overheating protection. This switches off the hob automatically before the electronic unit overheats. The fault code FE37 will appear. Once the electronic unit has cooled down sufficiently, the fault code will go out and you can use the hob again.

  • Page 41: Cleaning And Care

    Cleaning and care For Miele branded cleaning and conditioning products see "Optional accessories". Do not use a steam cleaning appliance to clean this appliance. The steam could reach the electrical components and cause a short circuit. The appliance should be cleaned regularly, preferably after each use.
  • Page 42 Cleaning and care Ceramic surface Wipe all coarse soiling off using a damp cloth. Stubborn soiling may need to be removed with a shielded scraper blade. Then clean the hob with a suitable ceramic and stainless steel hob cleaner (see "Optional accessories") applied with kitchen paper or a clean cloth.

  • Page 43: Additional Functions

    Additional functions Reset The hob has a reset function. This allows you to restore all settings changed using the programming function to their original factory default settings. To activate the reset function ^ Switch the hob on. ^ Touch and keep your fingers on the sensors for the front left-hand and front right-hand cooking zones at the same time until the indicators for these cooking zones have gone out (approx.

  • Page 44: Programming

    Additional functions Programming You can change the default settings of the programme options (see chart). Several settings can be altered in succession. After the programming mode has been called up, P (Programme), S (Status) and numbers will appear in the cooking zone displays.
  • Page 45 Additional functions Programme* Status** Setting Demonstration mode and Demonstration mode on factory default settings (after the hob is switched on, "d" will appear in the front left cooking zone display and "E" in the front right cooking display for a few seconds). Demonstration mode off Factory default settings reinstated Power level range...
  • Page 46 Additional functions Programme* Status** Setting System lock Manual activation of the system lock only Manual and automatic activation of the System lock 6. Sensor reaction speed Slow Normal Rapid * Programmes not shown here have no allocation. ** The factory default settings are shown in bold.

  • Page 47: Problem Solving Guide

    – Disconnect the mains fuse. Reset the trip switch in the mains fuse box, and switch the appliance back on. If it still will not switch on, contact a qualified electrician or the Miele Service Department.
  • Page 48 Problem solving guide Problem Possible cause Remedy There is a strange The smell and any vapours smell or vapours when will dissipate after a short a new appliance is time. They are not harmful being used. and do not indicate a faulty connection or appliance.
  • Page 49 Problem solving guide Problem Possible cause Remedy The Booster has deactivated early automatically. The overheating See "Overheating protection". The cooking zone is protection mechanism not working in the has triggered. usual way at the power level set. Power level 9 is Operating both zones automatically reduced at power level 9 would...
  • Page 50 Remove any objects which could block it. If the fault message appears again, call the Miele Service Department. All other fault codes A fault with the electronics Interrupt the power supply to has occurred.

  • Page 51: Optional Accessories

    Optional accessories Miele appliances are designed to give the best possible results and years of satisfaction. To help you get the most from your appliance, Miele has put together a comprehensive range of accessories and cleaning products. These can be ordered via the internet at:...

  • Page 52: Safety Instructions For Installation

    Safety instructions for installation After installing the hob, ensure that The appliance must only be installed the connection cable cannot come into and connected to the electricity contact with the underside of the supply by a suitably qualified and appliance. Make sure that there is no competent person in strict mechanical obstruction, such as a accordance with current national...
  • Page 53 Safety instructions for installation Safety distance above the appliance When two or more appliances are installed together below a cooker hood, e.g. a gas wok and a ceramic hob, which have different safety distances given in the installation instructions, you should select the greater distance of the two.
  • Page 54 Safety instructions for installation Safety distances to the sides and back of the hob Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and a tall unit or wall on one side (right or left) (see illustrations).
  • Page 55 Safety instructions for installation Safety distances underneath the hob Interim shelf To ensure sufficient ventilation to the It is not necessary to fit an interim shelf hob, a minimum gap must be left underneath the hob, but one may be between the underside of the hob and fitted if you wish.
  • Page 56 Safety instructions for installation Safety distance when installing the appliance near a wall with additional niche cladding A minimum safety distance must be maintained between the worktop cut-out and any niche cladding to protect it from heat damage. If the niche cladding is made from a combustible material (e. g. wood) a minimum safety distance e of 50 mm must be maintained between the cut-out and the cladding.
  • Page 57 Safety instructions for installation Hob with frame or bevelled Tiled worktop edges Seal between the hob and the worktop Grout lines a and the hatched area underneath the hob frame must be smooth and even. If they are not the hob will not sit flush with the worktop and the sealing strip underneath the The sealing strip under the edge of the...

  • Page 58: Building-In Dimensions

    Building-in dimensions KM 6112 a Front b Casing depth c Mains connection box The mains connection cable (1440 mm long) is supplied separately.
  • Page 59 Building-in dimensions KM 6113 a Front b Casing depth c Mains connection box The mains connection cable (1440 mm long) is supplied separately.
  • Page 60 Building-in dimensions KM 6115 a Front b Casing depth c Mains connection box The mains connection cable (1440 mm long) is supplied separately.
  • Page 61 Building-in dimensions KM 6116 a Front b Casing depth c Mains connection box The mains connection cable (1440 mm long) is supplied separately.
  • Page 62 Building-in dimensions KM 6117 a Front b Casing depth c Mains connection box The mains connection cable (1440 mm long) is supplied separately.
  • Page 63 Building-in dimensions KM 6118 a Front b Casing depth c Mains connection box The mains connection cable (1440 mm long) is supplied separately.

  • Page 64: Installing The Hob

    Installing the hob Preparing the worktop Installing the hob ^ Make the worktop cut-out according ^ Feed the mains connection cable to the dimensions given in the down through the cut-out. building-in diagram. Remember to ^ Place the hob centrally in the cut-out. maintain the minimum safety When doing this, make sure that the distances (see "Safety instructions...

  • Page 65: Electrical Connection

    3 mm in type H 05 VV-F, available from the isolator switch (including switch, Miele. fuses and relays). Ensure power is not supplied to the Important U.K. appliance until after installation or The appliance is supplied for repair work has been carried out.
  • Page 66 Electrical connection The electrical safety of this appliance can only be guaranteed when continuity is complete between it and an effective earthing system, which complies with current local and national safety regulations. It is most important that this basic safety requirement is present and regularly tested and where there is any doubt, the electrical wiring in the home should be inspected by a...

  • Page 67: Wiring Diagram

    Electrical connection Wiring diagram N.B. This appliance is supplied single phase only in the U.K. / AUS / NZ...

  • Page 68: After Sales Service, Data Plate

    Please note that telephone calls may be monitored and recorded to improve our service. When contacting Miele, please quote the model and serial number of your appliance. These are given on the data plate. N.B. A call-out charge will be applied for service visits where the problem could have been resolved as described in these instructions.
  • Page 72 Alteration rights reserved / 0110 M.-Nr. 07 798 970 / 00 M.-Nr. 07 798 970 / 00...
