4. When necessary, remove the Holder (6) from the Tool Support and readjust
(downward) the Tool Support (23) so that the knife blade again lightly touches the
Grinding Stone (19) or Honing Wheel (27). (See Figure K, previous page.)
5. When finished grinding/honing the knife blade, remove the Holder (6) from the
Tool Support (23). Turn off the Wet Grinder. Wait until the machine comes to a
complete stop. Then remove the knife blade from the Holder. (See Figure K.)
To Use The Angle Guide:
1. The Angle Guide (42) is used to determine the cutting edge angle of a tool. To
do so, clamp the tool into the Support Plate (16). Then install the Support Plate
onto the Tool Support (23). (See Figure L.)
2. Hold the Angle Guide (42) with the desired angle (as indicated on the Angle
Guide) at the tool tip. (See Figure L.)
3. Adjust the height of the Tool Support (23) so that the front end of the Angle
Guide (42) touches the Grinding Stone (19). Make sure the Angle Guide
continues to touch the tool tip. (See Figure L.)
4. Once the desired angle is achieved, firmly lock the Tool Support (23) in place and
remove the Angle Guide. (See Figure L.)

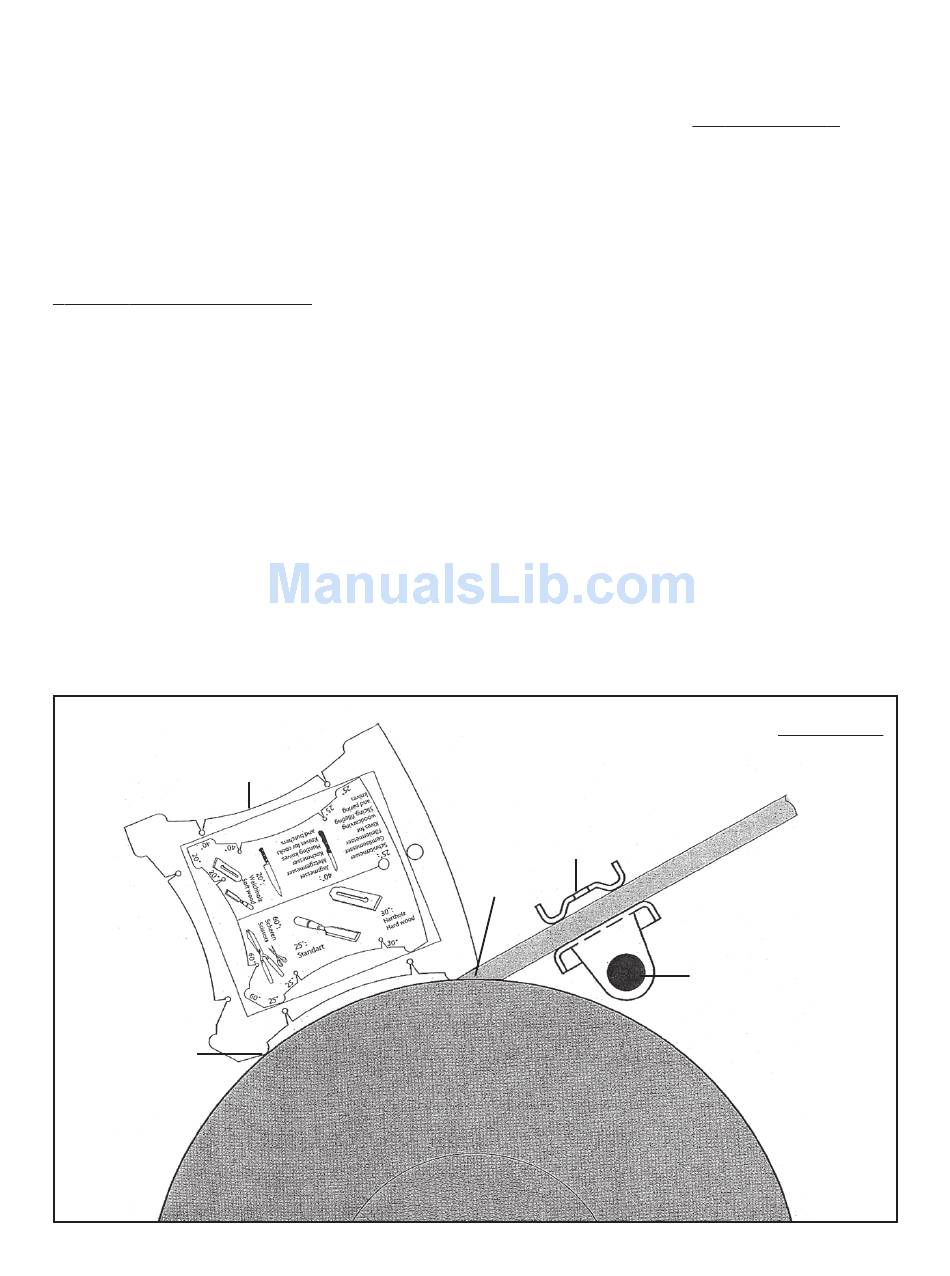

ANGLE GUIDE
FRONT END
OF
GUIDE
(42)
GRINDING STONE
SUPPORT PLATE
(16)
(END VIEW)
TOOL TIP
(19)
PAGE 12
FIGURE L
TOOL SUPPORT
(23)
(END VIEW)
