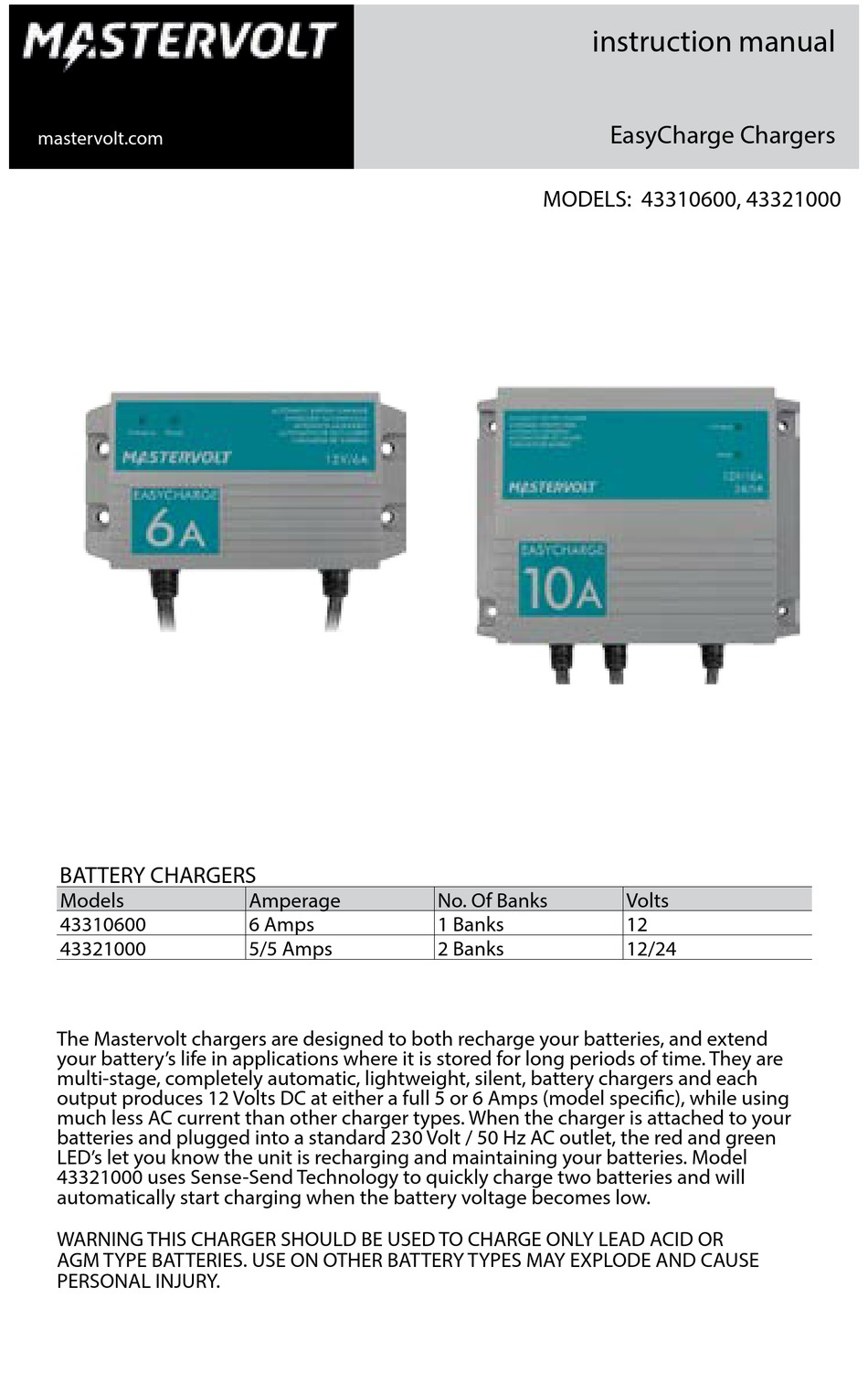

Table of Contents

mastervolt.com
BATTERY CHARGERS
Models
43310600
43321000
The Mastervolt chargers are designed to both recharge your batteries, and extend
your battery's life in applications where it is stored for long periods of time. They are
multi-stage, completely automatic, lightweight, silent, battery chargers and each
output produces 12 Volts DC at either a full 5 or 6 Amps (model specific), while using
much less AC current than other charger types. When the charger is attached to your
batteries and plugged into a standard 230 Volt / 50 Hz AC outlet, the red and green
LED's let you know the unit is recharging and maintaining your batteries. Model
43321000 uses Sense-Send Technology to quickly charge two batteries and will
automatically start charging when the battery voltage becomes low.
WARNING THIS CHARGER SHOULD BE USED TO CHARGE ONLY LEAD ACID OR
AGM TYPE BATTERIES. USE ON OTHER BATTERY TYPES MAY EXPLODE AND CAUSE
PERSONAL INJURY.
Amperage
6 Amps
5/5 Amps
502-2 & 503-2 instructions

instruction manual

MODELS: 43310600, 43321000
No. Of Banks
1 Banks
2 Banks
EasyCharge Chargers
Volts
12
12/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 43310600 and is the answer not in the manual?

Questions and answers

Related Manuals for Mastervolt 43310600

Summary of Contents for Mastervolt 43310600

  • Page 1: Instruction Manual

    2 Banks 12/24 The Mastervolt chargers are designed to both recharge your batteries, and extend your battery’s life in applications where it is stored for long periods of time. They are multi-stage, completely automatic, lightweight, silent, battery chargers and each output produces 12 Volts DC at either a full 5 or 6 Amps (model specific), while using much less AC current than other charger types.

  • Page 2: Important Safety Instructions

    EasyCharge Charger Instructions EasyCharge Charger Instructions WARNING – RISK OF EXPLOSIVE GASES IMPORTANT SAFETY INSTRUCTIONS 1) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES A) SAVE THESE INSTRUCTIONS - This manual contains important safety and operating GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION. FOR THIS REASON, IT instructions for the chargers.
  • Page 3 EasyCharge Charger Instructions EasyCharge Charger Instructions Preparing To Charge Choosing Charging Location A) Before charging a battery with the charger, read the following precautions: 1. Do A) The charger should have at least eight inches of unobstructed area on all sides of NOT operate the charger if the cables or an LED is damaged.
  • Page 4 This results in faster charging. 8 Amps 2 Amps 10 Amp Char- 43310600 (6 amp) 43321000 connection connection with 1 12V used with 2 independent battery. batteries (5/5 amps).
  • Page 5 Replace DC output fuse Input Amps (Max): 1.0 Amps 1.3 Amps the battery is known to with a 10 amp fuse for be low. model 43310600,15 amp Input Voltage Range: 90-265A AC 50/60Hz fuse for model 43321000 Banks: output. Faulty or contaminated...

  • Page 6: Maintaining The Charger

    LIMITED WARRANTY No other maintenance on the charger is required. For two (2) years from the date of purchase, Mastervolt will, at its discretion, repair or replace for the original consumer, free of charge, any part or parts found upon EMC Notice examination by Mastervolt to be defective in material or workmanship or both.
  • Page 7 For more information visit our website: www.mastervolt.com mastervolt.com For a FREE catalog of Mastervolt Recreational Group products, contact your local dealer or visit Mastervolt.com...
