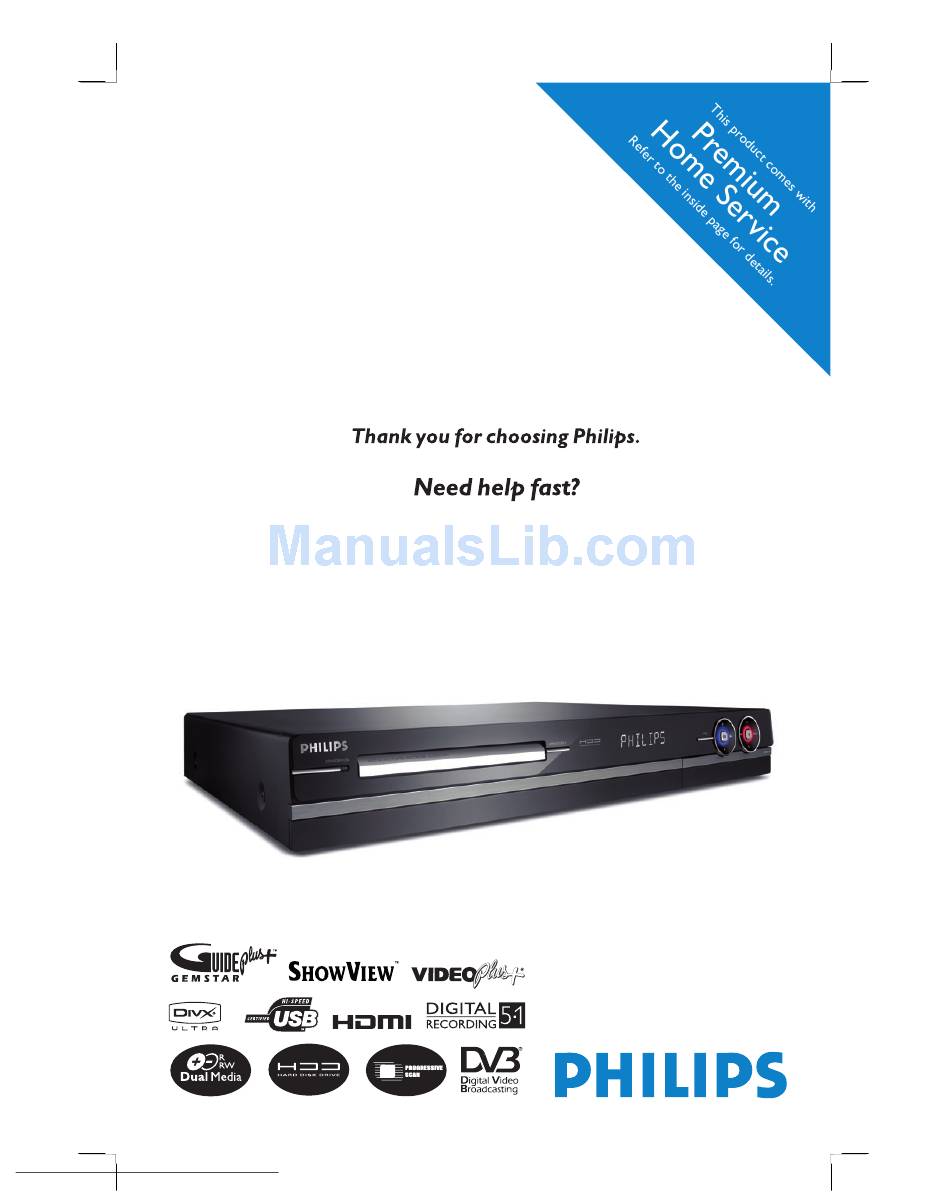

HDD & DVD Player / Recorder
DVDR5520H / DVDR5570H

User Manual

Read your Quick Start Guide and/or User Manual first for quick tips
that make using your Philips product more enjoyable.
Register your product and get support
at www.philips.com/welcome
Downloaded From Disc-Player.com Philips Manuals

Advertisement

Table of Contents
loading

Related Manuals for Philips DVDR5520H

Summary of Contents for Philips DVDR5520H

  • Page 1: User Manual

    HDD & DVD Player / Recorder DVDR5520H / DVDR5570H User Manual Read your Quick Start Guide and/or User Manual first for quick tips that make using your Philips product more enjoyable. Register your product and get support at www.philips.com/welcome Downloaded From Disc-Player.com Philips Manuals...
  • Page 2 If we are unable to provide a solution, Philips will be pleased to pick-up your DVD Recorder from your home; and provide a service replacement set, within 10 days. That’s the Philips ‘Premium Home Service’ commitment to you. This service comes free-of-charge (except for Consumer Care Helpline) and applies to all Philips DVD Recorders during the Philips warranty period.
  • Page 3 Important notes for users in U.K. Italia DICHIARAZIONE DI CONFORMITA’ Mains plug Si dichiara che l’apparecchio DVDR5520H, This apparatus is fi tted with an approved 13 DVDR5570H, Philips risponde alle prescrizioni Amp plug. To change a fuse in this type of plug dell’art.
  • Page 4 PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.’ Downloaded From Disc-Player.com Philips Manuals...
  • Page 5 4,907,093; 5,315,448; and 6,516,132 personnel. This product complies with the radio interference requirements of the European Community. This product complies with the requirements of the following directives and guidelines: 2006/95/EC + 2004/108/EC Downloaded From Disc-Player.com Philips Manuals...

  • Page 6: Table Of Contents

    Timer recording (manually) ........49 Set-up the GUIDE Plus+ system ...28~29 Changing/Deleting a scheduled recording ..51 Record from external devices ..52~54 Recording from an external device (Camcorder/VCR/DVD player) ......52 Recording from a DV Camcorder ......53 Downloaded From Disc-Player.com Philips Manuals...
  • Page 7 Using the Toolbar options ........72 Changing audio soundtrack language .....72 Troubleshooting ......105~110 Changing subtitle language ........73 Specifi cations ........111 Switching camera angles ........73 Zooming in/out .............73 Display panel symbols/messages 112~113 Searching by time ..........73 Glossary .........114~115 Downloaded From Disc-Player.com Philips Manuals...

  • Page 8: Care And Safety Information

    - { Display } option and Setup – Do not place any object or items that settings - { Eco mode } option. can damage this unit (e.g., liquid fi lled objects, lighted candles). Downloaded From Disc-Player.com Philips Manuals...

  • Page 9: Product Information

    HDD Media Jukebox. This device only plays Region 2 DVDs or DVDs manufactured to be played in all regions ‘ALL’. DVDs from other regions cannot be played on this recorder. Downloaded From Disc-Player.com Philips Manuals...

  • Page 10: Special Features

    Alternatively, you can also watch another earlier recorded programme, play a DVD or DivX movie or enjoy some music while the recorder is recording the TV programme. Downloaded From Disc-Player.com Philips Manuals...
  • Page 11 G-LINK transmitter It allows you to control the tuner of the External Receiver (e.g., Satellite Receiver, Cable Box) through the GUIDE Plus+ system. You can record the TV programmes that are received through the External Receiver. Downloaded From Disc-Player.com Philips Manuals...

  • Page 12: Remote Control

    To switch back to recorder mode, press > (NEXT/FFW) this button again. – Skips to previous or next title/chapter/ track. EDIT – Skips to the previous or next day in the – Enters/exits the editing menu. GUIDE Plus+ menu. Downloaded From Disc-Player.com Philips Manuals...
  • Page 13 – Returns to the previous menu. INFO TV VOL +- – Displays on-screen information. – Adjusts the volume of the TV (for Philips SELECT / TEXT TVs or compatible brands only). – Selects multiple fi les for copying or Alphanumeric keypad deleting.

  • Page 14: Using The Remote Control

    – Press a number button repeatedly until the required character or the number appears. – To enter special symbols, press button repeatedly. – To select upper/lower case (capital/ small) letters, press SELECT. – To enter a space, press button Downloaded From Disc-Player.com Philips Manuals...

  • Page 15: Main Unit

    – Pauses or resumes a live TV show. – Starts or pauses playback. . > – Skips to the previous or next chapter/ track. Hold down the button to make a reverse/forward search. – Stops playback/recording. Downloaded From Disc-Player.com Philips Manuals...

  • Page 16: Step 1: Basic Recorder Connections

    TO TV ANTENNA INPUT separate Cable Box/ Satellite Receiver, see socket on the recorder to the ‘Step 2: Optional Connections’ for details. antenna input socket on your TV (usually labelled as ANT, ANTENNA IN, RF IN). Downloaded From Disc-Player.com Philips Manuals...

  • Page 17: Option 2: Connecting To Cable Tv Antenna And/Or Separate Indoor Terrestrial Antenna

    TV (usually labelled as ANT, ANTENNA IN, RF IN). Helpful Hint: – Only free-to-air digital TV channels can be received (no reception of ‘conditional access’ / Smartcard channels). Downloaded From Disc-Player.com Philips Manuals...

  • Page 18: Connecting The Video/Audio Cables

    EXT1 TO TV socket on the recorder recorder to the audio input sockets on to the corresponding SCART socket on the TV. the TV. Helpful Hint: – Use the EXT2-TO VCR/SAT socket for connecting the recorder to additional device. Downloaded From Disc-Player.com Philips Manuals...

  • Page 19: Option 4: Using Component Video Socket/Connecting To A Progressive Scan Tv

    To activate Progressive Scan output, see ‘Other information - Setting up Progressive Scan feature’ for details. Switch your TV to the correct viewing channel for the Component video connection (refer to your TVs user manual). Downloaded From Disc-Player.com Philips Manuals...

  • Page 20: Option 5: Connecting To A Hdmi- Compatible Tv

    HDMI compliant devices and DVI-TVs. Switch your TV to the correct viewing – The teletext information will not be channel for the HDMI connection (refer accessible in the recorder’s Live TV mode. to your TVs user manual). Downloaded From Disc-Player.com Philips Manuals...

  • Page 21: Step 2: Optional Connections

    Connect a scart cable (supplied) from the then connect the external cable box/satellite EXT1 TO TV socket on the recorder receiver to the EXT1 TO TV socket. to the corresponding SCART socket on the TV. Downloaded From Disc-Player.com Philips Manuals...

  • Page 22: Connecting To A Vcr Or Other Similar Device

    Connect a RF antenna cable (supplied) from the TO TV ANTENNA INPUT socket on the recorder to the antenna input socket on your TV (usually labelled as ANT, ANTENNA IN, RF IN). Downloaded From Disc-Player.com Philips Manuals...

  • Page 23: Connecting To A Vcr And Cable Box/Satellite Receiver

    TV (usually labelled as ANT, ANTENNA IN, RF IN). Connect a scart cable (supplied) from the EXT1-TO TV socket on the recorder to the corresponding SCART socket on the TV. Downloaded From Disc-Player.com Philips Manuals...

  • Page 24: Connecting To An Av Amplifi Er/Receiver

    DIGITAL Options - Audio settings’ for details. or COAXIAL output socket on the connected Cable Box/ Satellite Receiver. For more information, see chapter ‘Other information - 5.1 multi-channel recording’. Downloaded From Disc-Player.com Philips Manuals...

  • Page 25: Connecting To A Camcorder

    DV IN – If you connect your camcorder to the scart socket on your recorder. socket at the rear of this recorder, select { EXT1 } or { EXT2 } as the input source. Downloaded From Disc-Player.com Philips Manuals...

  • Page 26: Step 3: Installation And Set

    This setting is important for automatic the TV. Select the type of tuner to install installation of TV channels in your area. and press the Green button on the remote control to start channel search. Downloaded From Disc-Player.com Philips Manuals...
  • Page 27 GUIDE Plus+ system as soon as you button to continue. complete the installation. It may take up to 24 hours to receive TV listings data. Time Time setting is required for making recordings. Time format is 24h (hh:mm) Previous Next Downloaded From Disc-Player.com Philips Manuals...

  • Page 28: Set-Up The Guide Plus+ System

    Follow the screen display to select or channel for your country and leave it on enter the required information. overnight. See the Host Channel table for details. Downloaded From Disc-Player.com Philips Manuals...
  • Page 29 Once complete, press TIMER (GUIDE Plus+) to exit the menu. Leave the Recorder in ‘standby’ mode and the External Receiver ‘ON’ during the night to load the TV listing data. Downloaded From Disc-Player.com Philips Manuals...

  • Page 30: Control Tv Programmes

    If you switch the recorder to standby mode, You can choose to display or hide the all the contents in the Time Shift Buffer will Time Shift video bar by pressing the be cleared. INFO on the remote control. Downloaded From Disc-Player.com Philips Manuals...

  • Page 31: Marking The Contents For Recording

    – Access { Tuner } option in the system Playback settings - { Replay interval } / { Skip settings menu. interval } for details. – Change the { Record mode } or { Clock } setting. Downloaded From Disc-Player.com Philips Manuals...

  • Page 32: Pause Live Tv Function

    To view the programme information playback. on other channels, press the P +/-. To view the next day programme, press the Yellow button for { Next } Press PREV . until you reach the scene to begin. Downloaded From Disc-Player.com Philips Manuals...

  • Page 33: Using The Toolbar Options

    Move to { Reset TSB } and press B. Press OK. A warning message appears. To proceed, select { Yes } in the menu and press OK on the remote control. The contents in the Time Shift Buffer (TSB) will be cleared. Downloaded From Disc-Player.com Philips Manuals...

  • Page 34: Guide Plus+ Tv Listings

    TV listings, press . / >. Select a TV programme and press OK to view. Helpful Hint: – If certain channels are missing, go to the { Editor } menu bar to check and change the channels. Downloaded From Disc-Player.com Philips Manuals...

  • Page 35: Using Guide Plus+ Menu

    Displays the TV listings information by channel and time, eight days in advance. E Menu Bar Displays the GUIDE Plus+ menu options and your current selection. F Information Box Displays short programme descriptions or help menus. Downloaded From Disc-Player.com Philips Manuals...
  • Page 36 Neighbours 17:30 BBC News 18:00 Regional news programmes 20:00 Record Profile Home To access the profi le settings, press the yellow button for { Profi le }. Home Press OK to activate your Profile. Home Downloaded From Disc-Player.com Philips Manuals...
  • Page 37 GUIDE Plus+ system according to your personal situation (Region, TV reception). In addition you have the option to set up your Host Channel and to view the GUIDE Plus+ system information screen. Home Downloaded From Disc-Player.com Philips Manuals...

  • Page 38: Using The Home Menu

    Press HOME on the remote control. The Home menu appears. Source Content Recordings Hard Disk Disc Tray Video files Music Photo Move the selection bar to a desired media or function and press B or OK to select. Downloaded From Disc-Player.com Philips Manuals...

  • Page 39: Viewing Media Information

    – Available space. – Space used by protected titles. { USB Info } USB drive information. – Name. – Total memory size. – Available space. Press the Blue button again returns to the previous menu. Downloaded From Disc-Player.com Philips Manuals...

  • Page 40: Before Recording

    After this is done, no more data can be added to the disc. See ‘Edit Recordings - Recordable DVD - Finalising the DVD±R for playback’ for details. Downloaded From Disc-Player.com Philips Manuals...

  • Page 41: Default Recording Settings

    The system settings menu appears. Preferences Language Record mode Recording Auto protect Playback SAT recording Video output Chapters Audio Audio record mode Analogue tuner Digital tuner Setup Move to { Recording } and press B. Downloaded From Disc-Player.com Philips Manuals...

  • Page 42: Recording Settings

    See ‘Record to Hard Disk - Automatic recording from Satellite Receiver’ for details. { On } – Enable this recorder to start and stop recording when a signal is received from the connected device. { Off } – Disable the function. Downloaded From Disc-Player.com Philips Manuals...
  • Page 43 – Disable digital audio input. Record audio in mode stereo mode. { Multichannel } – Record audio in multi-channel mode. Note: Multi-channel recordings from digital terrestrial tuner can only be played back on this recorder. Downloaded From Disc-Player.com Philips Manuals...

  • Page 44: Record Tv Programmes

    You can turn off your TV and the To cancel the recording, press the Red recorder to standby mode while button for { Cancel Rec }. recording. The recorder continues recording and stops at the designated end time. Downloaded From Disc-Player.com Philips Manuals...

  • Page 45: Simultaneous Record And Play Function

    – Remember to switch the TV back to its video input channel if you want to watch the keys to reach the title you want TV channel through the recorder or play to play. back the recorded disc. Press u to start playback. Downloaded From Disc-Player.com Philips Manuals...

  • Page 46: Automatic Recording From Satellite Receiver

    The recorder starts recording when it detects a signal from the Satellite Receiver. Helpful Hint: – The recorder’s timer recordings take priority over automatic satellite recording. Automatic Satellite recording stops if the recorder’s timer recording is due to start. Downloaded From Disc-Player.com Philips Manuals...

  • Page 47: About Timer Recording

    To view the scheduled recording, press repeatedly until the { Grid } menu bar at the top is selected, then press B repeatedly to select { Schedule }. To exit the menu, press TIMER (GUIDE Plus+). Downloaded From Disc-Player.com Philips Manuals...

  • Page 48: Timer Recording (Showview/Video Plus+ System)

    { Schedule } in the top menu bar. programme number manually. Follow the instructions on the TV to edit the date and time. No programmes VIDEO Plus+ Manual Home Downloaded From Disc-Player.com Philips Manuals...

  • Page 49: Timer Recording (Manually)

    If a TV programme starts earlier or ends later than was scheduled, this recorder will then turn on and off at the correct time. No programmes Freq. Dest. Timing Once Cancel Back Home Downloaded From Disc-Player.com Philips Manuals...
  • Page 50 Frequency Destination Timing Home message, the recorder automatically switches to the respective channel and starts Follow the instructions on the screen to recording. make the entry and press the Green button for { Save }. Downloaded From Disc-Player.com Philips Manuals...

  • Page 51: Changing/Deleting A Scheduled Recording

    Once Once Edit Home Delete Press to select a scheduled recording which you want to delete or edit. To delete the scheduled recording, press the Red button on the remote control for { Delete }. Downloaded From Disc-Player.com Philips Manuals...

  • Page 52: Record From External Devices

    Time Shift Buffer will be progress, you can press the OK button to cleared, only the ‘marked’ contents will generate chapter marker at a specifi c point. be stored onto the hard disk. Downloaded From Disc-Player.com Philips Manuals...

  • Page 53: Recording From A Dv Camcorder

    The DV control buttons display on the screen. Turn on the TV to the correct viewing channel for the recorder. Connect your Digital Video or Digital 8 camcorder to the DV IN socket of this recorder. 00:11:25 Cancel CHAPTER DIVIDE HIDE Downloaded From Disc-Player.com Philips Manuals...
  • Page 54 – If a part of the tape is blank, the recording will pause. Recording starts automatically when there is a recordable signal. However, if there is more than 5 (fi ve) minutes of blank tape, the recording ends automatically. Downloaded From Disc-Player.com Philips Manuals...

  • Page 55: Copy Tv Programmes From Hdd

    Helpful Hint: – If you are unable to fi t a title to a recordable DVD, split the title to remove the unwanted sections. See ‘Edit Recordings - Hard Disk - Video editing’ for details. Downloaded From Disc-Player.com Philips Manuals...

  • Page 56: Changing The Screen Display For Recordable Dvd

    Before you can make recording to this disc on this recorder, you must change the screen display of the disc to ‘Philips’ type. Load in a recordable DVD. Press HOME on the remote control.

  • Page 57: Copy Fi Les Between Hdd, Usb And Dvd

    USB thumb drive to the USB slot. Press HOME. Select the media where the fi les are stored and press B. Use the cursor keys to reach the title you want. To make multiple selections, press SELECT. Downloaded From Disc-Player.com Philips Manuals...

  • Page 58: Copying Fi Les From Usb To Hdd Or Recordable Dvd

    Video partition of the hard disk, while all music (.mp3 or .wma) and digital camera Otherwise, select { Cancel } in the menu photos (.jpg) will be copied to the Data and press OK to abort the operation. partition. Downloaded From Disc-Player.com Philips Manuals...

  • Page 59: Playback From Hdd

    { Music } When the search is completed, a list of Contains only audio fi les (.mp3 or .wma). all matching content items will be displayed. { Photo } Contains only picture fi les (.jpg or .jpeg). Downloaded From Disc-Player.com Philips Manuals...

  • Page 60: Basic Operation

    – title is set for auto commercial PAUSE LIVE TV block chapter marking. – title has been viewed. – title has been edited. During playback, you can use the following buttons on the remote control to access additional playback features. Downloaded From Disc-Player.com Philips Manuals...

  • Page 61: Delete/Lock/Protect A Title In The Hdd

    ‘System Menu Options - Playback settings - { Access }’. { Protect } / { Unprotect } Blue button – Protect or unprotect the title against editing or automatic deletion of recordings. To exit the menu, press HOME. Downloaded From Disc-Player.com Philips Manuals...

  • Page 62: Playback From Usb Device

    During playback, the available playback settings are displayed at the bottom of the screen. For more playback information, see ‘Playing an audio CD (MP3/WMA)’, ‘Playing a JPEG photo (slideshow)’ or ‘Playing a DivX disc’ for details. Downloaded From Disc-Player.com Philips Manuals...

  • Page 63: Playback From Disc

    – If the pin code entry dialogue appears on Super Video CD the TV, this means that the child lock was activated for the inserted disc. You have to enter your four-digit pin code. DivX, DivX Ultra Downloaded From Disc-Player.com Philips Manuals...

  • Page 64: Playing A Dvd Video Disc

    To stop playback, press STOP x. Helpful Hint: – If the message ‘EMPTY DISC’ appears on the display panel, this means that there are no recordings on this disc. Downloaded From Disc-Player.com Philips Manuals...

  • Page 65: Playing An Audio Cd (Mp3/Wma)

    – The subtitle fi le name has to be the same as the fi le name of the movie. – The subtitle can only be displayed up to an average of 45 characters. Downloaded From Disc-Player.com Philips Manuals...

  • Page 66: Additional Playback Features

    { Medium } 5 (fi ve) seconds interval. { Fast } 3 (three) seconds interval. Photo folders Info roll 1 roll 2 roll 3 To stop playback, press STOP x. 07.07.2007 100 photo(s) Copy To Album Downloaded From Disc-Player.com Philips Manuals...

  • Page 67: Playing Musical Slideshow

    Select a photo fi le and press u to start slideshow playback. The music keeps playing back and will be repeated if reaches the end of the playlist or track. Press STOP x to stop the slideshow. Downloaded From Disc-Player.com Philips Manuals...

  • Page 68: Creating A Photo Playlist (Album)

    To select all the photos in the selected folder, press SELECT on the remote control. To select a specifi c photos in the folder, press OK to show the overview images. Delete Copy To Album Rotate Downloaded From Disc-Player.com Philips Manuals...

  • Page 69: Editing The Album

    (name or date) and press OK and EDIT to exit the menu. Use the cursor keys to navigate and press SELECT to select the photo. A marking appears on the top right hand corner of the selected photo(s). Downloaded From Disc-Player.com Philips Manuals...

  • Page 70: Selecting Another Title/Chapter/ Track

    (1/8X, 1/4X, 1/2X). Press SELECT on the remote control To resume normal playback, press u. to toggle between ‘Title’ or ‘Chapter’, then press . / > to select the previous or next title/ chapter. Downloaded From Disc-Player.com Philips Manuals...

  • Page 71: Scan Disc / Shuffl E Play / Repeat Play

    To cancel shuffl e playback, press the Playback skips to the start of the Green button again. marked segment. The segment is repeated until the repeat mode is cancelled. To cancel repeat playback, press the Blue button once again. Downloaded From Disc-Player.com Philips Manuals...

  • Page 72: Using The Toolbar Options

    If the selection in the menu is greyed out, that means the feature is not available or cannot be changed in the current state. To exit, press OPTIONS. Downloaded From Disc-Player.com Philips Manuals...

  • Page 73: Changing Subtitle Language

    (hours : minutes : seconds). Use the alphanumeric keypad 0-9 to enter the time where playback should start. Press OK to confi rm. Playback skips to the time entered. Downloaded From Disc-Player.com Philips Manuals...

  • Page 74: Edit Recordings - Hard Disk

    To switch between upper and lower case characters, press SELECT. To clear the title name, press the Red button for { Clear }. Press OK to confi rm the changes. Downloaded From Disc-Player.com Philips Manuals...

  • Page 75: Video Editing

    To exit, press EDIT. Helpful Hint: – The edited title will be appeared with Move to { Video edit } and press OK to symbol in the menu. start video edit playback. Downloaded From Disc-Player.com Philips Manuals...

  • Page 76: Merge/Split A Specifi C Chapter Within A Recording

    Chapter 3 Chapter 4 (for example, chapter 2 is selected) PAUSE LIVE TV Helpful Hint: – There is a limit on chapter markers that can be stored within a title and on the hard disk drive. Downloaded From Disc-Player.com Philips Manuals...

  • Page 77: Dividing Titles

    Otherwise, cancel the operation by playback. pressing the Blue button on the remote control for { Cancel }. Title1 Title 2 To exit, press EDIT. Title1 Title2 Title 3 (for example, title 1 is selected) Downloaded From Disc-Player.com Philips Manuals...

  • Page 78: Showing The Hidden Scene

    { Cancel }. Helpful Hints: – All the hidden chapters will be played back while in video editing mode. – The selection of scenes to hide or show can only be done within a title. Downloaded From Disc-Player.com Philips Manuals...

  • Page 79: Edit Recordings - Recordable Dvd

    – Finalise disc (DVD±R only) – Change title name – Delete all titles – Video editing Edit Disc name Photo Rolls Disc name The Wall Compatible Finalise Title Name Delete all Video edit Clear Downloaded From Disc-Player.com Philips Manuals...

  • Page 80: Changing The Disc/Title Name

    A warning message appears. To proceed, select { Erase } in the menu and press OK on the remote control. Otherwise, select { Cancel } in the menu and press OK to abort the operation. Downloaded From Disc-Player.com Philips Manuals...

  • Page 81: Finalising The Dvd±R For Playback

    During and press OK to abort the operation. playback, the deleted title will be skipped. Otherwise, select { Cancel } in the menu and press OK to abort the operation. Downloaded From Disc-Player.com Philips Manuals...

  • Page 82: Lock/Unlock The Disc For Playback

    Once the disc is locked, a four-digit pin Blue button option changes to code is required to play the disc or to { Unprotect }. Select this to cancel the unlock the disc. protect setting if required. Protect Unprotect Downloaded From Disc-Player.com Philips Manuals...

  • Page 83: Video Editing

    No Chapter Chapter Title Hide recording easily or set a chapter you wish to hide. Hide Show } / { Hide or show the current chapter. During playback, the hidden chapter will be skipped. Downloaded From Disc-Player.com Philips Manuals...
  • Page 84 – The selection of scenes to hide or show can only be done within a title. – There is a limit on chapter markers that can be stored within a title and the hard disk drive. Downloaded From Disc-Player.com Philips Manuals...

  • Page 85: System Menu Options

    The tools menu appears. Tools Audio language Time search Reset TSB Settings Move to { Settings } and press OK. The system settings menu appears. Language Recording Playback Video output Audio Analogue tuner Digital tuner Setup Downloaded From Disc-Player.com Philips Manuals...

  • Page 86: Language Settings

    – If the selected audio/subtitle language is not available on the disc, the disc’s default language will be used instead. – For some DVDs, the subtitle/audio language can only be changed via the DVD disc menu. Downloaded From Disc-Player.com Philips Manuals...

  • Page 87: Playback Settings

    – The help text and colour button bar will be removed from the display. Front panel Set the front panel display brightness. brightness: { Bright } – Normal brightness. { Dimmed } – Medium brightness. { Off } – Turn off the display. Downloaded From Disc-Player.com Philips Manuals...
  • Page 88 Set the skip interval (minutes : seconds) and press OK to confi rm. The maximum setting is 59 minutes and 59 seconds. In live TV mode, use B key on the remote control to do the skip ahead playback. Downloaded From Disc-Player.com Philips Manuals...

  • Page 89: Video Output Settings

    15 seconds for auto recovery or turn off the progressive scan as below: 1) Disconnect this unit’s ~MAINS from the power supply. 2) Hold down . on this unit whilst reconnecting its ~MAINS to the power supply. Downloaded From Disc-Player.com Philips Manuals...
  • Page 90 NTSC-compatible DVD. Vertical This feature is only available in progressive scan mode. keys to adjust the vertical position of the picture on your TV screen, press OK to confi rm the setting. Downloaded From Disc-Player.com Philips Manuals...

  • Page 91: Audio Settings

    – Disable digital audio input. 5.1-channel recording from the external source is not possible. { On } – Enable digital audio input from the device connected to EXT 2-TO VCR/SAT or DIGITAL/OPTICAL input socket on this recorder. Downloaded From Disc-Player.com Philips Manuals...
  • Page 92 This feature is only applicable to DVD disc playback. { On } – Turn on night mode. { Off } – Turn off night mode. Select this to enjoy the surround sound with its full dynamic range. Downloaded From Disc-Player.com Philips Manuals...

  • Page 93: Analogue Tuner Settings

    OK and the Green button for { Store }. – Press the Blue button on the remote control for { Search }, once you have found the correct frequency/channel, press the Green button for { Store }. Downloaded From Disc-Player.com Philips Manuals...
  • Page 94 { Off } if the reception is poor. { Finetune } – Use keys to adjust the frequency of the TV channel if the reception is poor and press OK to confi rm. Downloaded From Disc-Player.com Philips Manuals...
  • Page 95 4 ORF2 6 TELET – Mark (or unmarked) your favourite channels using the OK button on the remote control. Note: Unmarked channels can only be accessed by pressing the corresponding number button on the remote control. Downloaded From Disc-Player.com Philips Manuals...

  • Page 96: Digital Tuner Settings

    4 ORF2 – Mark (or unmarked) your favourite channels using the OK button on the remote control. 6 TELET Note: Unmarked channels can only be accessed by pressing the corresponding number button on the remote control. Downloaded From Disc-Player.com Philips Manuals...

  • Page 97: Setup Settings

    Use b B keys to move in the entry fi eld. Once complete, press OK. Remote control You only need to set this if you are using more than one Philips remote control in the same room. { DVD } –...
  • Page 98 (for example, recorder is put to pause or stop state). DivX(R) VOD Philips provides you with the DivX® VOD (Video On Demand) registration code that allows you to rent or purchase videos from DivX® VOD service at www.divx.com/vod. All the downloaded videos from DivX®...

  • Page 99: Other Information

    { Comp. video (YUV) } in the menu and sound recordings, may be and press OK to confi rm. infringement of copyrights and constitute a criminal offence. This unit should not be used for such purposes. Downloaded From Disc-Player.com Philips Manuals...

  • Page 100: 5.1 Multi-Channel Recording

    { Settings } and press OK. Move to { Audio } in the menu and press Language Audio output Recording HDMI audio Playback Digital input Video output Sound mode Audio Night mode Analogue tuner Digital tuner Setup Downloaded From Disc-Player.com Philips Manuals...

  • Page 101: Installing The Latest Software

    Visit Philips website ‘www.philips.com/ Installing the latest software support’ to check the availability of the latest software upgrade and download Periodically Philips will issue software the software to a CD-R or USB fl ash upgrades to enhance the user experience. drive...

  • Page 102: Frequently Asked Questions

    How do I set up Titles and Chapters? The recorder automatically creates a new Title every time you start a new recording. You can then add Chapters to these recordings manually or have them automatically inserted at a specifi c intervals. Downloaded From Disc-Player.com Philips Manuals...
  • Page 103 More stations can be transmitted in the same frequency band and additional media services such as city guides, web-content are possible. The number of these free-to-air stations might vary from country to country. Downloaded From Disc-Player.com Philips Manuals...
  • Page 104 (FAT16), Russian, Serbian, which only supports 8 (eight) characters. – The computer may be able to display the Greek Greek full fi le name as the operating system can convert the fi le system. Downloaded From Disc-Player.com Philips Manuals...

  • Page 105: Troubleshooting

    If a fault occurs, fi rst check the points listed below before taking the system for repair. If you are unable to solve a problem by following these hints, consult your dealer or Philips for help. Problem (General) Solution No power.
  • Page 106 SIGNAL’ or ‘X’ appears. video signal received from the external input channel (EXT1, EXT2, CAM1 or CAM2). – If you connect the recorder to a Cable Box/Satellite Receiver, make sure that it is turned on. Downloaded From Disc-Player.com Philips Manuals...
  • Page 107 Unable to play DivX – Ensure that the DivX fi le is encoded according to the movies. ‘Home Theatre Profi le’ with the DivX encoder. – Check that the DivX movie downloaded is a complete fi le. Downloaded From Disc-Player.com Philips Manuals...
  • Page 108 Video partition in the hard disk. Delete to Hard Disk even though some recordings in the Video partition to free up some the data partition still has space before copying additional fi les. enough free space. Downloaded From Disc-Player.com Philips Manuals...
  • Page 109 – Turn off the recorder to standby mode for at least 24 not available. hours. It enables downloading of TV listings data. – Make sure that no timer recording is programmed during this timing, as it will interrupt the EPG downloading. Downloaded From Disc-Player.com Philips Manuals...
  • Page 110 HDMI. See HDMI setting. – Check if the HDMI cable is faulty. Replace a new HDMI cable. – When connecting to a non-HDCP compliant TV, the HDCP warning message will appear only on the analogue video output. Downloaded From Disc-Player.com Philips Manuals...

  • Page 111: Specifi Cations

    Storage Media • Power consumption: 42 W • Hard Disk capacity: • Standby power consumption: < 6 W DVDR5520H - 160 GB DVDR5570H - 250 GB Cabinet • Dimensions (WxHxD): 435 x 67 x 340 mm Tuner/Reception/Transmission • Net Weight: 4.6 kg •...

  • Page 112: Display Panel Symbols/Messages 112~113

    FREE TITLE The video output is in progressive scan quality. An empty title was selected. X TIMER A timer recording has been programmed or is active. ! SAT The recorder is prepared for satellite recording. Downloaded From Disc-Player.com Philips Manuals...
  • Page 113 NTSC DISC A disc with NTSC recordings has been inserted and an attempt was made to record a PAL signal. Insert a new disc or use a disc containing PAL recordings. Downloaded From Disc-Player.com Philips Manuals...

  • Page 114: Glossary

    Joint Photographic subwoofer). Expert Group, which features small decrease in image quality in spite of its high compression ratio. Files are recognised by their fi le extension ‘JPG or JPEG’. Downloaded From Disc-Player.com Philips Manuals...
  • Page 115 Some discs are compatible with more than one region (or ALL regions). S-Video: Produces a clear picture by sending separate signals for the luminance and the colour. You can use S-Video only if your TV has an S-Video In socket. Downloaded From Disc-Player.com Philips Manuals...

  • Page 116: Tv System Guide

    PAL H GREECE PAL B (was SECAM) PAL G GREENLAND NTSC/PAL B GUADELOUPE SECAM K1 GUAM NTSC M GUATEMALA NTSC M NTSC M GUINEA PAL K GUYANA (FRENCH) SECAM K1 HONDURAS NTSC M NTSC M Downloaded From Disc-Player.com Philips Manuals...
  • Page 117 PAL B PAL G SRI LANKA PAL B SUDAN PAL B PAL G SURINAM NTSC M NTSC M SWAZILAND PAL B PAL G SWEDEN PAL B PAL G SWITZERLAND PAL B PAL G SYRIA SECAM B Downloaded From Disc-Player.com Philips Manuals...
  • Page 118 Meet Philips at the Internet http://www.philips.com http://www.philips.com/welcome DVDR5520H DVDR5570H CLASS 1 LASER PRODUCT 3139 245 27901 Philips Customer Care phone numbers: Austria 0810 000205 € 0.07/ min Belgium 078 250 145 € 0.06/ min Czech Republic 800 142840 free Denmark...

This manual is also suitable for:

Dvdr5570h

Table of Contents
