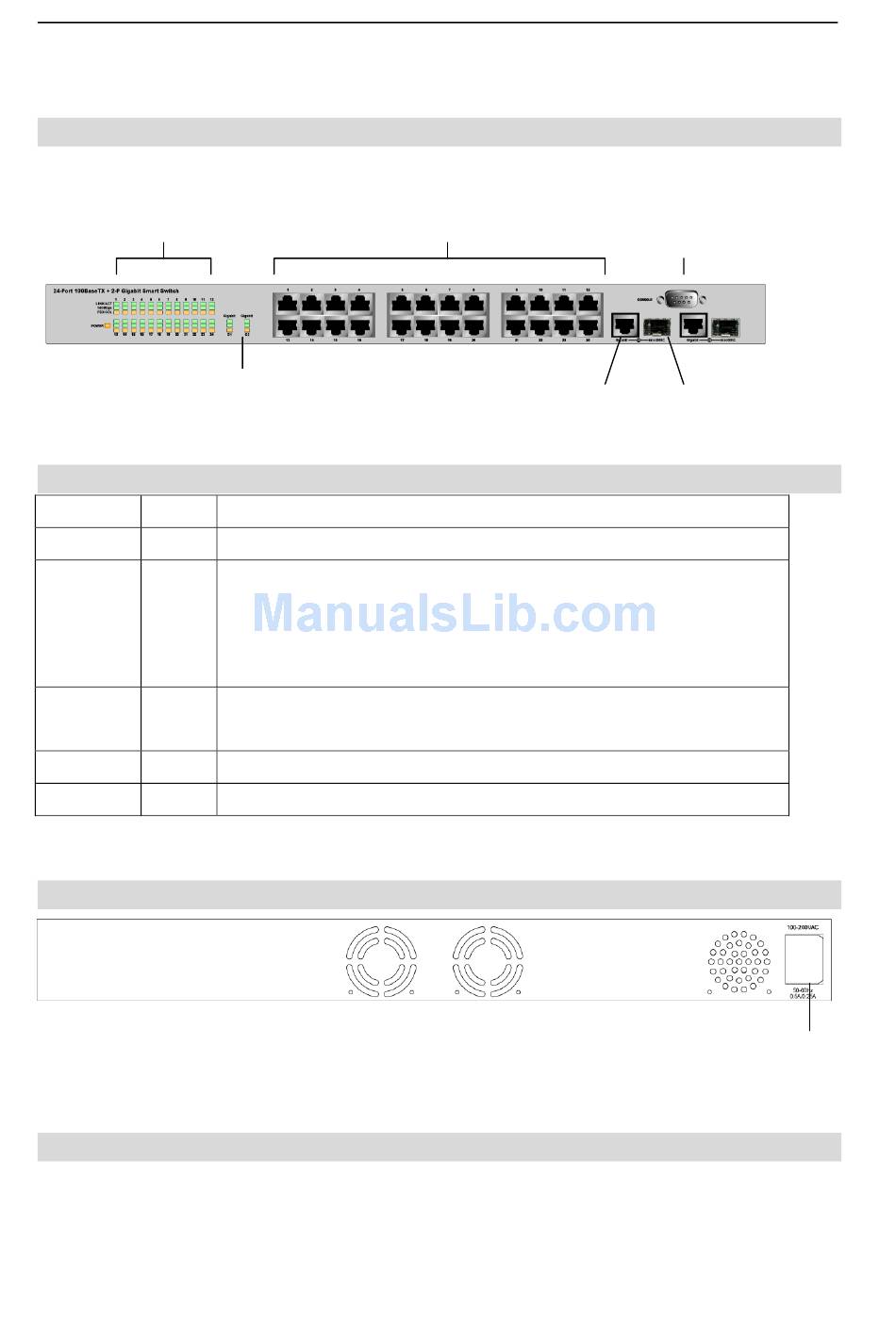

Getting to Know the Switch

Front View

10/100Mbps LEDs
1000Mbps LEDs
LEDs
LEDs Color
POWER Green Lights to indicate the power is being supplied to Switch
LINK/ACT Green Lights to indicate a functional network link through the
FDX/COL Orange Lights to indicate that the port is working at full duplex mode.
100Mbps Green Lights to indicate the port is working in 100Mbps
1000Mbps Green Lights to indicate the port is working in Gigabit mode.

Rear View

The Gigabit Ports

The switch is equipped with two Gigabit ports. They are provided to link to high-speed
network peripheral system or clients at speeds of up to 1000Mbps.
24 10/100Mbps Port
corresponding port (1 through 24) with an attached device.
Blinks to indicate that the Switch is actively sending or
receiving data over that port
Blinks to indicate that the port encounters collision
Gigabit Port
Function
6
Gigabit Smart Switch
Console Port
Fiber Port
Power
