Ruby Tech 24-Port 100BaseTX + 2-P User Manual page 33

Gigabit Smart Switch

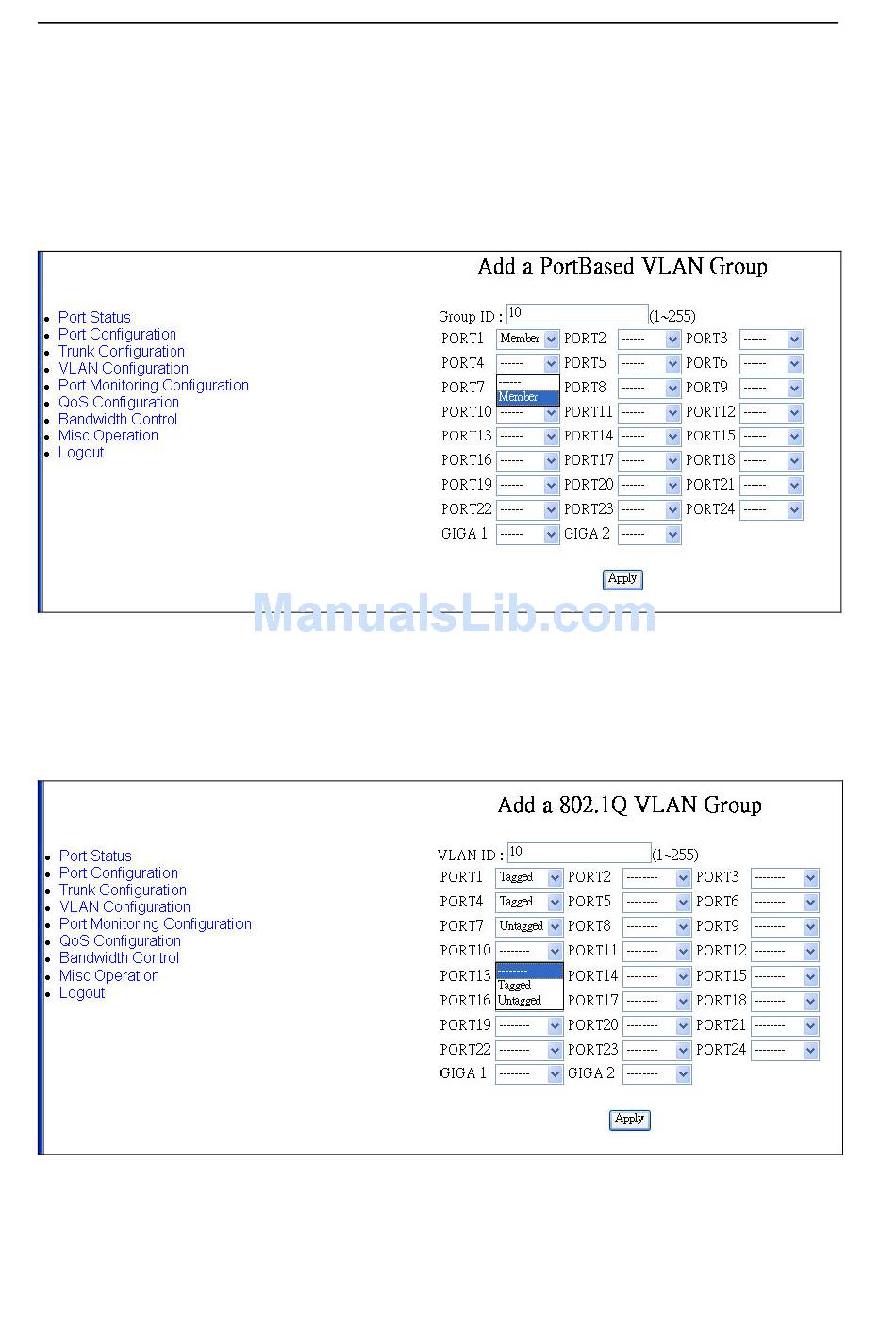

VLAN Configuration
To configure the VLAN function, select PortBased or 802.1Q, and click on Apply,
PortBased
To add a Portbased VLAN group, name the group ID within number 1-255. And select
the members for this group. Click Apply to confirm.
802.1Q
To add a 802.1Q VLAN group, name the VLAN ID within number 1-255. And select the
port member of Tagged or Untagged for this group. Click Apply to confirm.
33
