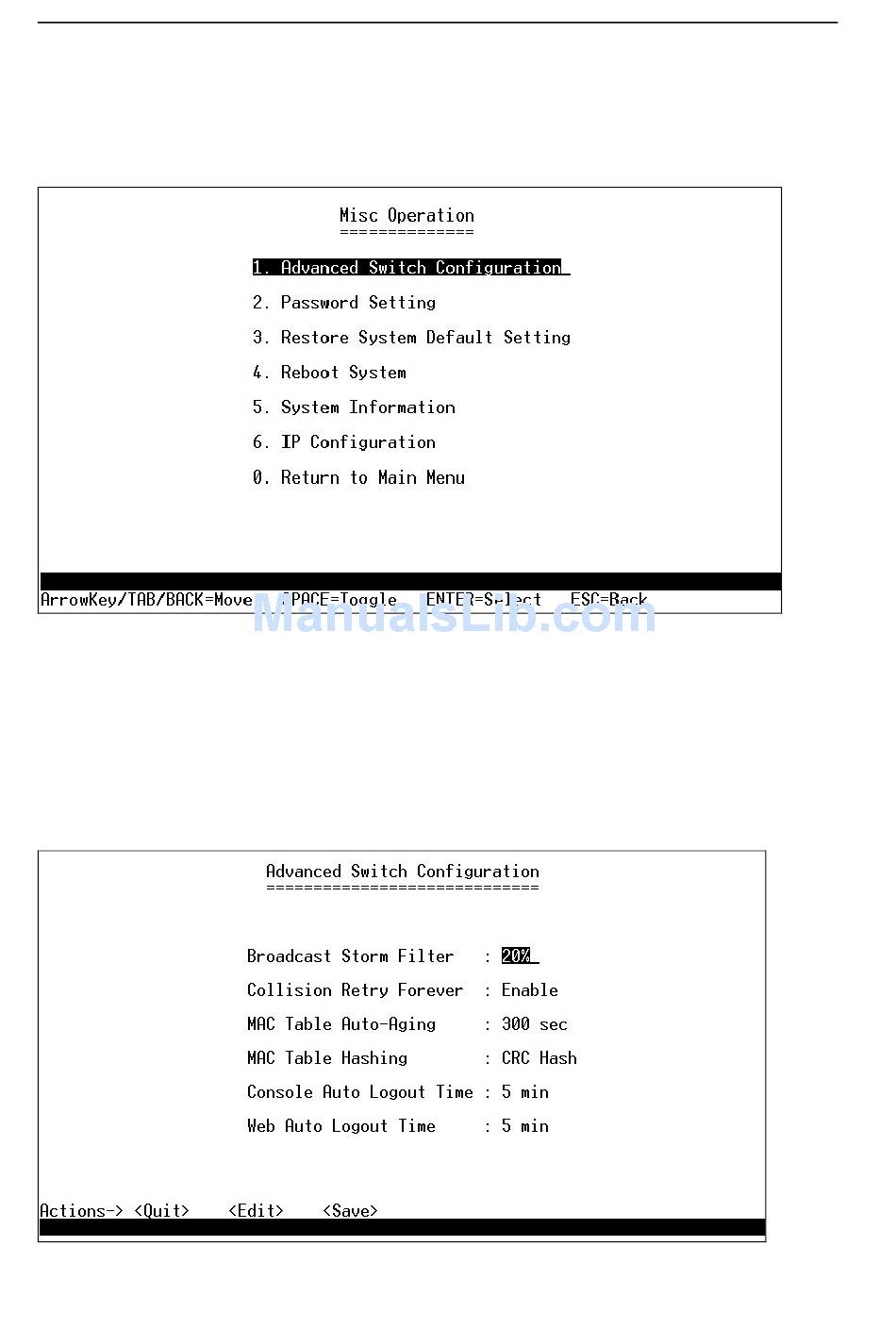

Misc Operation

Misc operation enables you to view and set the Misc operation. Entering into each item
to view and set the configuration.
1. Advanced Switch Configuration
Broadcast Storm Filter—Select 5%, 20% or Off for the value.
Collision Retry Forever—Select Enable or Disable.
MAC Table Auto-Aging—Select 150 sec, 300 sec, or 600 sec.
MAC Table Hashing—Select CRC Hash, or Direct Map.
Console Auto Logout Time—Select Never, 5 min, 10 min, 20 min.
Web Auto Logout Time—Select 5 min, 10 min, 20 min.
26
