AMIGO
REAR DRIVE PRODUCTS
®

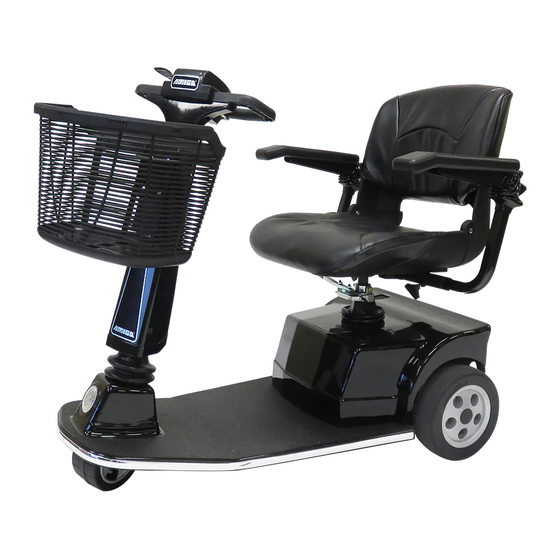

O W N E R ' S & O P E R AT I N G M A N U A L
For Amigo
®
RT Express, Amigo
®
RT Express Junior, Amigo
®
RD,
Amigo
®
EXT350 and Amigo
®
HD450 Models
Serial Number:
Purchase Date:
Re a d T h i s M a n u a l B e f o r e O p e r a t i n g

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT Express and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amigo RT Express

Summary of Contents for Amigo RT Express

  • Page 1 O W N E R ’ S & O P E R AT I N G M A N U A L For Amigo ® RT Express, Amigo ® RT Express Junior, Amigo ® Amigo ® EXT350 and Amigo ®...

  • Page 2: Table Of Contents

    Amigo ® EXT350 Wishing you happiness and good health from all of us at Amigo Company Amigo Mobility International, Inc. (AMI) disclaims any responsibility for personal injury or property damage resulting from the improper or unsafe use of its products.

  • Page 3: Safety First

    Use the following guidelines for the safe operation and use of your Amigo. Should you have any questions about the safe operation of your vehicle, please contact your Amigo Dealer. If you are in doubt about your ability to operate your Amigo, consult your personal physician.

  • Page 4: Location Of Controls

    • Do not drive over or off obstacles more than 1 inch (2.5 cm) high. This could be unsafe and could damage your Amigo. • Do not turn your Amigo at high speeds, as this could result in tipping.

  • Page 5: Adjusting Your Amigo

    Handle controls include: HI/LO Speed Adjusting Knob, Key Extension/Key Switch and Battery Indicator Light. The Key Extension/Key Switch, located on the right side of the Handle Control Cover, will turn the power of the Amigo ON or OFF. Turning it OFF will prevent drainage of batteries and unauthorized use. The speed may be adjusted by turning the HI/LO Speed Adjusting Knob.

  • Page 6: Operating Your Amigo

    Adjust the Speed Adjusting Knob to minimum. (Turn counterclockwise). • Press the Forward Accelerator Lever or the Reverse Accelerator Lever to move the Amigo. To move forward, pull the right side of the Accelerator Lever toward you (Figure 3). You can also move forward by pushing the left side of the Accelerator Lever away from you.

  • Page 7: Sleep Mode

    Rear Drive models with a TouchTron Handle. The Battery Status Gauge will be lit whenever the Key is in the ON position. However, if the Amigo is inactive for more than 25 minutes, the Amigo automatically switches to “Sleep Mode.” This feature substantially reduces power to conserve battery capacity.

  • Page 8: Basic Driving

    Approach an unfamiliar door slowly. Does it have a knob or push bar? Does it open toward or away? Think in terms of using the power of the Amigo to do the work for you. Hold the doorknob or bar in one hand and apply the power with the other hand.

  • Page 9: Safety Warnings

    Note: When batteries are removed, the wheels will not rotate as long as the Manual Brake Release Lever is in the “Normal” position. 7. Place seat and batteries into the trunk. 8. If your Amigo has a Power Seat Lift, we suggest placing a cut out tennis ball or something similar over the Seat Post to protect it.

  • Page 10: Helpful Hints For Everyday Use

    Amigos have an overcharge protection feature so that the batteries can be charged anytime the Amigo is not being used. It is a popular misconception that batteries should be deeply discharged before recharging. This is not the proper procedure for all batteries. They can actually be damaged if they are discharged too deeply before recharging.

  • Page 11: Charging Instructions

    Gauge is lit and blinking, along with a low, chirping of the Horn, at one-minute intervals. The batteries are fully charged when the tallest bar on the far right is blinking. Your Amigo can be charged with the Key in the ON or OFF position.
  • Page 12 Battery Storage All the Amigo Rear Drive models use a battery system that allows the batteries to be removed after they have been disconnected from the platform battery connections. Each battery has a wire assembly with a two-position connector that slides into the connector mounted to the platform.

  • Page 13: Cleaning Instructions

    If you remove your batteries from your Amigo, put them on a surface that cannot be damaged by acid fumes. Whenever a battery is charged and discharged through a cycle, it breathes. The breathing of the battery emits acid fumes into the cloth strap (used to lift the batteries on Rear Drive models) and may mark surfaces it rests on for long periods of time.

  • Page 14: Checking The General Condition

    Lighting The Amigo is equipped with a Headlight, and with optional Taillight and Turn Signals. To replace the Headlight bulb, twist the gray rubber part of the Light Assembly counterclockwise and remove. Bulbs come straight out (do not twist bulbs) of fixture and should be replaced in reverse order.
  • Page 15 The Circuit Breaker is located under the Rear Cover and attached to the positive terminal on the batteries (Figure 11). If you suspect the Circuit Breaker is defective, use a jumper wire between the two terminals of the breaker. If the Amigo runs now, replace the Circuit Breaker.

  • Page 16: Troubleshooting

    When indicating a service problem, the Battery Indicator Light will flash, hesitate for a moment, and then flash again. Follow the code listings below to determine the problem. If the code indicates a service problem, contact your Authorized Dealer or call the Amigo Service Department at (800) 248-9131 for instructions to verify and correct the problem. Code...

  • Page 17: Electromagnetic Interference

    ELECTROMAGNETIC INTERFERENCE RADIO WAVE SOURCES MAY AFFECT POWERED MOBILE VEHICLE CONTROL. Electromagnetic Interference (EMI) From Radio Wave Sources Powered vehicles may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones.

  • Page 18: Wiring Diagrams

    WIRING DIAGRAMS HI/LO Handle Controls...
  • Page 19 TouchTron Handle Controls...

  • Page 20: Exploded Views

    EXPLODED VIEWS RT EXPRESS...
  • Page 21 REAR DRIVE...
  • Page 22 HD450 & EXT350...

  • Page 23: Parts Lists

    PARTS LISTS...

  • Page 26: Warranty

    Brand Product Warranty Effective July 9, 2003 Amigo Mobility International, Inc. (AMI) warranties the original completed unit it manufactures to the original purchaser. Structural components including platform, frame and seat post, have a lifetime warranty against defects in materials and workmanship.
  • Page 27 NOTES Date Remark Date Remark Date Remark Date Remark Date Remark Date Remark Date Remark...
  • Page 28 P h o n e (800) 248-9131 • F a x (800) 334-7274 • www. m y a m i g o . c o m © 2003 Amigo Mobility International, Inc. Amigo is a registered trademark of Amigo Mobility International, Inc. ®...
