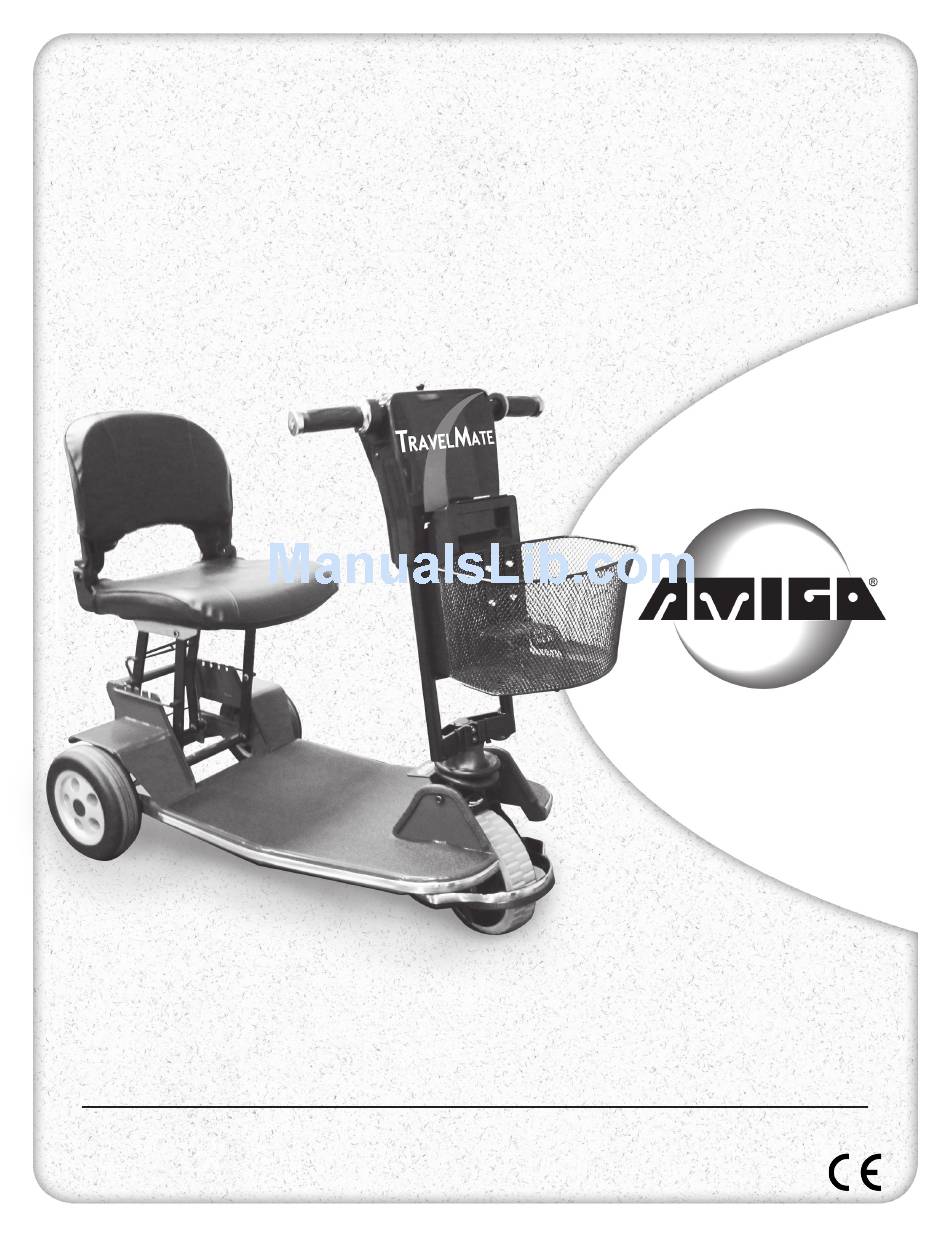

  • Page 1 TRAVELMATE™ Owner Operational Manual Serial Number: Purchase Date: Read This Manual Before Operating...
  • Page 2 Amigo. You will also find helpful hints and tips to help you stay as active as ever. Driving Your Amigo Thank you for choosing the Amigo TravelMate – we Safety Warnings hope you enjoy many adventures together! Battery Information &...

  • Page 3: Safety First

    Use the following guidelines for the safe operation and use of your Amigo. Should you have any questions about the safe operation of your vehicle, please contact AMI. If you are in doubt about your ability to operate your Amigo, consult your personal physician.

  • Page 4: Identification Of Parts

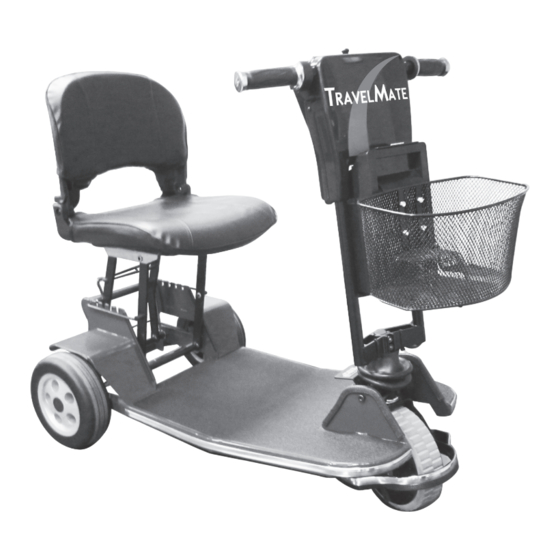

    CONTROLS LOCATION OF Twist grip handle A. Throttle B. ON/OFF key switch C. Battery gauge D. Reverse indicator light E. Forward/reverse switch F. Horn G. Speed range switch H. Battery connector plug IDENTIFICATION OF PARTS 1. Battery case 2. Tiller 3. Hub motor 4. Rear wheels 5. Platform 6.

  • Page 5: Folding/Unfolding Your Amigo

    FOLDING/UNFOLDING YOUR AMIGO Folding REMOVE KEY AND BATTERY CASE BEFORE FOLDING Folding 1. Remove basket. 2. Disconnect battery using the black battery connector plug. Firmly grip handle and lift straight up to unplug (Figure 1). Note: gripping and lifting only the end of the handle will not unplug the battery connection.

  • Page 6: Operating Your Amigo

    Approach an unfamiliar door slowly. Does it have a knob or push bar? Does it open toward you or away from you? Think in terms of using the power of the Amigo to do the work for you. Hold the doorknob or bar in one hand and apply the power with the other hand.

  • Page 7: Safety Warnings

    *Optional lithium batteries require you to take battery pack onboard plane as carry-on luggage. Public transportation When utilizing public transportation, do not sit on your Amigo while it is being lifted onto the vehicle or once the vehicle is in motion.

  • Page 8: Charging Instructions

    It is a common misconception that batteries should be deeply discharged before recharging – this is not true for Amigo batteries. Batteries may be damaged if they are deeply discharged and left sitting.

  • Page 9: Battery Storage

    FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE. IF YOUR BATTERIES ARE DAMAGED AND A LEAK IS APPARENT, CALL YOUR AUTHORIZED DEALER IMMEDIATELY. UNDER NO CIRCUMSTANCES SHOULD YOU TOUCH THE BATTERIES IF THEY ARE LEAKING. TO AVOID DAMAGE TO BATTERIES DURING STORAGE, DO NOT PLACE THEM END-TO-END WITH THE POSITIVE (+) AND NEGATIVE (-) TERMINALS NEXT TO EACH OTHER (FIGURE 6).

  • Page 10: Maintenance

    Don’t use solvents on tires as they cause tire material to break down or become too soft. Platform: The platform of the Amigo is constructed of aluminum and coated with a durable automotive type finish. Use cool water with mild soap to remove dirt and oils. Do not spray the entire vehicle with water. The platform may be waxed with car body wax and buffed by hand with a soft cloth.

  • Page 11: Maintenance

    Circuit breaker replacement instructions An automatic resetting circuit breaker protects the wiring and battery in the event of a short circuit. If your Amigo stops abruptly, wait 10 seconds for the circuit breaker to reset. If the breaker does not reset, check for overloads or short circuits.
  • Page 12 DIAGNOSTIC CODES Diagnostic light locations The Amigo is equipped with a microprocessor controller. This controller has a built-in diagnostic feature that will cause diagnostic light LEDs (located on either side of the battery gauge) to flash a numeric code indicating service issues to aid in diagnosis.

  • Page 13: Electromagnetic Interference

    LISTED BELOW TO MINIMIZE YOUR RISK TO EMI. The driving performance of your Amigo can be influenced by electromagnetic fields, such as those emitted by cell phones and other devices. We recommend the power on your unit be switched off when using such a device.

  • Page 14: Wiring Diagram

    TRAVEL MATE 580003 (WIRING DIAGRAM) FEBRUARY 2013 – PRESENT 1-800-248-9131/ 989-777-0910...

  • Page 15: Exploded View

    TRAVEL MATE 580003 (EXPLODED VIEW) FEBRUARY 2013 – PRESENT 11568 11507 11569 11517 11311 11508 7600 10050 11504 1193 11505 11592 11502 11501 11557 COLUMN BEARING 11534 (NOT TO SCALE) 11481.20 11511.20 11503 11519 11553 11292TM3 10346 1254 11680 11510 11337 11506 4269 11565 1069 10144 11657...

  • Page 16: Parts List

    PARTS LIST TravelMate #580003 – February 2013 to Present Part # Description Qty/unit Part # Description Qty/unit 1040 Ring, Retaining 5/8 OD Shaft 11508 Latch, Seat Adjusting 1069 Washer, Shim, 5/8 ID x 7/8 OD x .016 Thk 11509 Mat, Standard...

  • Page 17: Warranty

    (rather than new parts) for some warranty repairs. Warranty replacement parts are covered for the remainder of the Amigo unit warranty. AMI covers labor warranty at factory headquarters in Bridgeport, MI for the first 60 days of ownership.
  • Page 18 NOTES...
  • Page 19 NOTES...
  • Page 20 H1322011 AMIGO MOBILITY INTERNATIONAL, INC. Improving Lives Through Mobility® 6693 Dixie Highway, Bridgeport, MI 48722-9725 Service: 800-248-9131 or 989-777-0910 • Fax: 800-334-7274 • www.myamigo.com © 2014 Amigo Mobility International, Inc. Amigo® is a trademark of Amigo Mobility International, Inc • 0414-11659 RevE...
