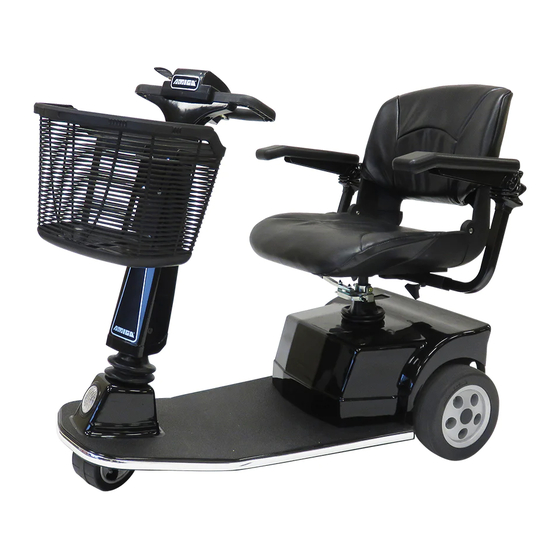

AMIGO OPERATIONAL MANUAL
RT Express, RD and HD
Read this manual before operating your Amigo
Amigo RTX
Amigo RD
Amigo HD
Serial Number:
Date of Purchase:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT Express and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amigo RT Express

Summary of Contents for Amigo RT Express

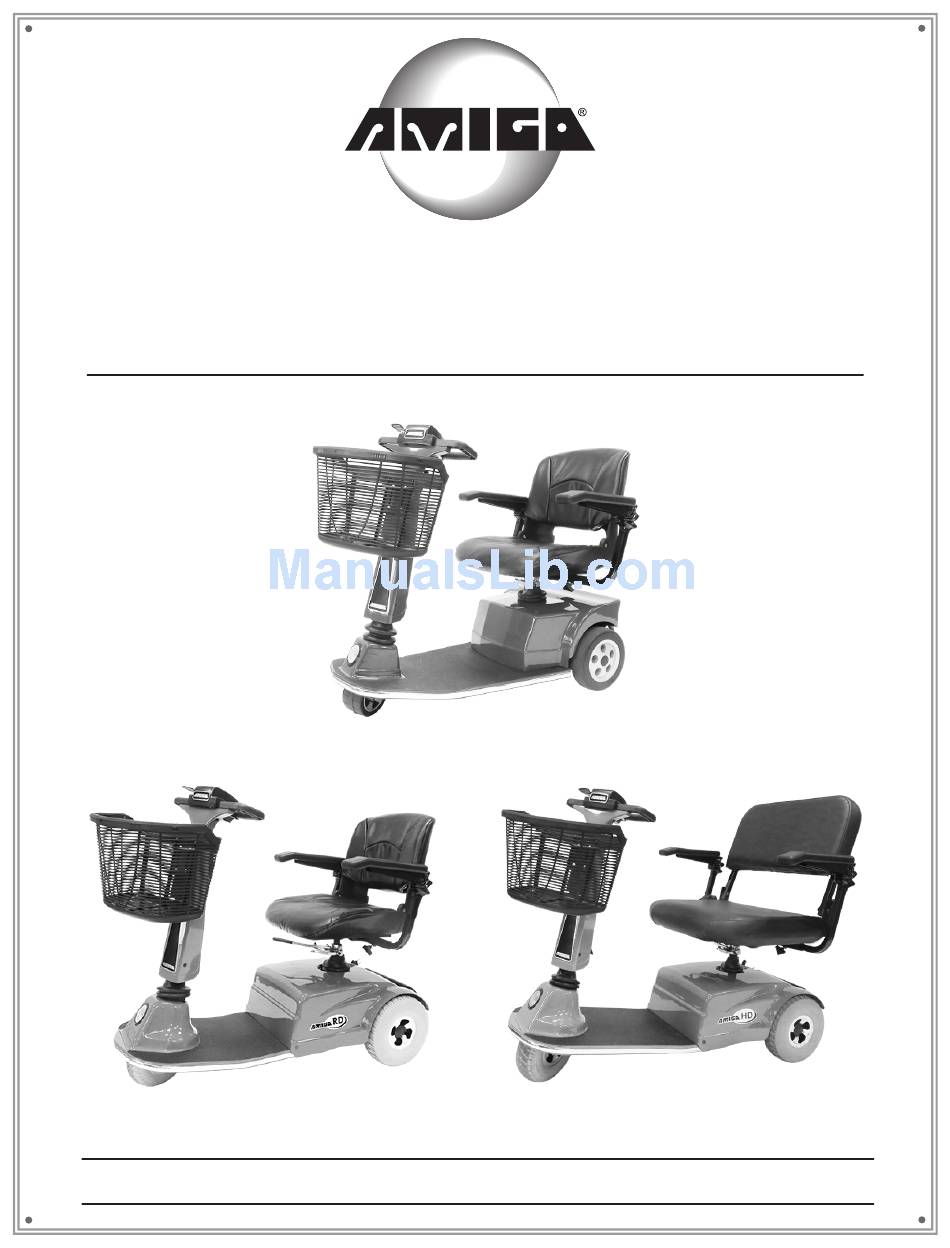

  • Page 1 AMIGO OPERATIONAL MANUAL RT Express, RD and HD Read this manual before operating your Amigo Amigo RTX Amigo RD Amigo HD Serial Number: Date of Purchase:...

  • Page 2: Table Of Contents

    Amigo. We are committed to providing you with personalized, innovative electric mobility products and customer satisfaction, today, and into the future. Wishing you happiness and good health from all of us at Amigo. Amigo RD Amigo HD Sincerely, Amigo Mobility International, Inc. (AMI) Amigo Mobility International, Inc.

  • Page 3: Safety First

    • Do not drive over or off obstacles more than 1 inch (2.5 cm) high. This could be unsafe and could damage your Amigo. • Do not turn your Amigo at high speeds, as this could result in tipping.

  • Page 4: Location Of Controls

    Handle controls include: speed adjustment buttons, ON/OFF key switch, battery status gauge, speed level gauge and horn button. The ON/OFF key switch, located on the right side of the handle control cover, will turn the power of the Amigo on or off. Turning off the Amigo will prevent drainage of batteries and unauthorized use.

  • Page 5: Adjusting Your Amigo

    The armrest width is determined by loosening the armrest knobs and tightening them when the arms are at the desired width. Figure 6 Flip-Up Armrest By pulling up on the end of either armrest, the armrest will flip back for easy transfer in and out of the Amigo. www.myamigo.com...

  • Page 6: Operating Your Amigo

    • To stop, release the accelerator lever and the vehicle will come to a gradual stop. Turning the Amigo off using the key switch may be used for emergency stops.

  • Page 7: Riding Your Amigo

    Approach an unfamiliar door slowly. Does it have a knob or push bar? Does it open toward or away? Think in terms of using the power of the Amigo to do the work for you. Hold the doorknob or bar in one hand and apply the power with the other hand. If it is a self-closing door, you can go through allowing the door to close behind you.

  • Page 8: Helpful Hints For Everyday Use

    7. Place seat and batteries into the trunk. 8. If your Amigo has a power seat lift, we suggest placing a cut-out tennis ball or something similar over the seat post to protect it. Transport Your Amigo With a Lift-All®...

  • Page 9: Battery & Charging Information

    20 seconds, then it will turn solid color. The batteries are fully charged when the bar on the far right is blinking. Your Amigo can be charged with the key in the ON or OFF position. The indication will display only while in the charging mode (when power cord is plugged into AC outlet).

  • Page 10: Battery Storage

    Figure 13 If you remove your batteries from your Amigo, put them on a surface that cannot be damaged by acid fumes. Whenever a battery is charged and discharged through a cycle, it breathes. The breathing of the battery emits acid fumes into the cloth strap (used to lift the batteries on rear drive models) and may mark surfaces it rests on for long periods of time.

  • Page 11: Cleaning Instructions

    Minimum maintenance should prevent unnecessary repairs. You can get years of dependable operation if you follow the suggested maintenance schedule. Check the following: Daily Charge batteries daily when the Amigo is used. Charge the battery until fully charged to ensure proper battery operation. Extended charging is good for the batteries and will not overcharge them. Monthly • Check and clean battery terminals and the wire connections as needed with a light piece of emery cloth or brush and mixture of...
  • Page 12 Lighting The Amigo is equipped with a headlight, and with optional tail lights and turn signals. To access the bulb on a standard headlight, pull the headlight lens out of the cover, by gently prying the rubber seal. To access the bulb on a high intensity headlight, remove two screws holding the lens assembly in place.

  • Page 13: Troubleshooting

    Serial Number Location For operation or service questions, call the Amigo service hotline at (800) 248-9131 or (989) 777-0910, 8 a.m. to 6 p.m. Monday through Friday, email service@myamigo.com or visit myamigo.com and click on the chat tab in the bottom right corner of the page.
  • Page 14 Diagnostic Codes Diagnostic light location The Amigo controller has a built-in diagnostic feature that will cause the diagnostic LED lights (Figure 21) to flash a numeric code, indicating service issues to aid in diagnosis. When indicating a service problem, the diagnostic lights will flash, hesitate for a moment, and then flash again.

  • Page 15: Electromagnetic Interference

    ELECTROMAGNETIC INTERFERENCE RADIO WAVE SOURCES MAY AFFECT POWERED MOBILE VEHICLE CONTROL. Electromagnetic Interference (EMI) From Radio Wave Sources Power-operated vehicles (POV) may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones.

  • Page 16: Wiring Diagrams

    WIRING DIAGRAMS Hi/Lo Handle Controls (for RD, RTX and HD models) (800) 248-9131 • (989) 777-0910...

  • Page 17: Wiring Diagrams

    WIRING DIAGRAMS TouchTron Handle Controls (for RTX and RD models only) www.myamigo.com...

  • Page 18: Exploded Views & Parts Lists

    EXPLODED VIEW RT EXPRESS (800) 248-9131 • (989) 777-0910...

  • Page 19: Parts List

    PARTS LIST #690000 RT EXPRESS PARTS LIST Item Part# Description Qty/Unit Item Part# Description Qty/Unit 1180 Screw 1/4-20 x 1.00 hx hd 9307.20 Battery 12v 17a 1192 Washer .281 ID .63 OD .06 flat 10011 Bumper trim RTX mini 1253...
  • Page 20 EXPLODED VIEW (800) 248-9131 • (989) 777-0910...
  • Page 21 PARTS LIST #310000 RD PARTS LIST Item Part# Description Qty/Unit Item Part# Description Qty/Unit 1180 Screw 1/4-20 x 1.00 hx hd 9248 Arm lt remove 210203 Armpad molded single w/screws 1192 Washer .281 ID .63 OD .06 flat 9766 Wire batt to quick disc 1253 Nut 5/16-18 hex keps 10050...
  • Page 22 EXPLODED VIEW (800) 248-9131 • (989) 777-0910...
  • Page 23 PARTS LIST #650000 HD PARTS LIST Item Part# Description Qty/Unit Item Part# Description Qty/Unit 1180 Screw 1/4-20 x 1.00 hx hd 9766 Wire batt to quick disc 1192 Washer .281 ID .63 OD .06 flat 10050 Bearing headset 1-1/8" 1253 Nut 5/16-18 hex keps 10289.20 Basket HC...

  • Page 24: Amigo Mobility Healthcare Warranty

    Customer Satisfaction Complete satisfaction with your Amigo is our main goal. If you are not satisfied with any maintenance or repair work completed by a local Amigo dealership, please follow these two steps: 1. Review your concerns with the dealership’s management (service manager or general manager). In most cases, a satisfactory solution is found.
  • Page 25 MAINTENANCE HISTORY Date Note...
  • Page 26 Date Note...
  • Page 27 Date Note...
  • Page 28 Improving Lives Through Mobility® since 1968 AMIGO MOBILITY INTERNATIONAL, INC. 6693 Dixie Highway, Bridgeport, MI 48722-9725 Phone (800) 248-9131 or (989) 777-0910 • Fax (800) 334-7274 • www.myamigo.com ® © 2016 Amigo Mobility International, Inc. • Amigo is a registered trademark of Amigo Mobility International, Inc. 0216-0878 revB...
