Criterion CCR15CE1B User Manual

1.5 cu.ft. compact refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

1.5 Cu.Ft. Compact Refrigerator
MODEL: CCR15CE1B

Advertisement

Table of Contents
loading

Related Manuals for Criterion CCR15CE1B

Summary of Contents for Criterion CCR15CE1B

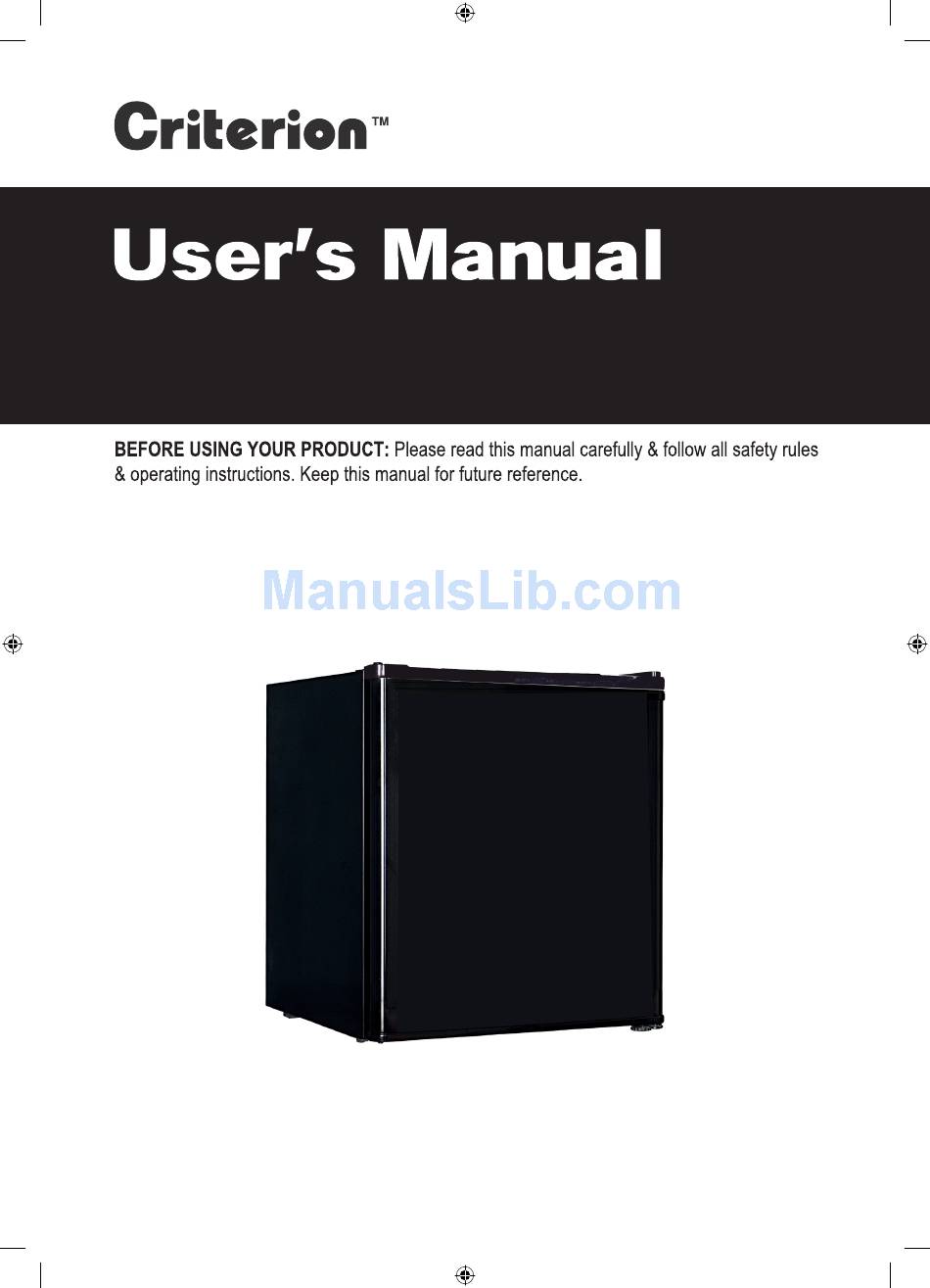

  • Page 1 1.5 Cu.Ft. Compact Refrigerator MODEL: CCR15CE1B...

  • Page 2: Installation

    Installation INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption.
  • Page 3 INSTALLATION 2. Remove the top right hinge cover. 3. Undo the screws. Then remove the hinge bracket. 4. Remove the top left screw cover. 5. Move the core cover from left side to right side. And then lift the door and place it on a padded surface to prevent it from scratching.
  • Page 4 INSTALLATION 6. Remove the screws and bottom hinge. Then remove the adjustable feet from both side. Unscrew 7. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. Unscrew Screw 8. Refit the bracket fitting the bottom hinge pin.
  • Page 5 INSTALLATION 9. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge. 10. Insert the hinge bracket and screw it to the top of the unit. 11.

  • Page 6: Levelling The Unit

    INSTALLATION Levelling the Unit To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’...

  • Page 7: Product Overview

    Product Overview Font View Ice Box Adjustable Door Racks Shelf Thermostat Control Dial (at rear side) Levelling Feet Rear View Thermostat Control Dial (at rear side)

  • Page 8: Operation

    Operation Switching On Your Unit 1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are six settings, of which position 5 is the coldest and position 0 turns the unit off. 2.

  • Page 9: Shopping For Chilled Foods

    Shopping for Chilled Foods • Take a quick look at the chilled food package and make sure it is in perfect condition. • Try to keep chilled food together whilst shopping and on the journey home as this will help to keep the food cold.

  • Page 10: Cleaning The Interior And The Exterior Of The Unit

    Cleaning Defrosting Frost might build up in the unit after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included). Do not use a metal or sharp instrument to scrap away the frost, nor should you use any electrical appliances to aid defrosting.

  • Page 11: Maintenance

    Maintenance Care When Handling / Moving the Unit Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface. Servicing The unit should be serviced by an authorised engineer and only genuine spare parts should be used.

  • Page 12: Safety Warnings

    Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual.
