Motor Housing And Burr Assembly Parts - KitchenAid Pro Line 4KPCG100ER1 Parts List

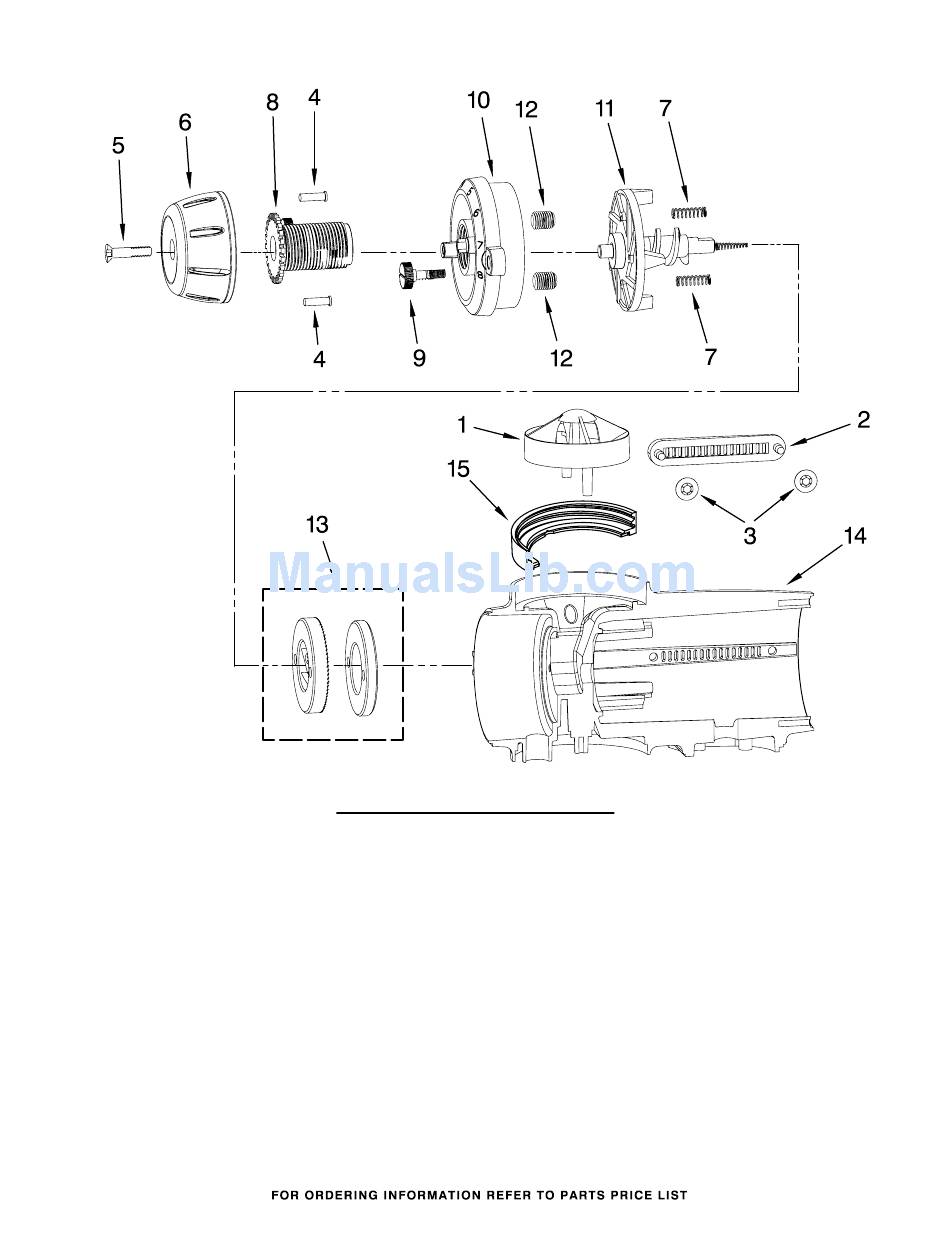

MOTOR HOUSING AND BURR ASSEMBLY PARTS

For Models: KPCG100__1, 4KPCG100__1
Illus. Part
No. No. DESCRIPTION
1 4176695 Guard, Finger
2 4176696 Vent
3 4176713 Lockwasher
4 8212392 Pin, Detent
5 4176754 Bolt, Knob
6 4176718 Knob, Selector
7 8212394 Spring, Detent
8 4176716 Screw, Adjustment
9 4176705 Screw, Bezel
10 4176697 Bezel, Gearbox
11 4176694 Auger Assy.
12 4176712 Screw, Socket
13 4176702 Burr Assy.
14 Housing, Motor
4176698 Pearl Metallic
8212151 Nickel Pearl
8212320 Empire Red
W10217611 Onyx Black
15 W10223450 Insert, Thread
Lock
3
8212130
