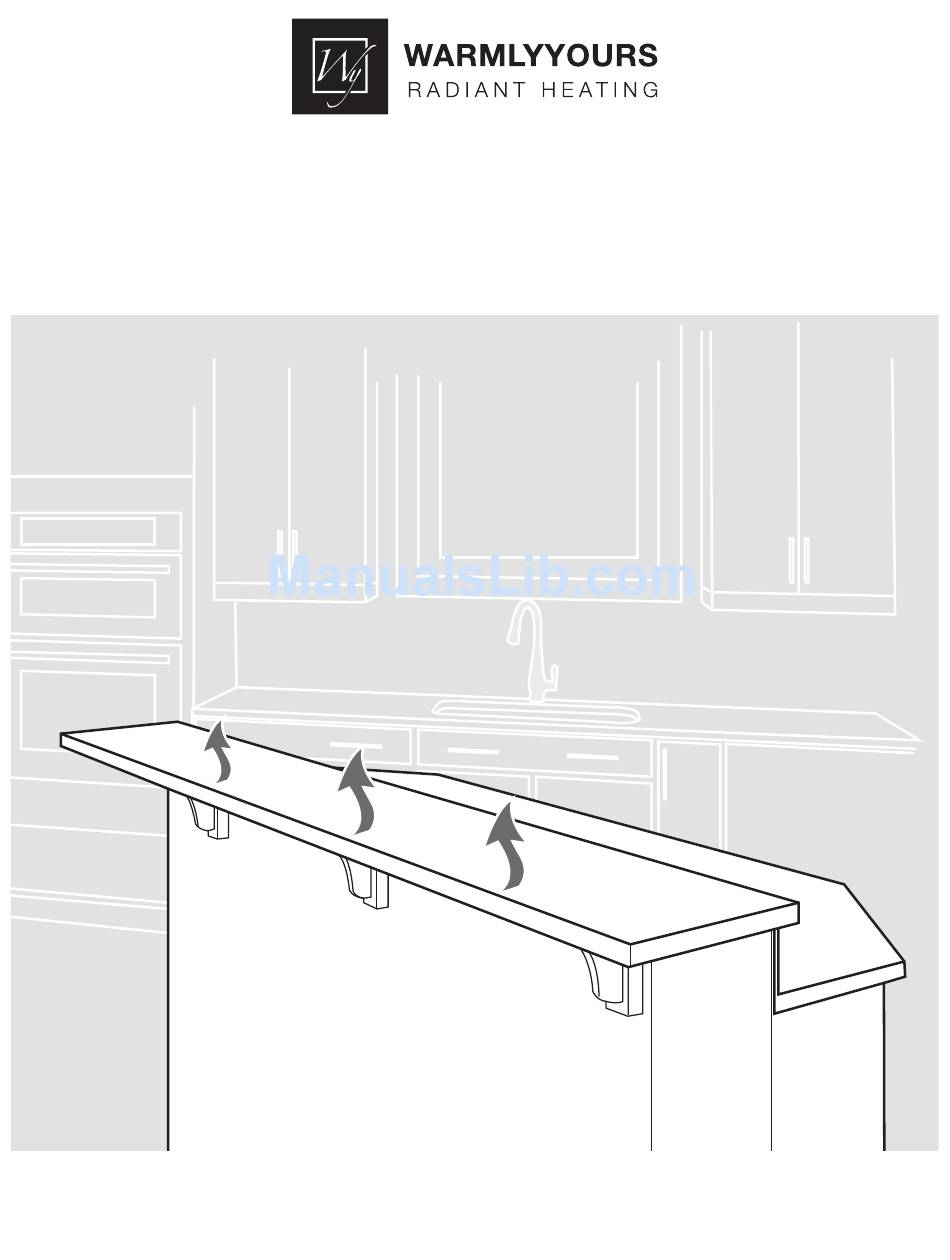

Page 1: Installation Instructions
WarmlyYours FeelsWarm® Countertop Heater Installation Instructions Free Design Service • 24/7 Installation Support • (800) 875-5285 • www.WarmlyYours.com... - Page 2 However, the heater should be inspected periodically for damage or peeling. If either is present, immediately disconnect the power supply and contact WarmlyYours for technical support. Do not pull on the electrical cord connecting the heater to the power supply.
-
Page 3: Package Contents
If Surface Prep Kit is used: • Protective eyewear --REQUIRED • Gloves and appropriate clothing • Pencil • Dropcloth or other material to protect carpet or flooring under the countertop For large heating elements, WarmlyYours recommends having two people perform the installation. -
Page 4: Kit Contents
• Drop cloth or other material to protect carpet or flooring under the countertop If the surface is not suitable for bonding, then WarmlyYours FeelsWarm® Surface Prep Coating will need to be applied to the surface prior to installing the heater. - Page 5 3. Wipe the surface with isopropyl alcohol prior to installing the heater. 4. Attach the heating element to the counter following the instructions in this manual. Customer Support For questions or support, contact WarmlyYours at (800) 875-5285 or go to WamlyYours.com.
- Page 6 Installation Instructions SECTION 2 2. PERFORM A TEST INSTALLATION OF THE HEATER BEFORE STARTING A. After the surface is prepared, conduct a preliminary fit by leaving the white release liner on the heater and holding the heater under the counter to ensure it fits as expected and that there are no conflicts with supports, doors, or other items. •...
- Page 7 Installation Instructions SECTION 2 3. DRILL CABLE HOLE IN CABINET A. Evaluate how the cable from the heater will reach the outlet inside the cabinet. Consider how the wire will feed and where an access hole needs to be located in order to route the heater cable within the framework of the cabinet. B.
- Page 8 Installation Instructions SECTION 2 4. ATTACH THE HEATING ELEMENT A. With the heating element lying on the top of the counter with the white release paper facing up, peel the white release liner off the heater— do not discard. B. Reduce the size of the release liner into manageable pieces by ripping the white release paper into smaller sections, approximately 6”...
- Page 9 IMPORTANT: If the WarmlyYours FeelsWarm® system to be installed involves multiple transformers and/or multiple heating elements, each transformer plug and each heating element cable will have a numerical tag with matching code numbers.
- Page 10 Installation Instructions SECTION 2 7. INSTALL THERMAL CONTROL UNIT The Thermal Control Unit (TCU) permits the temperature to be adjusted down from the automatic maximum temperature of the heater and provides a quick method for turning the unit on or off. Plug the transformer into the TCU. Then, plug the power cord from the TCU into a 120V outlet.
- Page 11 SECTION 2 8. SECURE WIRES Your WarmlyYours FeelsWarm® Countertop Heater is supplied with a packet of Velcro patches to secure the wires inside the cabinet. Because the length of the wires provided often exceeds what is needed, WarmlyYours recommends securing the wires to keep them out of the way of normal activity.
