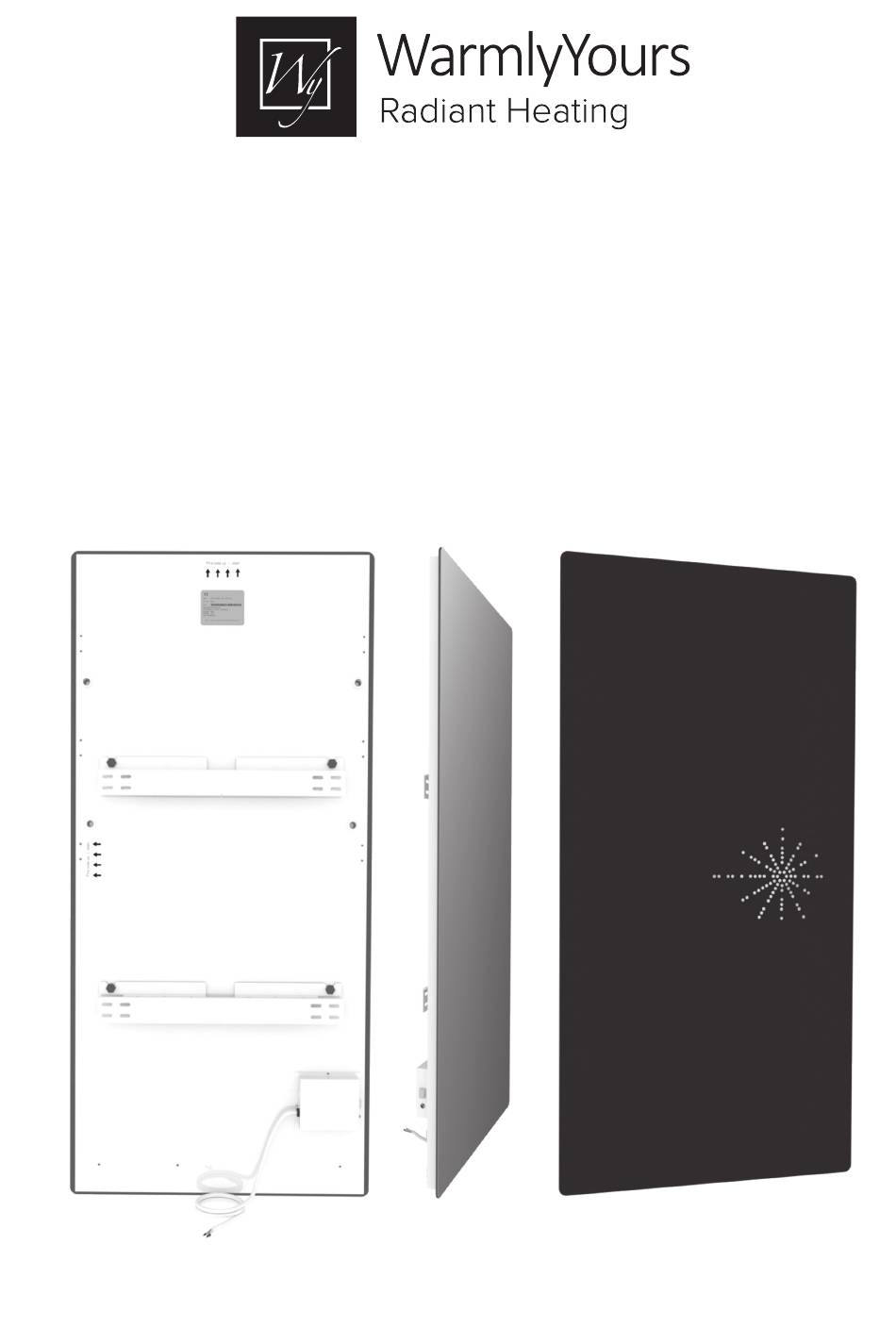

Page 1: Installation Manual
LAVA ® Infrared Heating By WarmlyYours Installation Manual Read all instructions before installing or using this heater. - Page 2 GENERAL ETHERMA LAVA ® design infrared heaters are versatile direct This heating device is not intended for the use by persons (in- heating devices. They are characterized, in particular, by their cluding children) with a limited physical, sensory or mental elegant design, ease of installation and operation, high relia- capacity or with a lack of experience and knowledge.
-
Page 3: Scope Of Delivery | Packaging
NOTES IMPORTANT NOTES: › Protective areas must be observed in accordance with DIN VDE 0100, part 701, when installing the device in bathrooms. › LAVA infrared heating devices comply with relevant safety ® › Minimum distances must be adhered to. requirements. -
Page 4: Wall Mounting
WALL MOUNTING INSTALLING THE INFRARED HEATER: Please inspect the power supply cord to the heater and the surface before installation. These must not show any signs of damage. Fasten hexagon bolts loosely on the rear side of the device. 1. Select a position for the mounting brackets according to the illustrations on page 5, depending on the product type. 2. - Page 5 HOLE CLEARANCES FOR HORIZONTAL WALL INSTALLATION Connection line Connection line Type Installation Width A Distance B Distance C Mounting brackets ® LAVA 2.0 250 W horizontal 24.8" (630 mm) 16" (406 mm) 11.25" (286 mm) ® LAVA 2.0 500 W / DYL 350 W horizontal 24.8"...
-
Page 6: Electrical Connection
LAVA MOUNTING LOCATION Neutral White Black Ground LAVA RADIANT PANEL BLACK POWER WHITE SWITCH GREEN HOT LOAD (black or blue) NEUTRAL LOAD (white or brown) GROUND (green or yellow) 2” x 4” ELECTRICAL BOX Installation Support • (800) 875-5285 • www.WarmlyYours.com... -
Page 7: User Instruction
ATTENTION: Prior to cleaning, please ensure that the LAVA® glass radiators are turned off at the circuit breaker panel and that the unit is at room temperature! SPARE PARTS Please contact WarmlyYours for any replacement parts required. Only use original spare parts. -
Page 8: Technical Data And Accessories
TECHNICAL DATA AND ACCESSORIES TECHNICAL DATA • Voltage: ....120 V • Power:: ....250-1000 Watt • Body: ......steel case, white, powdercoated • Surface: ....6 mm safety glass (ESG) • Protection: ....IP24 • Protection class: ..I • Connection: ....hot, neutral, ground • Approvals: ....cULus to UL2021 & CSA c22,2 no46 •... - Page 9 If you follow these installation and operating instructions, your LAVA® glass radiator will provide many years of trouble free enjoyment! WARMLYYOURS USA 590 Telser Rd, Lake Zurich, IL, 60047...
