  • Page 1 10801/60fps Dynamic Waterproof F2.8 housing and HD recording Glass-lens 8-Megapixel digital zooming lens-protected Ultrawide angle shooting design Independent stop Mounting interface Cyclic recording Remote controller Laser indicator for housing-free key for blinded (optional) inverse shooting with back clips and usage operations binding interfaces Built-in...

  • Page 2: Table Of Contents

    Contents Precautions ..............................3 Preface ................................4 Warrenty ................................4 Overview ................................5 Features ................................6 Structure ................................8 Use and Installation ............................9 Preparations ..............................10 Parameter Settings ............................13 Operations ..............................19 Storage and Play of a File ..........................29 Installation and Use of a Backup Battery (D23) ..................

  • Page 3: Precautions

    Precautions When using the SD21 video camera, adhere to the following precautions: 1. Do not drop, knock or shake the video camera. 2. Do not put the video camera close to an object that generates strong magnetic field, such as a magnet or a motor.

  • Page 4: Preface

    Superior recording performance thanks to dynamic HD shooting technologies, providing you with exciting video shooting experience This manual describes how to install and use the SD21 video camera. It also provides information about use, operations, installation precautions, and technical specifications of the SD21 video camera. Before using the SD21 video camera, read and understand this manual carefully and keep it properly for future use.

  • Page 5: Overview

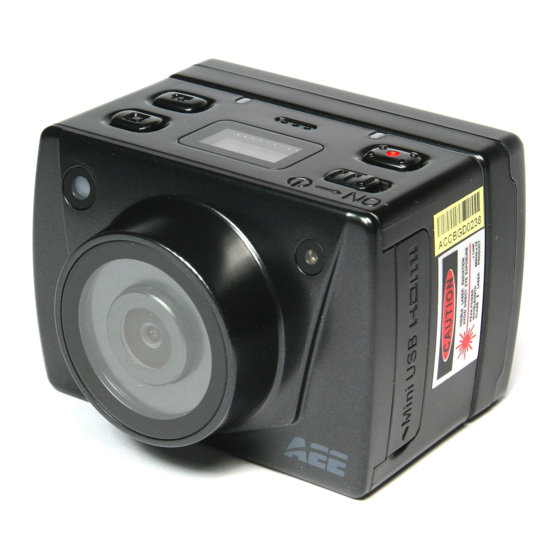

    Overview The SD21 video camera is a compact high-end HD digital camera intended for professional applications. It provides the following functions:  Performs industry-leading HD digital shooting.  Stores voice data.  Displays images in real time.  Performs video recording.

  • Page 6: Features

    Features The SD21 video camera has the following features:  − Provides 170° ultra-wide-angel f/2.8 lens. 720P (1280x720) 25 frames/second  Provides a special-purpose HD lens, which − WVGA (848x480) 100 frames/second supports 1080P, 1080i, 960P, 720P and 480P −...
  • Page 7   A wireless remote controller can remotely Provides a 1/4-inch general-purpose interface control the SD21 video camera for video recording, to facilitate extension of accessories.  stopping, and shooting. Provides a unique code Provides multiple types of sport accessories paring function to avoid interferences from other for sport recording.

  • Page 8: Structure

    Structure 1. TFT screen 2. Menu key 3. Upward key 4. Leftward 5. Downward key 6. Playback key 7. OK key 8. TFT screen lock 9. Wrist strap hole 10. Buzzer 11. SD card slot 12. Rightward key knob 13. AV out/Audio in 14. Record key 15.

  • Page 9: Use And Installation

    1. Installing the SD21 video camera The SD21 video camera can be hand-held or used with hand-free accessories. It can be installed at your desired place or, after being equipped with a waterproof housing, placed in water for shooting underwater sceneries.

  • Page 10: Preparations

    Power symbol: The (power supply) icon is displayed in the upper-right corner. When the system is working, this icon is constantly on. If this icon disappears, it indicates the SD21 video camera is in power-off or standby state. Video recording duration: In the medium row of the LCD segmen screen displays the duration of the current recording video, for example, 005:20.
  • Page 11 icon is lit with the green indicator on the left side blinking slowly. When the video camera is not connected to a computer, this icon is not displayed. TF card capacity indication: The (TF card capacity) icon is displayed in the bottom-right corner, indicating the available space of the TF card.
  • Page 12 The Micro SD card must be a high-speed card. Before video/audio recording and shooting pictures, format the Micro SD card on the SD21 video camera. If a Micro SD card has been used on other devices, it should also be formatted on the SD21 video camera for normal use.

  • Page 13: Parameter Settings

    Parameter Settings To set parameters, perform the following operations: − In the preview mode under power-on state, press the M key to display the menu interface. − Press the < or > key to choose a left or right option from the menu interface. −...
  • Page 14 The following example shows the same picture in different views: Comparison of the same scenery in different view angles Broad (Wide) view Medium (Middle) view Narrow view The preceding views apply only to the 1080P or 1080i HD video recording and photo modes. You can select a view angle as you desire.
  • Page 15 OFF, the video camera does not display the date and time during video recording. (The display time function is unavailable for video recording in 1080i, WVGA/100fps, and WVGA/120fps modes.) Note: In audio recording mode, press the Record key once to start audio recording. The audio recording duration is displayed in the upper-right corner of the TFT screen, and the green indicator blinks slowly.
  • Page 16 Auto cont. capture: Pictures is captured at intervals of 1, 2, 3, 5, 10, 20, 30 or 60 seconds until the Stop key is released, the memory card is full, or the battery power is low. Timed shooting: Select the reverse-counting time for auto-shooting (This parameter can be set to OFF, 3s, 5s, or 10s), and choose Timed Shooting and press the M key to return to the preview state.
  • Page 17 During time counting, the system restarts counting time if any tasks or operations are carried out. During the standby period, the SD21 video camera starts working if the Video, Photo, or Stop key is pressed. In factory setting, this parameter is set to OFF.
  • Page 18 Note: If no memory card is inserted, the video camera formats its built-in memory. If a memory card is inserted, the video camera formats the memory card rather than its memory. Recover factory setting (default): This parameter restores all parameter settings to the factory settings. After you set this parameter, the system displays all the menu options in English.

  • Page 19: Operations

    2. Powering on the SD21 Video Camera Turn the power switch to the ON position to power on the SD21 video camera. At this time, the red indicator is on, and the SD21 video camera changes to the preview state.
  • Page 20 addition, the duration for video recording stops on the LCD segment screen, and the system restores to the preview state. In cyclic recording mode, the system automatically saves a file every 15 minutes. (The cyclic recording function and the pre-video function cannot be simultaneously enabled.) If the D23 backup battery is provided and fully recharged, the video camera can continuously record video programs for about four hours and record audio programs for about seven hours.
  • Page 21 Press the M key to exit the setup interface. At this time, if you press the Photo key, the SD21 video camera takes a picture at each interval until you press the Stop key to cancel shooting.
  • Page 22 Press and hold the Stop key for two seconds to directly change the video camera to the ready state for audio only. 6. Playing Back a File You can view the recorded audio/video and photo files on the SD21 video camera. To view a file, perform the following operations: ­...
  • Page 23 Description Description Turns up the sound volume. Turns down the sound volume. < Plays a file in slow rewind mode > Plays a file in slow forward mode when you when you press and hold this key press and hold this key for a long time. for a long time.
  • Page 24 < Moves a picture rightwards. > Moves a picture leftwards. Resets and plays a file from the zoom-in mode, switches between beginning when your press this key. the + and - keys. Returns to the playback interface when you press this key again. 3) Playing an Audio File To play an audio file, perform the following operations: On the video &...
  • Page 25 A protected file cannot be deleted, but can be deleted by a formatting operation. 3) Automatically Playing a File In the photo file interface, the SD21 video camera can automatically play photos in sequence after every five seconds.
  • Page 26 9. Wake up SD21 in Standby Mode The SD21 video camera enters preview mode after power-on by default. If no task or operation is carried out within the preset standby time, the system automatically enters the standby mode to save power. To wake up...
  • Page 27 12. Connecting the SD21 video camera in USB Mode a. If no battery is built in the SD21 video camera, connect the SD21 video camera to a USB power adapter to implement all the functions. The operation prompts are displayed on the LCD segment screen and the TFT screen.
  • Page 28 When any operations are performed on the TFT screen, you can enable or disable prompt tone as following. Press the M key when the SD21 video camera is in the preview state. Then press the > or < key to display the Setup menu.

  • Page 29: Storage And Play Of A File

    TV set AV interface AV data cable 1. After connecting to a monitor by HDMI cable, select TV set HDMI the proper input source for the SD21 video camera to SD21 HDMI interface play files. interface HDMI data 2. When using an AV cable, connect the terminals of the...
  • Page 30 AV data cable to the ports in the same color on the TV set or monitor. Ensure that the TV set or monitor is properly grounded. 3. Adjust the parameter settings of the monitor to achieve the optimal display effect.

  • Page 31: Installation And Use Of A Backup Battery (D23)

    3. Recharging the Battery Use a USB cable to connect the power unit of the SD21 video camera to the USB port of the D23 battery to recharge it; or connect a PC to the D23 battery using a USB cable for recharging, as shown in the following figure.
  • Page 32 Not: 1. Do not remove the backup battery randomly. 2. If the SD21 video camera is not used for a long time, recharge the battery every six months to extend the battery life. 3. It takes about 2 hours to fully charge this backup battery by the charger.

  • Page 33: Power Supply

    Power Supply The SD21 video camera uses a power unit in compliance with the following certifications. CE mark GS mark UL mark C-TICK mark E.U. Power Certification Germany Power Certification U.S. Power Certification Australia Power Certification CCC mark PSE mark...
  • Page 34 Dedicated waterproof SD21 video TFT monitor Remote Standard Backup Flat-mounted Flat-surface L-shaped helmet enclosure camera controller battery battery assembly accessory accessory Back clip Bracket Micro SD card Power adapter AV output cable USB cable Cloth bag Strap CD ROM User’s Manual...

  • Page 35: Optional Accessories

    Optional Accessories The optional accessories for the SD21 video camera are as follows: Portable power unit (2500 mAH) Portable power unit (850 mAH) Bicycle-mounted accessory Bicycle-mounted accessory Glass-suction bracket Helmet-top-mounted Soft-and flat-mounted accessory accessory HDMI output cable The precautions for movable accessories are as follows: 1.

  • Page 37: Technical Specifications

    Technical Specifications Technical specifications of the SD21 video camera Option Specifications Option Specifications View angle 170° 1080P 1920 x 1080P @25fps Number of pixels 8 million CMOS sensor 1080i 1920 x 1080i @50fps (3200 x 2400) Format for video 960P 1280 x 960P @25fps...
  • Page 38 File storage 30 minutes per segment in Dimensions (W x H 60 mm x 51 mm x 42 mm normal cases x D) 15 minutes per segment in cyclic recording mode...

  • Page 39: Precautions For The Waterproof Housing

    Before attaching the 3M dual-side foam tape, heat the surface of the foam tape, for instance, using an electric blower, especially in a place where temperature is lower than -20°C. Notice When using the SD21 video camera, pay attention to the following notice information:...
  • Page 40 During continuous use, the body temperature of the SD21 video camera increases. This situation is normal. If the SD21 video camera will not be used for a long time, remove and keep the battery properly, and recharge the battery every sixth month to ensure the battery performance.
