Summary of Contents for AEE HD50

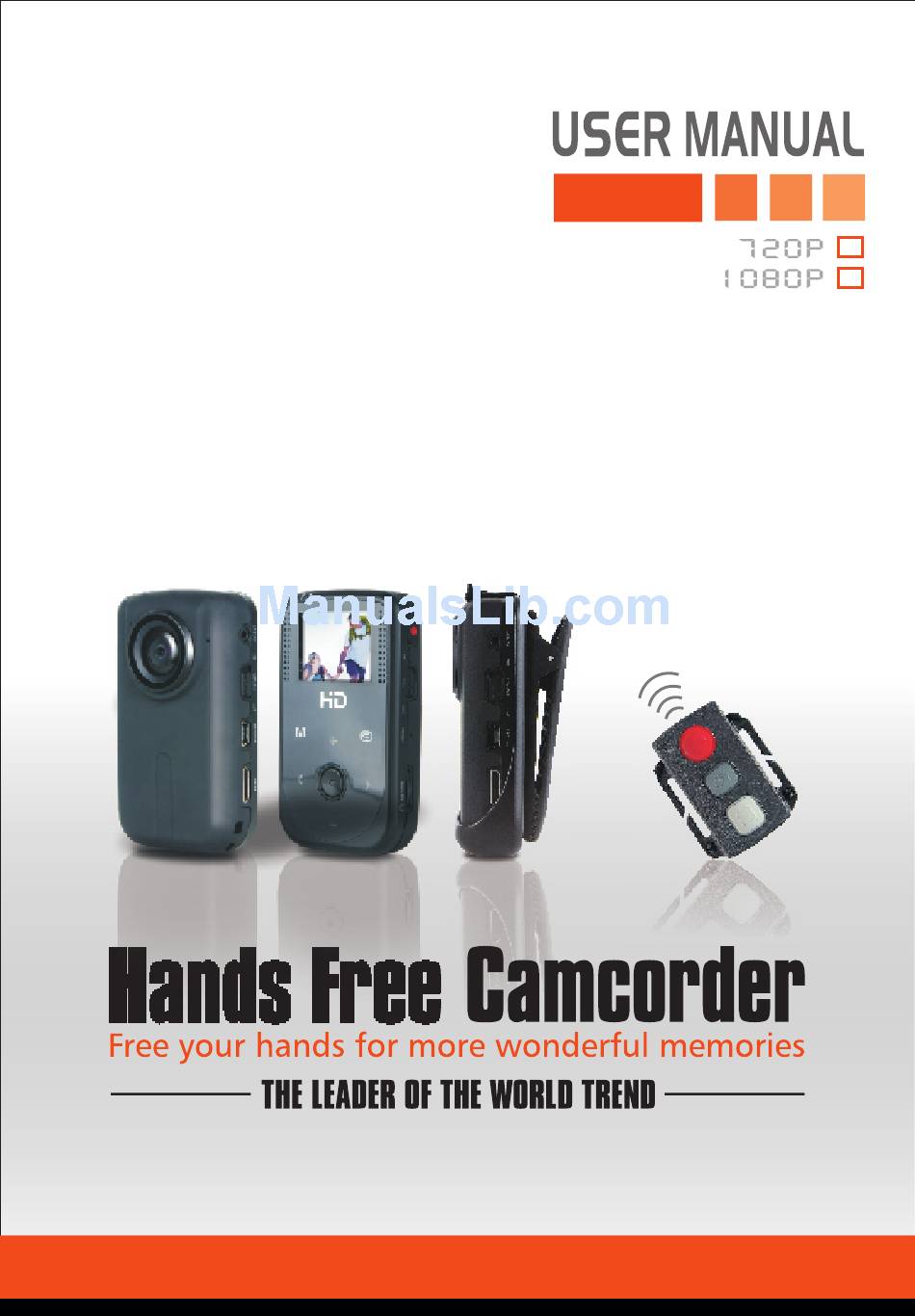

- Page 1 HD50...
- Page 2 Touch LI-ION BATTERY...
-
Page 3: Table Of Contents
Contents .......... Precautions ..........Preface ......... Product Certification ........Product Overview ........Product Features ........Product Structure ........... Installation ......Operating Instructions ....... File Storage And Play ..........Adapter ........Packing Contents ....... Optional Accessories ........Specifications ..........Fcc Note... -
Page 4: Precautions
HD50 or cause damage to image and audio data. 4.Do not expose the DV to high temperature or sunlight direct. -
Page 5: Preface
Preface Thanks for purchasing our high-definition digital video camera HD50. Featured by small size, integrated design and easy to operate, HD50 can be used to photograph and record the scene anytime anywhere by means of the high-definition and dynamic photography, so that you can share... -
Page 6: Product Overview
Product Over view As a high-end mini HD digital video camera designed to meet the market demand, this product can perform functions such as high-definition digital photography, voice storage, real-time display, voice-activated video recording, photo shooting, time display, remote control, digital zoom, touch keypad, high-speed USB data transmission, and USB charging. -
Page 7: Product Features
Product Features >170° large view angle and large aperture; >5.0 mega high-definition camera, supporting 1080P/720P high-definition video recording; >Photo shooting function, supporting a maximum resolution of 3200x2400; >3X digital zoom function; Applicable for 720P models >Self-timer function; >Video loop coverage function; >Voice recording function;... - Page 8 >You can use the attached remote control to control the video recording and photo shooting; the special code pairing function which matches a remote control only with the coded HD50 makes misoperations impossible. >Recording MOV videos, to be directly played by PC or uploaded onto video websites;...
-
Page 9: Product Structure
Product Structure 1. Status Indicator (green) 2. Power Indicator (red) 3. TFT Display Screen 4. Up 5. Menu 6. OK/Shutter/Lock 7. Left 8. Down 9. Screw-type Interface 10. Record 11. VOX Switch 12. Recall 13. Reset 14. Right 15. Micro SD Card Slot... - Page 10 16. Self-timer Indicator 17. Lens 18. AV Output Interface 19. Microphone 20. Power Switch 21. Mini USB Port 22. HDMI Interface 23. Lanyard Hole...
-
Page 11: Installation
Installation 1.Installation of Clip HD50 can be either handheld or combined with multifunctional clip. In the latter case, you can fix the clip to your clothes or other objects. Follow the steps below to install the clip: Clip Main Body... - Page 12 2.Installation of Remote Control There is a separate remote control attached to HD50. Please install the remote control onto the correct position based on the accessories below: Velcro Clip Binding tape (optional)
-
Page 13: Operating Instructions
Before use, please check if there is enough battery power. In case of a low battery power, please charge HD50 via the power supply or USB cable. The power indicator will twinkle slowly in red in charging and remain red with the battery icon “... - Page 14 HD50 Settings In preview mode, touch [M] to enter the selection interface, touch [>] to shift to the setup interface " “, press [OK/Shutter] to set the selected menu, and then touch [M] to exit the menu. Touch [+] and [-] to move the cursor up and down, touch [<] and [>] to move the cursor left...
- Page 15 Output Format: select the TV system NTSC or PAL, depending on your area. Note: If you want to change the TV system when HD50 is connected to the TV, please unplug the AV cable and then reinsert it f.Format: format the memory of the Micro SD card and HD50.
-
Page 16: Video Recording
HD50 Operations 1.Insert the Micro SD card. 2.Turn the power switch to “ON” to turn on HD50, and the red indicator will be lightened and HD50 will enter the preview mode. Note: (a) In case of low battery power, you will find the battery icon “... - Page 17 65dB again, HD50 will auto enter the video recording mode to start recording again. (d)To turn off HD50 in voice-activated video recording, please turn the VOX switch to “OFF” first so that HD50 will auto save the data. Note: (a) If the battery power is low in video recording, the system will auto save the current file and give the message “Low Power”...
-
Page 18: Voice Recording
”, select the menu “Self-timer”, and press [OK/Shutter] to set the delay time as 5s or 10s. Touch [M] to exit the setup interface. Press [Shutter], and HD50 will start the timer and shoot a photo at the end of the delay time. 5.Voice Recording: Touch [M] to enter the setup interface, select the menu“Capture Mode”, press [OK/Shutter] to enter... - Page 19 6.File Recall: You can view the audio files, video files and photo files on HD50. Touch [ ] to enter the recall selection interface and touch it again to exit the recall interface. Select the menu “AV File” to view the audio and video files or select the menu “Photo...
- Page 20 [+]: increase the volume; [-]: reduce the volume; [<]: fast rewind; [>]: fast forward; ]: touch it to pause playing and touch it again to resume playing; [OK/Shutter]: after touching [<] or [>], you can press this key to resume regular playing. Note: Fast rewind can be set as twofold or fourfold (2) Photo File Enter the photo file recall interface, touch [-] to preview...
- Page 21 (3) If the DPOF information of the Micro SD card has been set by another camera, please do not insert this card into HD50 to reset the DPOF information, or the DPOF information may be invalid or covered.
-
Page 22: Remote Control
“Power” button to “ON” and release the button after start-up. Then, code match is finished. . (3) If code pairing is successful, HD50 will act accordingly when you press any of the keys on the remote control. If code pairing fails, please repeat the above code pairing process. - Page 23 8.Key Lock: Lock keys to prevent misoperations. In standby state or video recording, you can long press [OK/ Shutter] for 4s to lock keys. Then, when you touch any key, the background light will twinkle once to remind you the keys are locked and no operation is accepted.By long pressing [OK/Shutter] for 4s again, you can unlock the locked keys.
-
Page 24: File Storage And Play
USB Port on PC USB Cable Note: (1) Please turn off the HD50 before inserting or unplugging the USB cable. (2) Turn the power switch to “OFF” before charging HD50. The red indicator will twinkle slowly in charging. (3) You can directly copy or cut the recorded files to your computer when the power switch is turned to “ON”. - Page 25 HDMI Cable on HD50 Note: (1) After connecting HD50 to the monitor via the HDMI cable, please select the input source for the monitor to display the data from HD50. (2) If you select the AV cable, please connect each of its terminals to the relevant TV or monitor terminal in the same color.
-
Page 26: Adapter
ADAPTER This product always conforms to the authenticated AC adapter. The adapter should be marked one of the following: NOTICE: When using the power adapter, make sure the rating voltage on it is compatible with that of the device to avoid potential damages resulting from incorrect usage of power supply. -
Page 27: Packing Contents
PACKING CONTENTS Clip for Clip for Remote Remote Control main unit Control Adapter AV Cable USB Cable Chain Pouch Velcro for bracket main unit Micro SD card *Optional* Note: (1) The actual items may by different from the pictures here. Package is subject to change without further notice. -
Page 28: Optional Accessories
OPTIONAL ACCESSORIES 1. Portable Power Supply 2. Portable Power Supply (850mAH) (2500mAH) 3. Car Sucker Bracket 4. Accessory for Installation onto Bicycle 5. Accessory for Flat 6. Accessory for Installation Installation onto Helmet Side -25-... - Page 29 7. Accessory for Installation 8. Car Bracket onto Helmet Top 9. HDMI Cable The above accessories are optional. If you need them, please contact our distributors. -26-...
-
Page 30: Specifications
SPECIFICATIONS View Angle 170° Remote Control Rang 5 Meters Photo Shooting Resolution Available: 3M, 5M, or 8M JPEG Pixel 5.0 million color CMOS Video Recording Duration About 4h Voice Recording Duration About 5h 200h File Storage 30min per Segment Video decode use H.264 compress mode, recording for MOV format Video Function and 1080P (Applicable for 1080P models),... -
Page 31: Fcc Note
FCC NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
