Summary of Contents for DeDietrich C 310 ECO

  • Page 1: User Guide

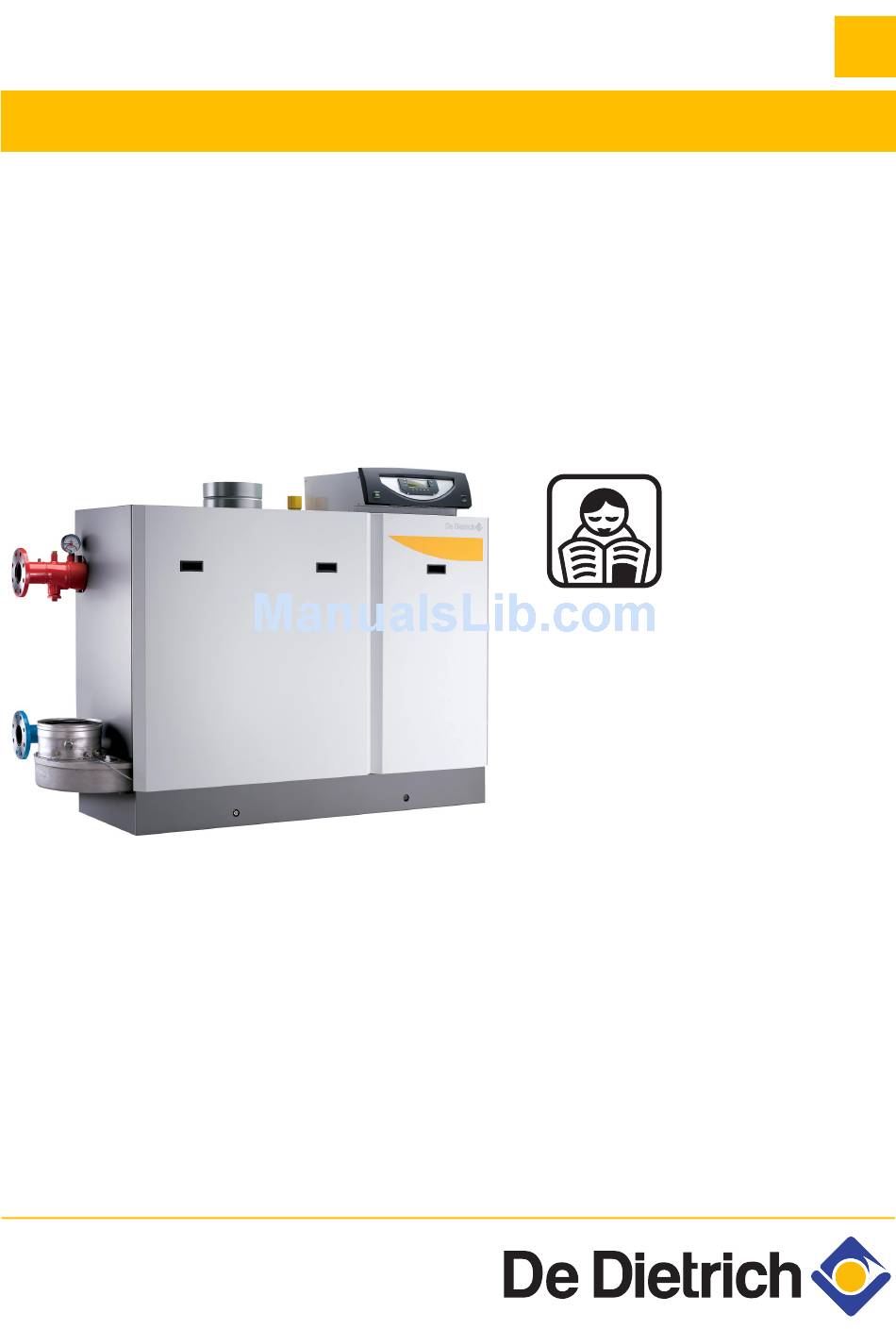

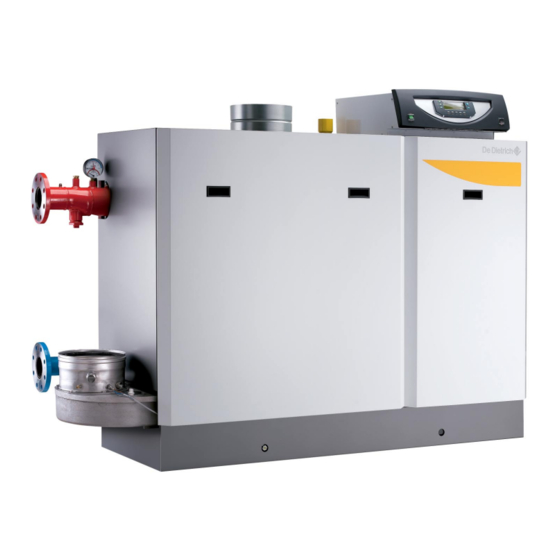

    Gas fired condensing boiler C 310 ECO - C 610 ECO User Guide 300015183-001-A...

  • Page 2: Table Of Contents

    Energy savings ............... . .18 C 310 ECO - C 610 ECO...

  • Page 3: Introduction

    All the specifications stated in this document are therefore subject to change without notice. Get your fitter to explain your installation to you. 02/10/07 - 300015183-001-A C 310 ECO - C 610 ECO...

  • Page 4: Safety Instructions And Recommendations

    The appliance should be on Summer or Antrifreeze mode rather than switched off to guarantee the following functions: - Antifreeze protection - Protection against corrosion on domestic hot water tanks fitted with a titanium anode. C 310 ECO - C 610 ECO 02/10/07 - 300015183-001-A...

  • Page 5: Description

    17. Heat exchanger 42. Combusted gas valve 18. Output sensor 43. Combusted gas discharge connection with an integrated 19. Air intake condensates collection device 22. Gas connection 23. Flame inspection window 02/10/07 - 300015183-001-A C 310 ECO - C 610 ECO...

  • Page 6: Use Of The Appliance

    Number display (current time, adjusted values, parameters, etc.) Active programme display, P1, P2, P3, P4 E : Summer mode activated The arrows flash when setting values can be modified using the + and - keys C 310 ECO - C 610 ECO 02/10/07 - 300015183-001-A...

  • Page 7: Changing The Settings

    Circuit display selection key Key for access to setting and measurements Active heating programme selection key (P1, P2, P3 or PROG Page scrolling Line scrolling Back to the title or the previous line 02/10/07 - 300015183-001-A C 310 ECO - C 610 ECO...

  • Page 8: Stopping The Boiler

    PL on the venturi. b. Run the boiler at high speed (forced "high speed" mode) by pressing keys simultaneously for 2 seconds. TEST EMISSION appears on the display with C 310 ECO - C 610 ECO 02/10/07 - 300015183-001-A...
  • Page 9 24. Switch the boiler on and fill in the label "Set to" Each individual boiler is delivered with the following fixed factory settings: Burner regulation - Modulating, depending on the outlet temperature Flow temperature - 90°C 02/10/07 - 300015183-001-A C 310 ECO - C 610 ECO...

  • Page 10: Checking And Maintenance

    - Checking the hydraulic pressure - Checking the air inlet circuit Carry out the following maintenance at least *1 time a year: - Cleaning the condensates collector - Cleaning the siphon. C 310 ECO - C 610 ECO 02/10/07 - 300015183-001-A...

  • Page 11: Troubleshooting

    Type of gas used Serial no. of the appliance Boiler type This information can be found on the rating plate stuck to the Date of manufacture front plate of the boiler. 02/10/07 - 300015183-001-A C 310 ECO - C 610 ECO...

  • Page 12: Error Messages

    - Check the fan wiring (corrosion of the connection) FAN OFF FAIL - Command and safety box faulty - Electrical connections broken The fan is working constantly FAN ON FAIL - Faulty fan control (replace the fan) C 310 ECO - C 610 ECO 02/10/07 - 300015183-001-A...
  • Page 13 Flue gas temperature too high Heat exchanger fouled STB SMOKE Check the wiring. Return temperature too high Bleed the boiler. Check the boiler pump. Check the hydraulic STB BALK circuit on the installation. 02/10/07 - 300015183-001-A C 310 ECO - C 610 ECO...
  • Page 14 Reheating the domestic hot water remains ensured. The 10 latest faults appearing on the display are memorised in the paragraph #HISTORY D.. C 310 ECO - C 610 ECO 02/10/07 - 300015183-001-A...
  • Page 15 The blockage mode is a normal operating mode and therefore does not indicate a breakdown but a normal boiler operating status. A blockage code is likely to signal a technical problem in the installation or an incorrect setting. 02/10/07 - 300015183-001-A C 310 ECO - C 610 ECO...

  • Page 16: Technical Characteristics

    1130 1100 1200 1100 1250 Electricity characteristics Power supply voltage V/Hz 230 / 50 minimum Power consumption maximum Insulation class Miscellaneous Weight without water Acoustic level at 1 meter C 310 ECO - C 610 ECO 02/10/07 - 300015183-001-A...
  • Page 17 1100 1250 Electricity characteristics Power supply voltage V/Hz 230 / 50 minimum Power consumption maximum 1240 1684 Insulation class Miscellaneous Weight without water 1020 1120 Acoustic level at 1 meter 02/10/07 - 300015183-001-A C 310 ECO - C 610 ECO...

  • Page 18: Energy Savings

    - Do not shut down heating completely if you are absent. Lower the thermostat by 3-4°C. - Use the sun's heat as much as possible. - Take showers rather than baths. Use a water-saving shower head. C 310 ECO - C 610 ECO 02/10/07 - 300015183-001-A...
  • Page 19 Sub-assemblies such as motors, pumps, electric valves etc. are guaranteed only if they have never been dismantled. 02/10/07 - 300015183-001-A C 310 ECO - C 610 ECO...
