- Page 1 Range GT 120 - GTU C 120 - GT 220 Low temperature fuel oil boiler English Oil-fired condensation boiler 21/09/06 Instructions for...
-
Page 2: Table Of Contents
Contents Important recommendations ..............3 1 Aeration . -
Page 3: Important Recommendations
Congratulations on your choice of a high quality product. We strongly advise you to read the following instructions in order to guarantee the optimal operation of your appliance. We are sure that it will be entirely to your satisfaction and will meet with all of your expectations. -
Page 4: Maintenance
3 Maintenance - The servicing and cleaning of the boiler and the sweeping of the flue gas pipe and the bleed pot must be done at least once a year by a qualified professional. - Oil-fired condensation boiler: The condenser and the condensates neutralisation station must serviced at least once a year by a qualified professional. -
Page 5: Description

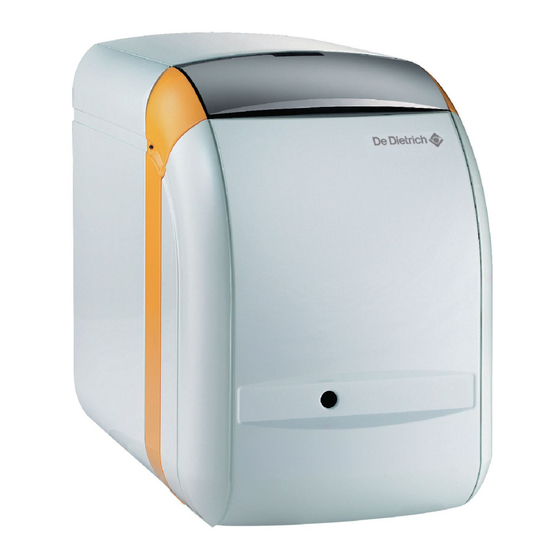

Description 1 Boilers The models presented are marketed in the various countries according to the countries' specific sales programme. GT 120 GTU 1200 V / GTU 1200 V FF / GTU C 1200 V GTU 120 / GTU 120 FF / GTU C 120 GT 220 21/09/06 - 300003691-001-F GT 120 - GTU C 120 - GT 220... -
Page 6: Control Panel
2 Control panel Control panel B / B2 Boiler thermostat General ON / OFF switch Alternate display of the following temperatures: Alarm indicator - Light lit: Water temperature in the boiler Summer / Winter switch - Light lit: Domestic hot water temperature TEST STB button domestic hot water thermostat Safety thermostat with manual reset... - Page 7 EASYMATIC regulator MODE M O D E A R D T A N D 575N077A Time and day adjustment key Temperature setting keys Comfort temperature Access to the time programmes on the heating circuits. Circuit A for Easymatic, circuit A and B for Easymatic 1. Reduced temperature Access to the time programmes on the DHW circuit Domestic hot water temperature...
- Page 8 Control panel DIEMATIC 3 Electromechanical components Safety thermostat with manual reset (110 °C) General ON / OFF switch Timed circuit breaker (6 A) Alarm indicator Operating light Switch AUTO/ TEST STB button Display Symbol displayed above the active operating mode Text and numerical display Symbols indicating that the following inputs/outputs are Graphic display bar for the programme in circuit A, B or C...
- Page 9 Keys accessible when the flap is closed Operating mode selection keys Temperature setting keys AUTO Heating according to the time programme Comfort temperature Forced Comfort mode: Reduced temperature - until midnight if flashes Domestic hot water temperature - all the time if is steady Is used to adjust the selected temperature Forced Low mode:...
-
Page 10: Commissionning
Commissionning Initial commissioning must be done by a qualified 4. Control panel B / B2: professional. - Set the Summer/Winter swtich to 1. Check the water pressure in the installation. Top up with more Control panel E / E1 / D: water if necessary. - Page 11 Warranty You have just purchased one of our appliances and we thank you France for the trust you have placed in our products. The preceding dispositions are not exclusive of benefits for the Please note that your appliance will provide good service for a purchaser of the legal guarantee as stated in Civil Code articles longer period of time if it is regularly checked and maintained.
