Springfree S 155 Assembly Instructions Manual

Trampoline & enclosure
Hide thumbs Also See for S 155:

Advertisement

Quick Links

Download this manual See also: Manual
Trampoline & Enclosure
p
Assembly Instructions
Assembly Instructions
Safe user weight 330 lbs (150 kg)
Version 718702
The information in this document is subject to change without notice.
© Copyright Springfree Trampoline Inc. 2005, 2013. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the S 155 and is the answer not in the manual?

Questions and answers

Related Manuals for Springfree S 155

Summary of Contents for Springfree S 155

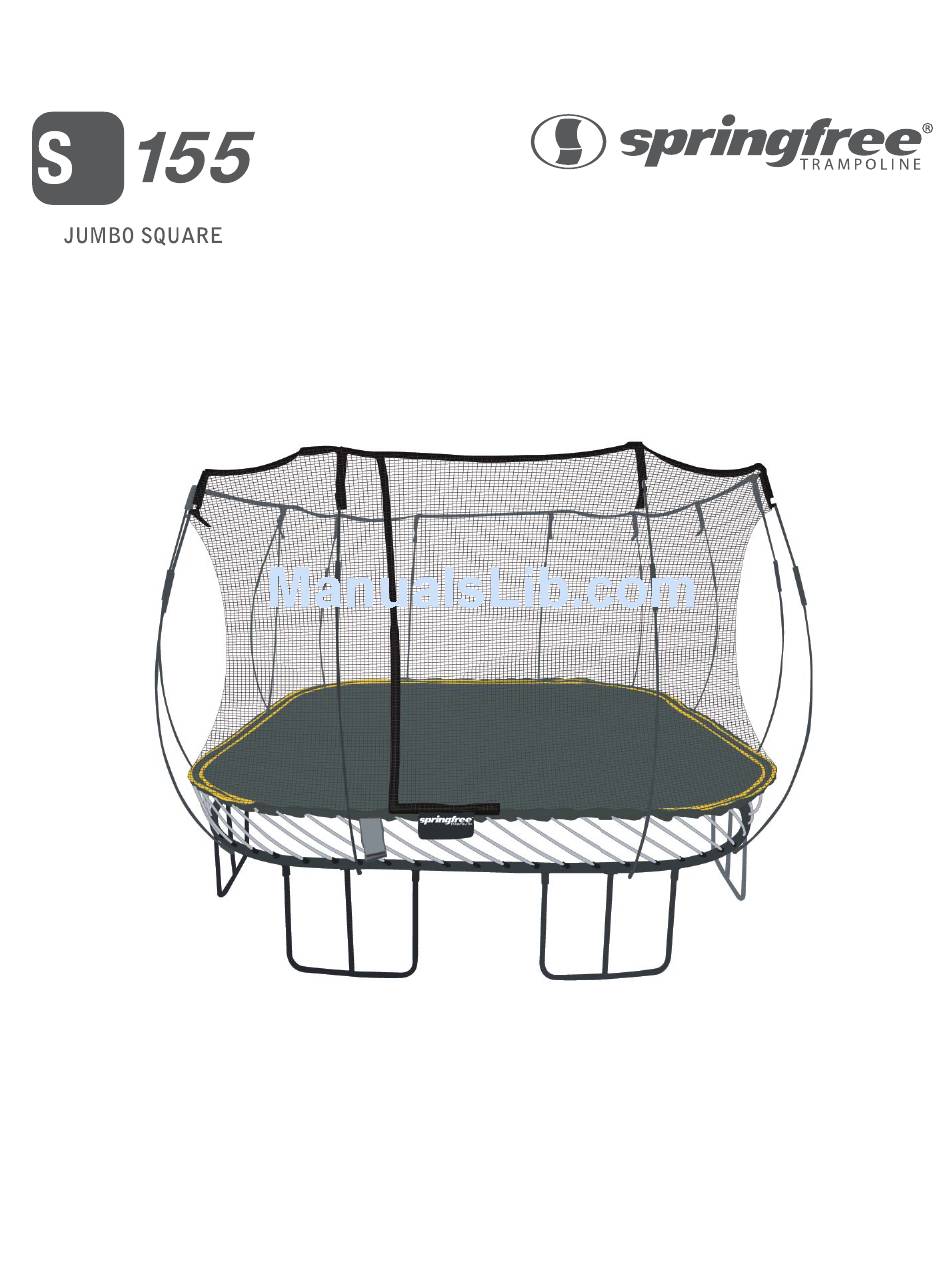

  • Page 1 Trampoline & Enclosure Assembly Instructions Assembly Instructions Safe user weight 330 lbs (150 kg) Version 718702 The information in this document is subject to change without notice. © Copyright Springfree Trampoline Inc. 2005, 2013. All rights reserved.
  • Page 2 Do not hold onto, or place fingers Your Springfree trampoline has between the rods while someone is been designed for residential jumping on the trampoline.

  • Page 3: Assembly Precautions

    Assembly Precautions Read the following steps before beginning the assembly process. Keep small children at least 25 ft (7.62 m) away while assembling the trampoline; they could be injured by improperly assembled rods releasing and ejecting from the frame. Do not attempt to use the trampoline until it is completely assembled. Installation typically takes two hours to complete.
  • Page 4 Part Quantity Part Quantity White Mat Rods Black Net Rods Wrenches Spare Small Bolt & Nut C-clips (attached to frame) Spare C-clips Horizontal Net Rods TIP - Assemble the trampoline on a flat surface. Layout all parts listed as shown. SCAN HERE or visit http://springfr.ee/install-ov for a helpful installation demonstration video.
  • Page 5 Lay out the remaining frame parts as shown. The yellow stickers on the frame sections and leg pieces all face upwards. ® If you are missing any parts please contact Springfree Trampoline directly. SCAN HERE or visit http://springfr.ee/step-2 for a helpful installation demonstration video.
  • Page 6 WARNING - Use the tools provided. Do not tighten the nuts with a power driver, torque wrench, or drill. TIP - The frame may appear loose after it is assembled but will become tight and rigid once the mat is installed. Fasten the frame sections together with the large bolts and nuts.
  • Page 7 Lay out the mat with the yellow stripes facing upwards inside the trampoline frame. Make sure the blue and green tags on the mat line up with the blue and green stickers on the frame.
  • Page 8 NOTE - As you install the white mat rods into the mat rod sockets the net will become tight against the frame. Handle the net with care and be sure that it does not get caught or it may tear. Find the hole in the net marked with a blue tag and the mat rod socket on the frame marked with a blue...
  • Page 9 1 Hold the white mat 1 Hold the white mat 2 Bend your arm at a rod with your palm rod with your palm right-angle, push your facing up.Stand with facing up.Stand with elbow into your hip one leg forward, bend one leg forward, bend and hold the white your knees and hold...
  • Page 10 TIP - Keep the mat level when you attach the white mat rods. If you are having difficulty installing the white mat rods, try having a second person push on the opposite side of the trampoline.
  • Page 11 NOTE - Check that the center posts of the leg sections are correctly seated against the trampoline frame. If they are not, adjust them now. Attach the first twelve white mat rods to the mat in the order shown. Make sure you correctly match the colored stickers next to the white mat rods with the colored tags on the mat.
  • Page 12 WARNING - Treat any loaded rod with caution until you are sure it is properly installed or uninstalled. Keep your face well away from any loaded rod. NOTE - When you have put the ball end of a white mat rod into a mat rod holder, swivel the mat to ensure the white mat rod is correctly seated.
  • Page 13 WARNING - Treat any loaded rod with caution until you are sure it is properly installed or WARNING - Treat any loaded rod with caution until you are sure it is properly insta uninstalled. Keep your face well away from any loaded rod. uninstalled.
  • Page 14 WARNING - Treat any loaded rod with caution until you are sure it is properly installed or uninstalled. Keep your face well away from any loaded rod. Locate the orange tag along the top edge of the net. Slide a horizontal net rod into the pocket at the orange tag.
  • Page 15 WARNING - Never attempt to remove a black net rod from its net rod pocket or disengage (unlock) the rod sleeve while the black net rod is under tension. Insert all of the black net rods into the net rod pockets at the top edge of the net. Push the rod up into the pocket and past the catch.
  • Page 16 If your trampoline is installed in an area susceptible to high winds or if you are looking for increased stability for your trampoline, we recommend the Springfree Ground Anchor, which has been designed specifically for the Springfree Trampoline. Ground Anchors can be purchased online at www.springfree.com.

This manual is also suitable for:

S113
