Summary of Contents for tilgin HG2330 series

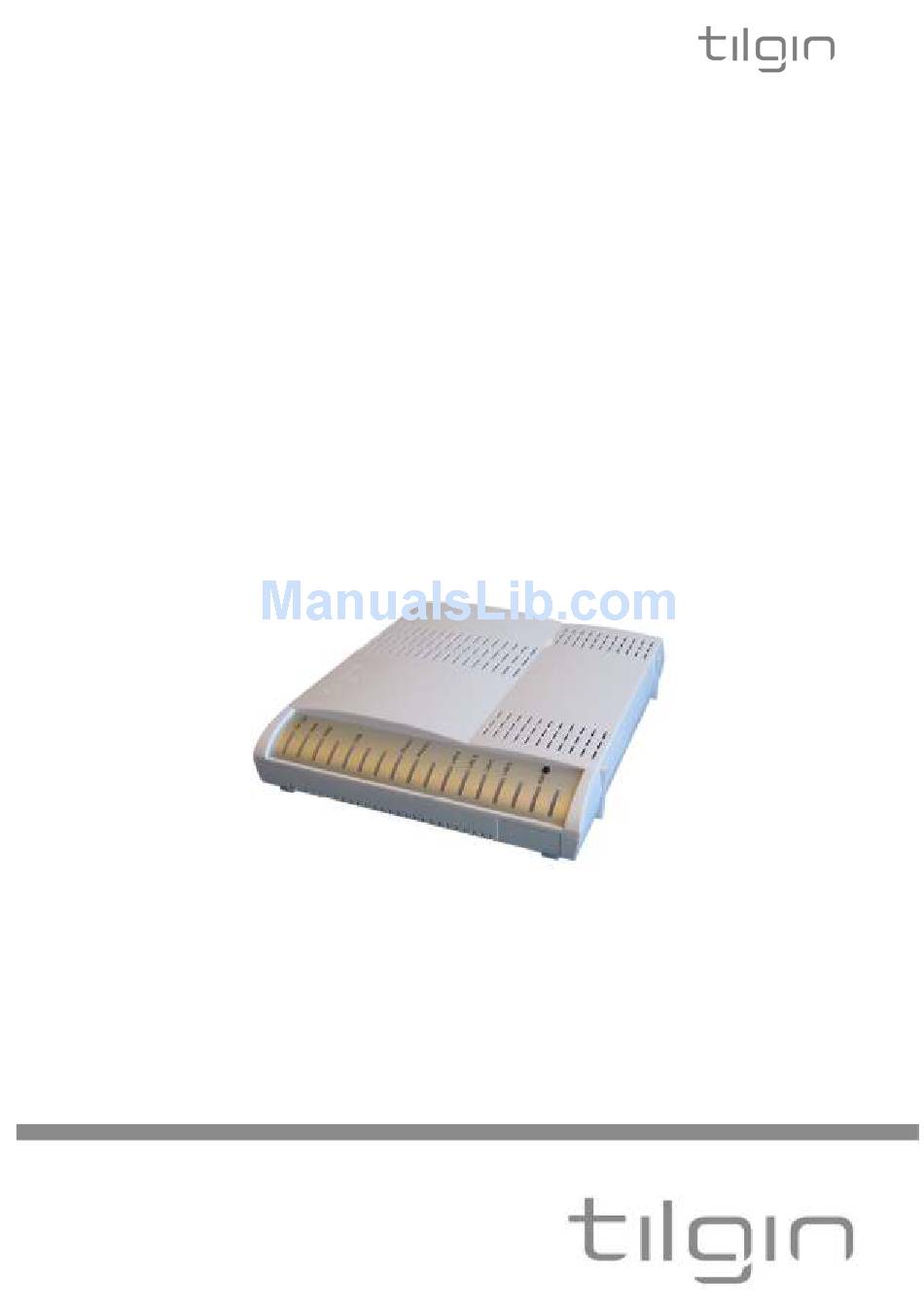

- Page 1 Tilgin Home Gateway HG2330 series Quick Guide Tigin HG2330 series Quick Guide...
- Page 2 Tel: +46 (0)8 572 38600 Fax: +46 (0)8 572 38500 For more company, product and contact info: www.tilgin.com This product is developed and manufactured by Tilgin IPRG AB. Document Product Number: 13652330 Content Version: B Tigin HG2330 series Quick Guide...
-
Page 3: Table Of Contents
Safety Recommendations ................12 Power Supply ..................... 13 Approvals and Conformity ................13 Technical Specifications ................14 Environmental Information ................. 14 Warranty ..................... 14 Notice of Copyright and Patent Protection ..........14 Acronyms ....................15 Tigin HG2330 series Quick Guide... -
Page 4: Introduction
The home gateway you have received enables services provided by your operator and can become the full service node in your home. This Quick Guide contains start-up instructions for installing Tilgin Home Gateway HG2330 series. When following the instructions to connect and start-up the home gateway it will automatically connect to your operator´s network for enabling services offered by your operator. -
Page 5: Home Gateway Overview
3. Home Gateway Overview 3.1. Home Gateway cable attachments See more instructions below. Tigin HG2330 series Quick Guide... -
Page 6: Home Gateway Interfaces
Turn wireless LAN (WLAN) ON or OFF with short push. Activate Wireless WiFi button Protected Setup (WPS) with push for 10 seconds. USB Host Ports Connects USB Device Reset button Button for factory reset Tigin HG2330 series Quick Guide... -
Page 7: Leds Front
A, B, C, D ORANGE, Stable Link 1000M (Only HG2332) No link GREEN, Stable Wireless function enabled. GREEN, Slow flash WPS in progress Wireless GREEN, Short flash WPS succeeded GREEN, Rapid flash WPS failed Wireless function disabled Tigin HG2330 series Quick Guide... -
Page 8: Installing Your Home Gateway
Home gateways must always be installed away from heat sources and direct sunlight. The flowchart below describes the procedures to install your home gateway and is in detail explained in the following pages Tigin HG2330 series Quick Guide... -
Page 9: Connecting To The Internet (Wan)
30 minutes. If the LED still has not turned stable green after 30 minutes, then reboot (push power ON/OFF-button). If problem persists, contact your operator. For more information about the LED status, see LEDs Front. Tigin HG2330 series Quick Guide... -
Page 10: Connecting A Computer To Your Home Gateway
4.4.2 Connecting a computer by using WLAN (Wireless LAN) WPS method The Tilgin home gateway supports the Wi-Fi Protected Setup (WPS) feature to make it easy to set up a secure wireless home network. Two WPS methods are supported, PIN and Push Button Connect (PBC). -
Page 11: Configuring Wlan Client For Computer Devices
This means that you must check that your computer network settings are set to TCP/IP protocol and that the IP address will be obtained automatically. For detailed instructions how to set up your home network check instructions/Help for your operating system on your computer. Tigin HG2330 series Quick Guide... -
Page 12: Connecting Phones / Equipment
DO NOT use an ordinary phone cable for this purpose. It requires a special Phone cable and can be different from country to country. This option must be supported in your country and by your operator. Tigin HG2330 series Quick Guide... -
Page 13: Troubleshooting Tips
Now press the WLAN button again (WLAN On). The Auto channel feature then searches for the best channel and select it. •If these actions still do not solve the problem, contact your operator or the vendor that supplied your home gateway. Tigin HG2330 series Quick Guide... -
Page 14: Safety Information
All use of the product is subject to the Safety Recommendations above. Tilgin IPRG AB waives all and any liability for damages caused to i) the product or any other property or ii) yourself or any other individual as a consequence of using the product in ways that deviate from the safety recommendations set out above. -
Page 15: Power Supply
8. Power Supply Do not use any other power supply than the one delivered by Tilgin. Using the wrong power supply could be hazardous to you or the product. The power supply is approved by one or more of the following safety organizations: Two power supplies are defined for these products. -
Page 16: Technical Specifications
No warranty, express or implied, with respect to the product is extended directly to you from or on behalf of Tilgin IPRG AB. Limited warranties may be granted to you by the equipment provider in its capacity as reseller of the product. Please contact your equipment provider for information regarding warranties for the product. -
Page 17: Acronyms
Light Emitting Diode PBC Method Push Button Connect method SSID Service Set Identifier VoIP Voice over IP Wide Area Network Wi-Fi Trademark for Wi-Fi Alliance WLAN Wireless Local Area Network Wi-Fi Protected Access Wi-Fi Protected Setup Tigin HG2330 series Quick Guide... - Page 18 Under the copyright laws this Quick Guide, artwork, software, and product designs may not be copied, in whole or part, without the written consent of Tilgin IPRG AB. Under the law, copying includes translation to another language or format.
