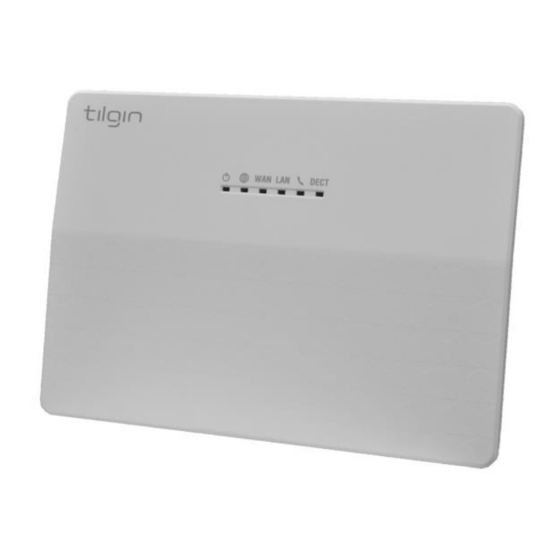

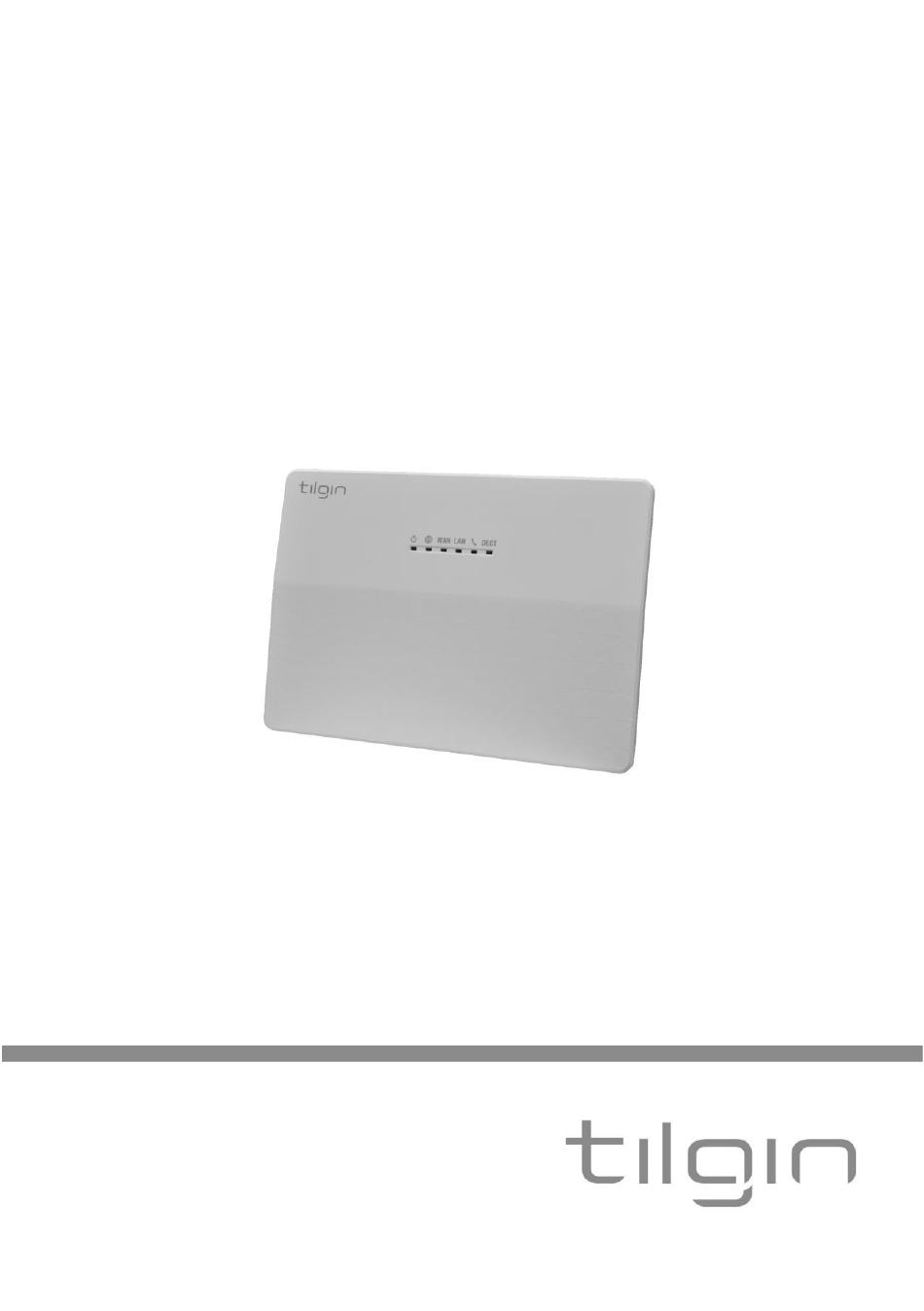

- Page 1 Tilgin Home Gateway HG351/HG354 HG350 Series Quick Guide...
- Page 2 Tilgin AB BOX 1240 164 28 Kista, Sweden tel: +46 (0)8 572 38600 fax: +46 (0)8 572 38500 www.tilginsolutions.com Document Product Number: 13652371 Content Version: D 17-06-16...
-
Page 3: Table Of Contents
Table of Contents Introduction ......................... 4 Delivered with the Home Gateway Unit ..............4 Home Gateway Overview ..................5 3.1. Home Gateway cable attachments ..............5 3.2. Home Gateway Interfaces ................6 3.3. LEDs Front Panel ....................7 Installing the Home Gateway ................... 8 4.1. -
Page 4: Introduction
This Quick Guide contains start-up instructions for installing Tilgin Home Gateways HG350 series. When following the instructions to connect and start-up the home gateway it will automatically connect to your operator’s network for enabling services offered by your operator. -
Page 5: Home Gateway Overview
Home Gateway Overview 3.1. Home Gateway cable attachments See more instructions below HG351 and HG354 cable connections... -
Page 6: Home Gateway Interfaces
3.2. Home Gateway Interfaces HG351 and HG354 Rear Panel Green Yellow Gray Interface Outlet & Cable Function Color Codes Phone Port Green Connects analogue phones or fax equipment LAN Port Yellow Connects to the Local Area Network WAN Port Gray Connects to WAN (Internet) Power / DC Black... -
Page 7: Leds Front Panel
3.3. LEDs Front Panel The front panel LEDs indicates the status of the Home Gateway, its services and the network connectivity. HG351 and HG354 Front Panel LED indication Status description symbol Device is powered off RED, Stable Not ready, boot in progress RED, Slow Flash Connection to operator failed RED, Rapid Flash... -
Page 8: Installing The Home Gateway
Installing the Home Gateway When the home gateway is connected, it will automatically be provisioned by your operator. However, the level of configuration can vary from a completely automatic configuration to full manual configuration, depending on what your operator offers. Follow the specific configuration instructions you may have received from your operator. -
Page 9: Connecting To The Internet (Wan)
4.1. Connecting to the Internet (WAN) Connect the Ethernet cable into the WAN port ( #3 on the Home Gateway Interfaces page) and into your Ethernet access port. (Home Gateway cable attachments) 4.2. Power on the Home Gateway 1. Connect the power cord to the AC/DC adapter 2. -
Page 10: Connecting Phones / Equipment
4.6. Connecting phones / equipment You can connect analogue phones and other equipment such as fax machines to the home gateway. The home gateway will then turn these units into IP telephony capable devices by performing translation between analogue telephony services and IP based telephony services. Mind that you might need a country specific phone plug and a special phone cable (both supplied by your operator) to connect multiple analogue devices. -
Page 11: Connecting A Dect Handset To The Hg354
4.7. Connecting a DECT handset to the HG354 If your home gateway is equipped with a built in DECT base station, such as for instance the HG354, you can connect DECT handsets to your home gateway. For the handsets to work properly, they should support either the CAT-iq 1.0, 2.0 or the GAP standard. -
Page 12: Mount The Home Gateway To The Wall
4.9. Mount the home gateway to the wall The products in the HG350 series are wall mountable. Use two suitable screws where the screw head fit the holes on the back side of the product. The screws should be in a horizontal position and with a distance of 138mm. -
Page 13: Troubleshooting Tips
Safety Information Tilgin AB products are designed and tested to meet the international Safety of Information Technology Equipment standard. This standard provides general safety design requirements that reduce the risk of both personal injury and product injury, protecting against the following hazards: ... -
Page 14: Safety Recommendations
Use only a soft, damp cloth to clean the product. All use of the product is subject to the Safety Recommendations above. Tilgin AB waives all and any liability for damages caused to i) the product or any other property or ii) yourself or any other individual as a consequence of using the product in ways that deviate from the safety recommendations set out above. -
Page 15: Power Supply
Power Supply Do not use any other power supply than the one delivered by Tilgin. Using the wrong power supply could be hazardous to you or the product. The power supply shall be installed near the gateway and shall be easily accessible. -
Page 16: Technical Specifications
Technical Specifications Dimensions 180x130x60 mm Weight 0.255 kg See the supplied power Operating voltage adapter See the supplied power Operating frequency adapter Operating: 0° C to 40° C Temperature Non-operating: -20° C to 60°C Operating: 10% to 90%, Humidity (relative, non-condensing) Non-operating: 5% to 95% Frequency Band. -
Page 17: Environmental Information
No warranty, express or implied, with respect to the product is extended directly to you from or on behalf of Tilgin AB. Limited warranties may be granted to you by the equipment provider in its capacity as reseller of the product. -
Page 18: Declaration Of Conformity
Sweden Product Name: Home Gateway Product Model Name: HG351, HG354 We, Tilgin AB, declare under the sole responsibility that the above named product conforms to the essential requirements of the European Union Directives below. 2014/53/EU The Radio Equipment Directive 2014/30/EU... - Page 20 Under the copyright laws this Quick Guide, artwork, software, and product designs may not be copied, in whole or part, without the written consent of Tilgin AB. Under the law, copying includes translation to another language or format.
