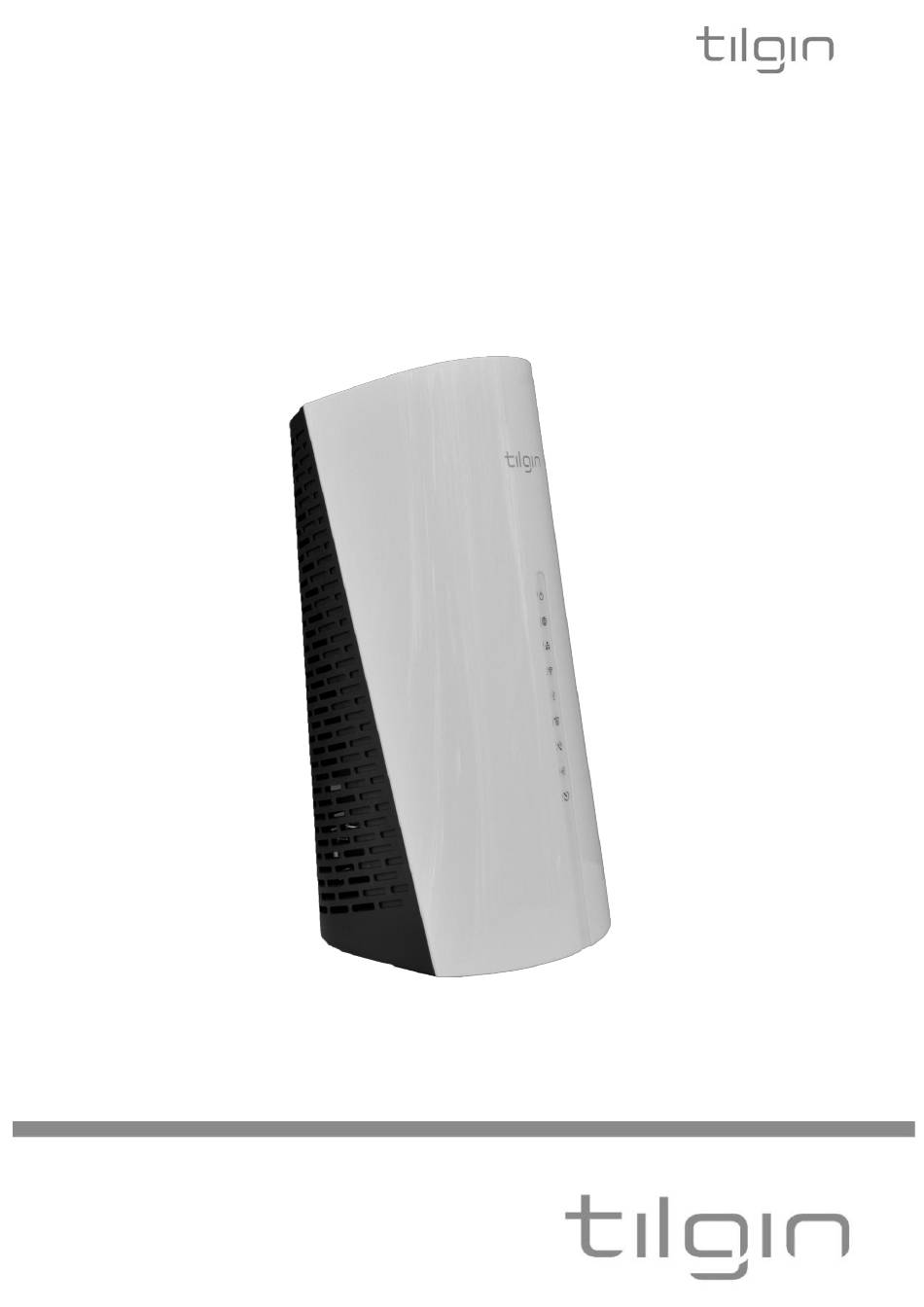

- Page 1 Tilgin Home Gateway HG2700 series Quick Guide...
- Page 2 Tilgin AB Box 1240 16428 Kista, Sweden Tel: +46 (0)8 572 38600 For more company, product and contact info: https://tilgin.com Document Product Number: 13652378 Content Version: B 20-01-29...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................2 Delivered with the home gateway ..............2 Home Gateway Overview ................3 3.1. Home Gateway cable attachments ............... 3 3.2. Home Gateway Interfaces ................4 3.3. LEDs Front ....................5 Installing your Home Gateway..............6 Connecting to the Internet (WAN) .............. -
Page 4: Introduction
The home gateway you have received enables services provided by your operator and can become the full service node in your home. This Quick Start Guide contains start-up instructions for installing Tilgin Home Gateway HG2700 series. When following the instructions to connect and start-up the home gateway it will automatically connect to your operator´s network for enabling services offered by your operator. -
Page 5: Home Gateway Overview
3. Home Gateway Overview 3.1. Home Gateway cable attachments. See more instructions below... -
Page 6: Home Gateway Interfaces
3.2. Home Gateway Interfaces Interface Function Wireless LAN Turn wireless LAN (WLAN) ON or OFF with short press. Activate (WLAN) ON / OFF Wireless Protected Setup (WPS) with push for 10 seconds. DECT Locate handsets. Press to page (locate) all connected handsets. USB 2 Host Port Connects USB Device. -
Page 7: Leds Front
3.3. LEDs Front Front LEDs indicates the home gateway and its connection status. Signaling Indication GREEN, Stable Normal operation GREEN, Rapid flash Upgrading or connecting to operator RED, Stable Not ready, boot in progress Power RED, Slow flash Connection to operator failed No power GREEN, Stable Internet Connectivity Established... -
Page 8: Installing Your Home Gateway
4. Installing your Home Gateway When the home gateway is connected, it will automatically be provisioned by your operator. However, the level of configuration can vary from a completely automatic configuration to full manual configuration, depending on what your operator offers. Follow the specific configuration instructions you may have received from your operator. -
Page 9: Connecting To The Internet (Wan)
4.1 Connecting to the Internet (WAN) Connect the Ethernet cable into WAN port #11 (#10, #12) (on the gateway) and to the Ethernet access port (SFP fiber access port, DSL access port) offered by the operator. 4.2 Connect the power cord to the AC/DC adapter 1. -
Page 10: Connecting A Computer To Your Home Gateway
4.4.2 Connecting a computer by using WLAN(Wireless LAN) WPS method The Tilgin Home Gateway supports the Wi-Fi Protected Setup (WPS) feature to make it easy to set up a secure wireless home network. Two WPS methods are supported, PIN and Push Button Connect (PBC). -
Page 11: Configuring Wlan Client For Computer Devices
Default WLAN port settings Check that the parameters for WLAN are set according to SSID and WPA key found on the casing label on the back of the home gateway. SSID = Tilgin -<12 random characters> Example: Tilgin-1wa23sbg9skm Channel = Auto Note: Your operator may instruct you to use a WPA key that they provide to you, or use the WPA key printed on the label on the bottom side of the home gateway. -
Page 12: Connecting Phones / Equipment
4.6 Connecting phones / equipment You can connect your analogue phones/equipment to the home gateway. The devices connected to the gateway are adapted for VoIP calls. Mind that you might need a country specific phone plug and a special phone cable (both supplied by your operator) to connect multiple analogue devices. -
Page 13: Locating A Dect Handset
6. Safety Information Tilgin AB products are designed and tested to meet the international Safety of Information Technology Equipment standard. This standard provides general safety design requirements that reduce the risk of both personal injury and product injury, protecting against the following hazards: ... -
Page 14: Safety Recommendations
All use of the product is subject to the Safety Recommendations above. Tilgin waives all and any liability for damages caused to i) the product or any other property or ii) yourself or any other individual as a consequence of using the product in ways that deviate from the safety recommendations set out above. - Page 15 Power supplies defined for these products. 1. For EU CSEC: CS36M120300FGF, Input: 100-240V 50/60Hz 0.8A; Output: 12VDC 3.0A 36.0W, supplied by Chou Sen Electronics (Shenzhen) Co., Ltd. Average active efficiency: 87.4% (Min.) Efficiency at low load (10%): 84.0% (Min.) No load power consumption: 0.10W (Max.) 2.
-
Page 16: Technical Specifications
4. For UK CSEC: CS24F120200FBF, Input: 100-240V 50/60Hz 0.8A; Output: 12V 2.0A 24.0W, supplied by Chou Sen Electronics (Shenzhen) Co., Ltd. Average active efficiency: 86.2% (Min.) Efficiency at low load (10%): 81.0% (Min.) No load power consumption: 0.10W (Max.) 9. Technical Specifications Max dimension, CPE W x H x D = 115x222x125mm Max dimension, Giftbox... -
Page 17: Environmental Information
No warranty, express or implied, with respect to the product is extended directly to you from or on behalf of Tilgin AB. Limited warranties may be granted to you by the equipment provider in its capacity as reseller of the product. Please contact your equipment provider for information regarding warranties for the product. -
Page 18: Declaration Of Conformity
Sweden Product Name: Home Gateway Product Model Name: HG2700 series We, Tilgin AB, declare under the sole responsibility that the above named product conforms to the essential requirements of the European Union Directives below. 2014/30/EU The EMC Directive 2014/53/EU The Radio Equipment Directive... - Page 20 Under the copyright laws this Quick Guide, artwork, software, and product designs may not be copied, in whole or part, without the written consent of Tilgin AB. Under the law, copying includes translation to another language or format.
