- Page 1 Tilgin Home Gateway HG2280 HG2380 series Quick Guide...
- Page 2 Box 1240 16428 Kista, Sweden Tel: +46 (0)8 572 38600 Fax: +46 (0)8 572 38500 For more company, product and contact info: www.tilginsolutions.com This product is developed and manufactured by Tilgin AB. Document Product Number: 13652280 Content Version: K 18-06-05...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................2 Delivered with the home gateway ..............2 Home Gateway Overview ................3 3.1. Home Gateway cable attachments ............... 3 3.2. Home Gateway Interfaces ................3 3.3. LEDs Front ....................4 Installing your Home Gateway..............5 Connecting to the Internet (WAN) .............. -
Page 4: Introduction
The home gateway you have received enables services provided by your operator and can become the full service node in your home. This Quick Start Guide contains start-up instructions for installing Tilgin Home Gateway HG2280 and HG2380 series. When following the instructions to connect and start-up the home gateway it will automatically connect to your operator´s network for enabling services offered by your operator. -
Page 5: Home Gateway Overview
Home Gateway Overview 3.1. Home Gateway cable attachments See more instructions below. 3.2. Home Gateway Interfaces Interface Function Connects to WAN (Internet) using ADSL2+ or VDSL2 LAN ports: Connects Ethernet cables (RJ-45) to the home computers and 1, 2, 3, 4 other devices Connects to WAN (Internet) using Ethernet Reset button... -
Page 6: Leds Front

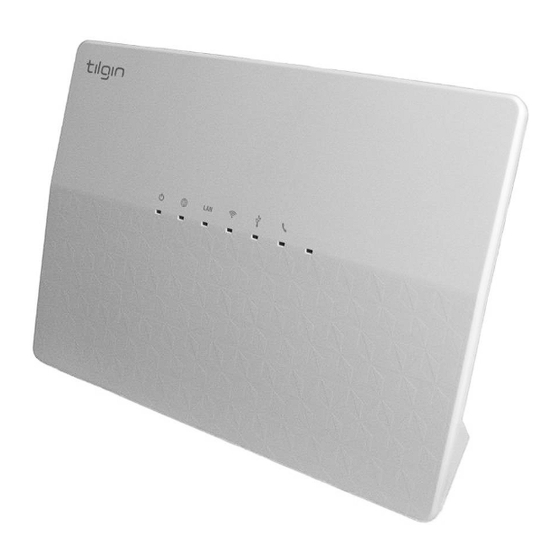

3.3. LEDs Front Front LEDs indicates the home gateway and its connection status. Signaling Indication ORANGE, Stable Normal operation ORANGE, Rapid flash Upgrading or connecting to operator Power RED, Stable Not ready, boot in progress Not applicable to RED, Slow flash Connection to operator failed HG2382 No power... -
Page 7: Installing Your Home Gateway
4. Installing your Home Gateway When the home gateway is connected, it will automatically be provisioned by your operator. However, the level of configuration can vary from a completely automatic configuration to full manual configuration, depending on what your operator offers. Follow the specific configuration instructions you may have received from your operator. -
Page 8: Connecting To The Internet (Wan)
4.1 Connecting to the Internet (WAN) The operator might offer Internet access using either ADSL2+, VDSL2 or Ethernet access. Please refer to the documentation provided by the operator for information on how to connect the device to Internet (WAN). For Internet access using ADSL2+ and VDSL2 technology the internet network cable should be connected to outlet 1 (on the gateway) and to the ADSL2+/VDSL2 outlet offered by the operator, normally the phone socket on the wall. -
Page 9: Connecting A Computer To Your Home Gateway
4.4.2 Connecting a computer by using WLAN(Wireless LAN) WPS method The Tilgin Home Gateway supports the Wi-Fi Protected Setup (WPS) feature to make it easy to set up a secure wireless home network. Two WPS methods are supported, PIN and Push Button Connect (PBC). -
Page 10: Configuring Wlan Client For Computer Devices
Default WLAN port settings Check that the parameters for WLAN are set according to SSID and WPA key found on the casing label on the back of the home gateway. SSID = Tilgin -<12 random characters> Example: Tilgin-1wa23sbg9skm Channel = Auto Note: Your operator may instruct you to use a WPA key that they provide to you, or use the WPA key printed on the label on the backside of the home gateway. -
Page 11: Connecting Phones / Equipment
4.6 Connecting phones / equipment You can connect your analogue phones/equipment to the home gateway. The devices connected to the gateway are adapted for VoIP calls. Mind that you might need a country specific phone plug and a special phone cable (both supplied by your operator) to connect multiple analogue devices. -
Page 12: Locating A Dect Handset
4.8 Locating a DECT handset A feature in the home gateway allows you to located connected DECT handsets. To locate the handsets press and release the “Page” button on the home gateway. All connected handsets will start ringing. Press and release the button again to turn off paging immediately, or wait until paging stops automatically. -
Page 13: Troubleshooting Tips
6. Safety Information Tilgin AB products are designed and tested to meet the international Safety of Information Technology Equipment standard. This standard provides general safety design requirements that reduce the risk of both personal injury and product injury, protecting against the following hazards: ... -
Page 14: Safety Recommendations
All use of the product is subject to the Safety Recommendations above. Tilgin waives all and any liability for damages caused to i) the product or any other property or ii) yourself or any other individual as a consequence of using the product in ways that... -
Page 15: Power Supply
8. Power Supply Do not use any other power supply than the one delivered by Tilgin. Using the wrong power supply could be hazardous to you or the product. The power supply shall be installed near the gateway and shall be easily accessible. -
Page 16: Technical Specifications
Technical Specifications Max dimension, CPE W x H x D = 221x158x62mm Max dimension, Giftbox W x H x D = 305x68x168mm Weight, Giftbox 0.92kg Operating voltage See the supplied power adapter Operating frequency See the supplied power adapter 0°C to 40°C Operating 32°F to 104°F Temperature... -
Page 17: Environmental Information
No warranty, express or implied, with respect to the product is extended directly to you from or on behalf of Tilgin AB. Limited warranties may be granted to you by the equipment provider in its capacity as reseller of the product. Please contact your equipment provider for information regarding warranties for the product. -
Page 18: Declaration Of Conformity
Product Name: Home Gateway Product Model Name: HG2280 series, HG2380 series We, Tilgin AB, declare under the sole responsibility that the above named product conforms to the essential requirements of the European Union Directives below. 2014/53/EU The Radio Equipment Directive... - Page 20 Under the copyright laws this Quick Guide, artwork, software, and product designs may not be copied, in whole or part, without the written consent of Tilgin AB. Under the law, copying includes translation to another language or format.
