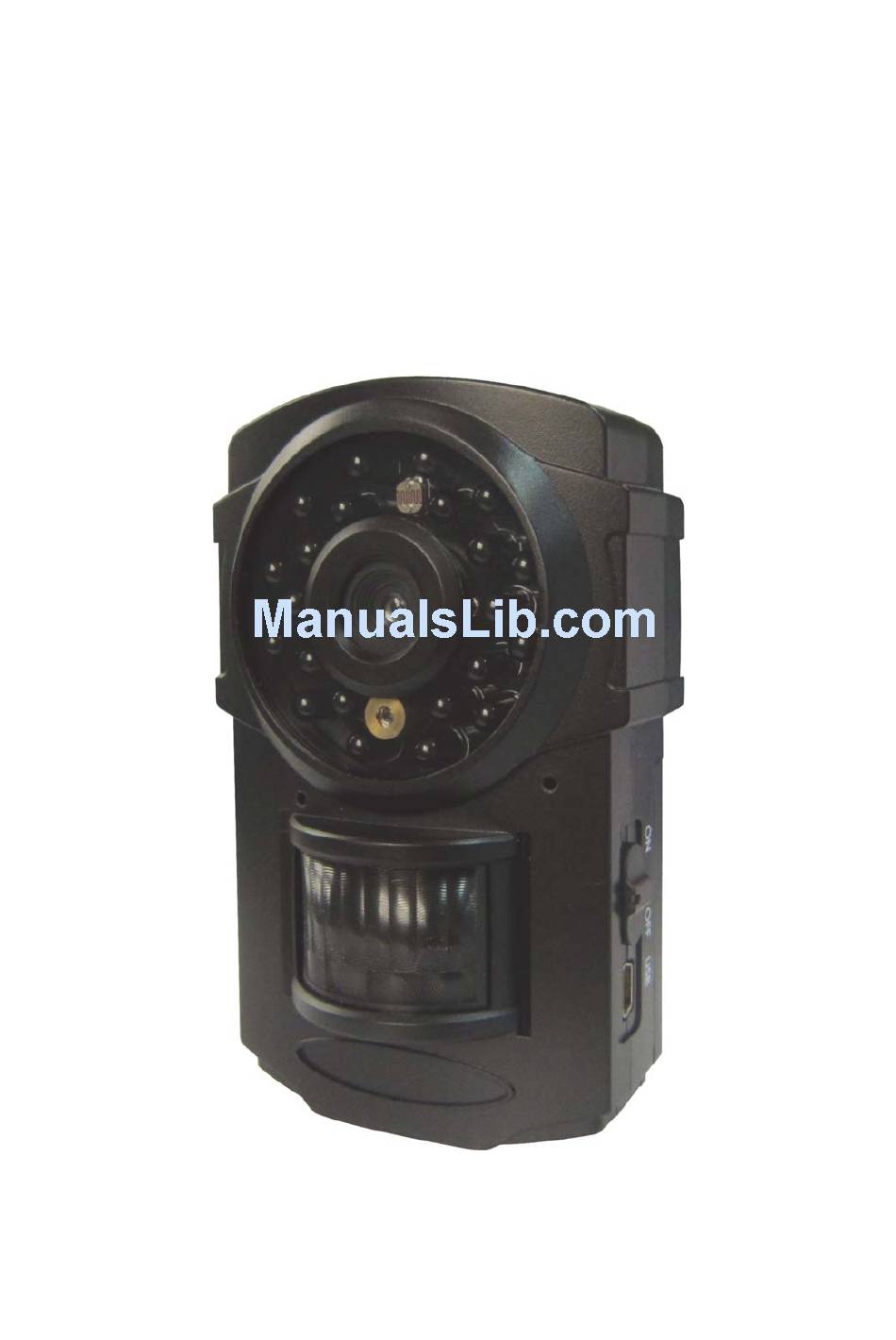

- Page 1 MMS/GPRS Security Camera User’s Manual BG30L ： For Model BG30L...
-
Page 2: Table Of Contents
Content Product Feature...................2 1.1 General Description ..............….2 1.2 Camera Body Interfaces..............2 1.3 Shooting Information Display ............3 1.4 Product Feature................4 2 Cautions ....................6 3 Quick Start .................... 7 3.1 Install TF card and SIM card ............7 3.2 Insert the battery and Power on ............. 7 3.3 Quick start ..................8 4 Basic use and settings................. -
Page 3: Product Feature
BG30 series Product Feature Product Feature 1.1 General Description The BG30 is a mini GSM MMS Alarm system, based on GSM GPRS MMS (Multimedia Massage Service), GSM SMS (Short Message Service) and GSM Voice Technologies. When it activated, will send MMS(Pictures) alerts to your cellphone or Email and send Text Alerts by SMS to your mobile phone immediately. -
Page 4: Shooting Information Display
BG30 series Product Feature 1.3 Shooting Information Display When the camera is turned on (the power switch is slid to ON position), the camera setting information will be displayed in the monitor. -
Page 5: Product Feature
BG30 series Product Feature 1.4 Product Feature 1. This product can use TF card (Micro-SD card) to store images. 2. It can send MMS images to the Mobile phone or to an e-mail... - Page 6 BG30 series Product Feature address. 3. Integrated PIR detector to provide precise and timely alarm. 4. Built-in CMOS camera and infrared LED. Even in dark environment, camera can get clear images. 5. SMS remote control: User can control the camera by SMS command or calling.
-
Page 7: Cautions
BG30 series 2 Cautions 2 Cautions Please use this product according to the law. Respect one another’s privacy. Neither monitor another’s home nor private. We hold no responsibility for the illegal use of this product. We don’t guarantee for the document veracity, reliability or any content except regulate in proper laws. -
Page 8: Quick Start
BG30 3 Quick Introductions 3 Quick Start 3.1 Install TF card and SIM card Open the battery cover. Insert TF card and SIM card into the card slot accordance with the direction shown. Follow the right direction 3.2 Insert the battery and Power on Open battery... -
Page 9: Quick Start
BG30 3 Quick Introductions Quick start Settings Must Be Done Must set a master number to the camera. 2 Must correctly set the network parameters for MMS and E-mail. 3 Must have at least one receiving phone number and one receiving E-mail address. - Page 10 BG30 3 Quick Introductions A new file named”profile.txt” is created automatically in a new folder named “MMS” in the TF card. Reedit the file to set the MMS parameters, below is for reference: Step3: Choose “Send Mode” There are 3 mode: Number(Send MMS to mobile phone),E-mail(Send images to E-mail address),and Local(Just store images in the TF card, do not send out).
- Page 11 BG30 3 Quick Introductions Arm status is the work status. If you are in Setting Status, there are two methods to go to Arm Status: 1 Do not press any key and wait for 1 minute, the camera will automatically switch to Arm Status;...
- Page 12 BG30 3 Quick Introductions Step6: Get on spot images via SMS When the camera is armed and the Send Mode is Number, you can send a text message “#T#” to your camera’s SIM card number to get an on spot image.
-
Page 13: Basic Use And Settings
BG30 4 Basic use and settings 4 Basic use and settings 4.1 Mount the camera Camera can be mounted on a wall or put down on any suitable horizontal surface. 1)According to base board installing hole space, make holes on the wall with a power drill. -
Page 14: User Authorization
BG30 4 Basic use and settings the images in the TF card but doesn’t send out. Only insert SIM card: After take photos and it just sends out via MMS or email but doesn’t store in the TF card. Both insert TF and SIM card: take photos, store in the TF card and send out to your phone or your email.）... -
Page 15: Set Normal Users
BG30 4 Basic use and settings camera. Method1: Send SMS command: Send #BG30#5555#your phone number# to your camera’s SIM card. Here 5555 is the original master’s password. Please note all the SMS commands should begin and end with “#”. For example, if you phone number is 13800138000,you can edit #BG30#5555#13800138000# to set your phone number as the master number. -
Page 16: Set Mms Parameters
BG30 4 Basic use and settings 4.6 Set MMS parameters If you want get instant MMS images when the camera is triggered, you should set the MMS parameters correctly. Method1: Send SMS command: #M#URL#IP#Port#APN#Account#Password# The following chart shows the meaning of each field. Please note there is a “#”... -
Page 17: Set Email Parameters
BG30 4 Basic use and settings For more details of URL, APN, IP, Port, Account and Password, please contact your network service provider. Set email parameters You also can choose Send Email mode to get the pictures via a cheaper channel. This Send Email mode can send out the pictures via GPRS internet but WAP, so the communication cost is much lower than MMS. -
Page 18: Set Receiving Email Address
BG30 4 Basic use and settings For more details of GPRS APN, GPRS Account and GPRS Password, please contact your network service provider. 4.8 Set receiving email address Method1: Send SMS command: #N#Receiving phone number 1# Receiving phone number 2# Receiving phone number 3# Receiving phone number 4# The receiving phone number1 is the master number. -
Page 19: Get On Spot Photo
BG30 4 Basic use and settings receiving phone number 2, receiving phone number 3, Method2: Editing the profile.txt: fill the receiving phone number field. 4.9 Get on spot photo Method: Send SMS command: Edit SMS #T# send to your camera’s SIM card. If fail, reply SMS: Photo error:xx , Settings error:xx , MMS error:xx or Time out! If success, the camera will take an on-spot picture and send to... -
Page 20: Check Camera Settings
BG30 4 Basic use and settings Edit SMS #D# and send to your camera’s SIM card. If success, reply SMS: Disarm mode is active! If fail, reply SMS: Command error! Please check again. Method2: Use the remote control Use the remote control, press the button “D” to disarm the camera;... - Page 21 BG30 4 Basic use and settings Format the SD-card. All images and Format Enter videos in the SD-card will be deleted. Choose how long the camera will stop 0–59 seconds, functioning after each triggering. The 1 Minute Interval 1-60 minutes camera’s PIR will be disabled during this interval.
- Page 22 BG30 4 Basic use and settings each triggering. The default value is 1 minute. Press “◄” and “►” to decreases or increases the value. ▼Timer This parameter defines a certain time lapse in a day when the camera can be triggered, while in the rest of the time lapse the device is shut off.
-
Page 23: Format Tf Card
BG30 4 Basic use and settings If success，reply SMS: Interval 10:30, Burst 2, Work Day 1110001, Time Switch OFF, Date Time: 2011/8/2418:12:12, Active Zone: 0111111 If fail, reply SMS: Command error! Please check again. Note: #E# can’t be omitted when use this command to change any camera settings. -
Page 24: Use The Remote Control
BG30 4 Basic use and settings If success，it will reply SMS: A: Arm, D: Disarm, H: help, L: look over settings, T: take photo. 4.17 Use the Remote control You can use the remote control to easily arm (button A) or disarm (button D). -
Page 25: Load And Remove A Wireless Sensor
BG30 4 Basic use and settings 4.18 Load and remove a wireless sensor Any 433MHz wireless sensor, such as infrared body sensor, wireless door magnet, wireless smoke detector etc. can be set as an alarm sensor of the camera. Method to load or remove a wireless sensor: 1. -
Page 26: Sms Command List
BG30 5 SMS command list 5 SMS command list Below is a SMS command list for example. Function SMS Command Master #BG30#5555#13800138000# Number Normal #N#13800138001#13800138002#138001380 Users #M#http://mmsc.monternet.com#10.0.0.172 Parameters #80#cmwap# #S#bmctest123@sina.com#bmc123#25#cmn Email et#smtp.sina.com# Parameters Receiving #N#12345678901#12345678902# Email address Receiving #R#mail1@163.com # mail2@163.com# Email Address spot Photo... -
Page 27: Appendix : Technical Specifications
BG30 AppendixⅠ: Technical Specifications AppendixⅠ: Technical Specifications Image Sensor 0.3MP Color CMOS F/NO=3.1mm Lens FOV(Field of View)= 80°(BG30L) Detection Range BG30L:22M; Display Screen 1.4” LCD Memory Card 2GB TF card Picture Resolution PIR Sensor Multi Zone Trigger Time 0.3s Weight * 0.15 kg... -
Page 28: Appendix : Parts List
BG30 Appendix Ⅱ: Parts List AppendixⅡ: Parts List Part Name Quantity Security camera Remote control Power adaptor Lithium battery USB cable Universal mounting kit Adhesive tape User Manual Warranty Card 2G TF Card 433M Wireless sensor (Option) - 27 -...
