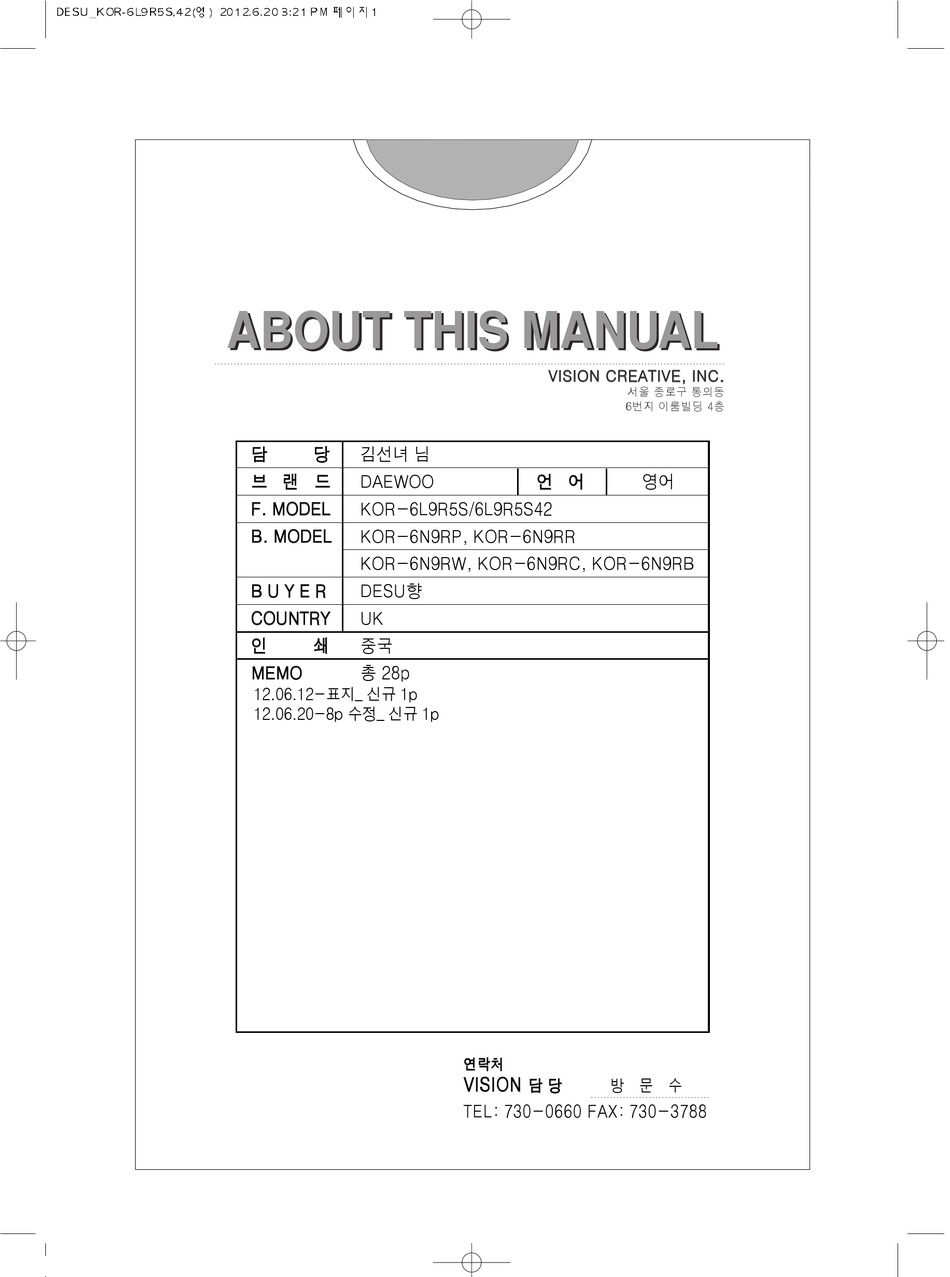

ABOUT THIS MANUAL
ABOUT THIS MANUAL
? ?
@ @
ABC D
E E F F G G
H*)I$$
M M - - & & N N $ $ H H ) ) O O
P$(Q6OR(S#T6OR(S#=U
V V - - & & N N $ $ H H ) ) O O
P$(Q6%R(W,&P$(Q6%R((&
P$(Q6%R(I,&P$(Q6%R(',&P$(Q6%R(V
V V & & X X & & Y Y & & ) ) & & ( (
H)#XZ
' ' $ $ X X % % + + ( ( Y Y
XP
[ [
\ \
]^
N N ) ) N N $ $
_ U`a
mU-k6-mUQn8o&pq ma
mU-k6-UkQ`a&gro&pq ma
! ! " " # # " " $ $ % % &
&
' ' ( ( ) ) * * + + " " ! ! ) ) , , & & " " % % ' ' - -
./ 012 345
678 9:;< =>
J J K K
bcd
!"#"$%
? @
e f g
+)Oh ijkQk66k&M*lh ijkQji``
LK
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Daewoo KOR-6N9RP
Summary of Contents for Daewoo KOR-6N9RP
- Page 1 ABOUT THIS MANUAL ABOUT THIS MANUAL ! ! " " # # " " $ $ % % & & ' ' ( ( ) ) * * + + " " ! ! ) ) , , & & " " % % ' ' - - ./ 012 345 678 9:;<...

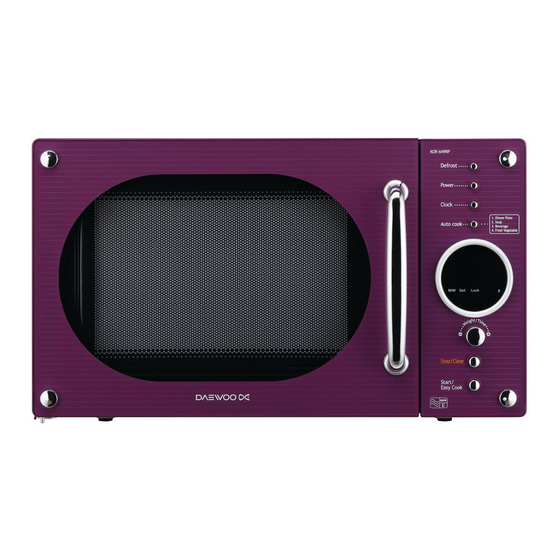

- Page 2 MICROWA VE OVEN KOR-6N9RP / 6N9RR / 6N9RW / 6N9RC / 6N9RB OPERATING INSTRUCTIONS Before operating this oven, please read these instructions completely.
-
Page 3: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. -
Page 4: Table Of Contents
TABLE OF CONTENTS • PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY..1 • IMPORTANT SAFETY INSTRUCTIONS ..................3 • EARTHING INSTRUCTIONS .......................5 • INSTALLATION ..........................5 • SPECIFICATIONS ........................6 • IMPORTANT ..........................6 • FEATURES DIAGRAM ........................7 • OPERATION PROCEDURE ......................9 • ZERO STAND-BY - HOW IT WORKS ..................10 •... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING : To prevent fire, burns, electric shock and other warnings: Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven: 1. -
Page 6: Save These Instructions
13. When heating food in plastic or paper are able to be overheated beyond the containers, keep an eye on the oven boiling point without appearing to be due to the possibility of ignition. boiling due to surface tension of the liquid. -
Page 7: Earthing Instructions
EARTHING INSTRUCTIONS This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a earthing wire with an earthing plug. The plug must be plugged into an outlet that is properly installed and earthed. -
Page 8: Specifications
SPECIFICATIONS POWER SUPPLY 230V~ / 50Hz, SINGLE PHASE WITH EARTHING POWER CONSUMPTION 1200 W MICROWAVE OUTPUT POWER 800 W FREQUENCY 2450 MHz OUTSIDE DIMENSIONS (W X H X D) 446 X 270 X 346 (mm) CAVITY DIMENSIONS (W X H X D) 295 X 219 X 303 (mm) NET WEIGHT APPROX. -
Page 9: Features Diagram
FEATURES DIAGRAM 1 Door latch-When the door is closed it will 6 Control panel automatically shut off. If the door is opened 7 Glass cooking tray-Made of special heat while the oven is operating, the magnetron will automatically shut off. resistant glass. - Page 10 FEATURES DIAGRAM ( continued ) 1 Display - Cooking time, power level and 5 Auto cook- Used to cook using a program or indicators are displayed. to reheat. 2 Defrost- Used to defrost foods by weight or 6 Dial knob- Used to set the time and weight. time.
-
Page 11: Operation Procedure
OPERATION PROCEDURE This section includes useful information about oven operation. 1. Plug power supply cord into a 230V 50Hz power outlet. 2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking. -
Page 12: Zero Stand-By - How It Works
ZERO STAND-BY - HOW IT WORKS What is Stand-by Power ... This oven has a special feature that can reduce stand-by power consumption by not unplugging or totally switching off. So the oven will get turned off automatically when not in use for 10 minutes after finishing working. Although the oven is always plugged in, the oven does not consume energy in power save mode at all. -
Page 13: Controls
CONTROLS WEIGHT DEFROSTING WEIGHT DEFROST lets you easily defrost food by eliminating guesswork in determining defrosting time. The minimum weight for WEIGHT DEFROST is 200 gram and the maximum weight is 3,000 gram. Follow the steps below for easy defrosting. 1. -
Page 14: Cooking In One Stage
COOKING IN ONE STAGE 1. Put food in the oven and close the door. 2. Press Power button. The M/W indicator appears and the display Power (Select the desired power will show what you selected. level.) NOTE: If step 1 is omitted, the oven will cook at full power. -
Page 15: Easy Cook
EASY COOKING EASY COOK allows you to reheat for 30 seconds at 100% (full power) by simply pressing the Easy cook button. By repeatedly pressing the Easy cook button, you can also extend reheating time to 5 minutes by 30 seconds. -
Page 16: Child Safety Lock
CHILD SAFETY LOCK Child safety lock feature may lock the control panel to prevent the oven from being accidentally started or used by children. To lock, press and hold TIMER button for 3 seconds. Then a long beep will sounds. To unlock, press and hold TIMER button for 3 seconds. -
Page 17: Caring For Your Microwave Oven
CARING FOR YOUR MICROWAVE OVEN The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. 1. -
Page 18: Questions And Answers
QUESTIONS AND ANSWERS * Q : Can the oven be used with the glass tray or * Q : What does “standing time” mean? roller guide removed? A : “Standing time” means that food should be A : No. Both the glass tray and roller guide must removed from the oven and covered for always be used in the oven before cooking. -
Page 19: Cooking Instructions
COOKING INSTRUCTIONS Only use utensils that are suitable for use in microwave ovens. To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken choosing the utensil. If the utensil is marked microwave-safe, you do not need to worry. -
Page 20: Use Your Microwave Oven Safely
USE YOUR MICROWAVE OVEN SAFELY General Use Do not attempt to defeat or tamper with safety Do not operate the oven if door seals or sealing interlocks. surfaces are damaged; or if door is bent; or if Do not place any object between the oven front hinges are loose or broken. -
Page 21: Microwaving Principles
MICROWAVING PRINCIPLES Microwave energy has been used in this country to cook and reheat food since early experiments with RADAR in World War ll. Microwaves are present in the atmosphere all the time, both naturally and manmade sources. Manmade sources include radar, radio, television, telecommunication links and car phones. -
Page 22: Cooking Techniques
COOKING TECHNIQUES STANDING TIME STARTING TEMPERATURE Dense foods e.g. meat, jacket potatoes and cakes, The colder the food, the longer it takes to heat up. Food require standing time(inside or outside of the oven) after from a fridge takes longer to reheat than food at room cooking, to allow heat to finish conducting to cook the temperature. -
Page 23: Defrosting Guide
DEFROSTING GUIDE s Do not defrost covered meat. Covering might allow s When defrosted, food should be cool, but softened in cooking to take place. Always remove outer wrapper all areas. If still slightly icy, return to microwave oven and tray. Use only containers that are microwave- very briefly, or let stand a few minutes. -
Page 24: Cooking & Reheating Chart
COOKING & REHEATING CHART Cooking chart Power Cooking Time Item Special Instruction Level Per lb./450g MEAT Beef joint -Rare P-80 8-10 min. - Chilled meat and poultry should be removed from the refrigerator at least 30 minutes before -Medium P-80 9-11 min. -
Page 25: Reheating Chart
Reheating chart • Baby food particularly needs to be checked carefully before serving to prevent burns. • When heating pre-packaged ready-cooked foods, always follow the pack instructions carefully. • If you freeze foods which were bought from the fresh or chilled counters, remember that they should be thoroughly thawed before following the heating instructions on the pocket. -
Page 26: Vegetable Chart
VEGETABLE CHART Use a suitable glass pyrex bowl with lid. Add 30-45ml cold water(2-3 tbsp.) for every 250g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. -
Page 27: Recipes
RECIPES TOMATO & ORANGE SOUP 1 oz.(25g) butter 1. Melt the in a large bowl on P-HI for 1 minute. 1 medium onion, chopped 2. Add the onion, carrot and potato and cook on 1 large carrot & 1 large potato, chopped P-HI for 6 minutes. -
Page 28: White Sauce
BLUE CHEESE & CHIVE JACKETS 2 baking potatoes, 1. Prick each potato in several places. Cook on (approx.9 oz.(250g) each) P-HI for 12-13 minutes. Halve and scoop the 2 oz.(50g) butter flesh into a bowl, add the butter, cheese, chives, 4 oz.(100g) blue cheese, chopped mushrooms, salt and pepper, mix thoroughly. - Page 29 SCRAMBLED EGG oz.(15g) butter 1. Melt the butter in a bowl on P-HI for 1 minute. 2 eggs 2. Add the eggs, milk and seasoning and mix well. 2 tbsp(30ml) milk 3. Cook on P-HI for 3 minutes, stirring every 30 salt &...
