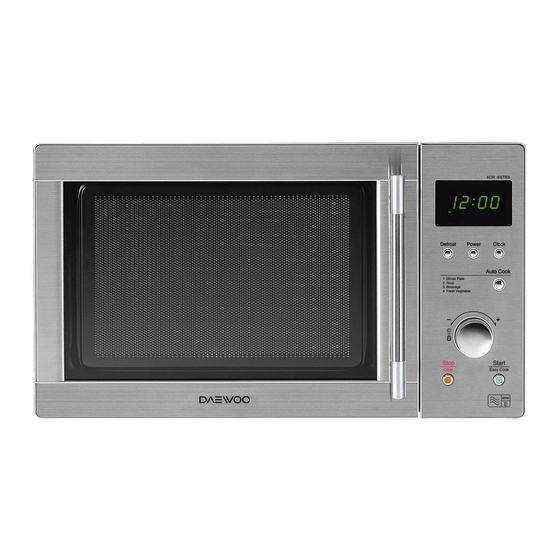

MICROWA VE OVEN KOR-6N7RS OPERATING INSTRUCTIONS &COOK BOOK Helpline number:0870 100 2525 Before operating this oven, please read these instructions completely.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
IMPORTANT SAFETY INSTRUCTONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE When using electrical apliances, basic safety precautions should be followed, including the following: WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 11.
Page 5
General Use Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven: 11. Do not use the oven for any reason other than 15. Keep an eye on the oven from time to time when food preparation, such as for drying clothes, food is heated or cooked in disposable containers paper, or any other nonfood items or for sterilizing...
EARTHING INSTRUCTIONS This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having an earthing wire with a earthing plug.
FEATURES DIAGRAM 1. Safety interlock system-Prevents the oven 5. Door seal-The door seal surfaces prevent from operating while the door is opened. microwaves escaping from the oven cavity. The oven will only operate with the door fully closed. When the door is open, the oven turns 6.
Page 8
FEATURES DIAGRAM ( continued ) 1. Display- Cooking time, power level, indicators 5. Clock- Used to set clock. and present time are displayed. 6. Dial knob- Used to set the time and weight. 2. Auto cook- Used to cook using a program or to reheat.
OPERATION PROCEDURE This section includes useful information about oven operation. 1. Plug power supply cord into a 230V 50Hz power outlet. 2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking.
CONTROLS SETTING THE CLOCK When the oven is first plugged in, the display will flash “ :0” and a tone will sound. If the AC power ever turns off, the display shows “ :0” when the power comes back on. 1.
TIME DEFROSTING When TIME DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off. 1. Press Defrost button. The DEF. indicator & “0” appear and the g Defrost indicator starts blinking.
COOKING IN ONE STAGE 1. Press Power button. The M/W indicator appears and the display will (Select the desired power show what you selected. Power level.) This example shows power level 6. NOTE: If step 1 is omitted, the oven will cook at full power.
EASY COOKING EASY COOK allows you to reheat for 30 seconds at 100% (full power) by simply pressing the Easy cook button. By repeatedly pressing the Easy cook button, you can also extend reheating time to 5 minutes by 30 seconds.
CHILD SAFETY LOCK SAFETY LOCK lock prevents unwanted oven operation such as by small children. To set, press and hold Stop/Clear button for 3 seconds, Lock indicator appears and a beep sounds. To cancel, press and hold Stop/Clear button for 3 seconds, Lock indicator disappears and a beep sounds. TO STOP THE OVEN WHILE THE OVEN IS OPERATING 1.
SPECIFICATIONS POWER SUPPLY 230V AC 50Hz SINGLE PHASE WITH EARTHING POWER CONSUMPTION 1200 W MICROWAVE OUTPUT POWER 800 W FREQUENCY 2450 MHz OUTSIDE DIMENSIONS (W X H X D) 465 X 279 X 360 mm CAVITY DIMENSIONS (W X H X D) 290 X 220 X 306 mm NET WEIGHT APPROX.
CARE AND CLEANING Although your oven is provided with safety features, it is important to observe the following: 1. It is important not to defeat or tamper with safety interlocks. 2. Do not place any object between the oven front face and the door or allow residue to accumulate on sealing surfaces.
BEFORE CALLING FOR SERVICE You can often correct operating problems yourself. Note: If your microwave/grill oven fails to work properly, It is quite normal for steam to be emitted around the door locate the operating problem in the chart below and during the cooking cycle.
QUESTIONS AND ANSWERS * Q : I accidentally ran my microwave oven * Q : What does “standing time” mean? without any food in it. Is it damaged? A : “Standing time” means that food should be A : Running the oven empty for a short time will removed from the oven and covered for not damage the oven.
COOKING INSTRUCTIONS Only use utensils that are suitable for use in microwave ovens. To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken choosing the utensil. If the utensil is marked microwave-safe, you do not need to worry.
ARCING If you see arcing, press the the STOP/CLEAR button and correct the problem. Arcing is the microwave term for sparks in the oven. Arcing is caused by: • Metal or foil touching the side of the oven. • Foil not molded to food (upturned edges act like antennas). •...
MICROWAVING PRINCIPLES Microwave energy has been used in this country to cook and reheat food since early experiments with RADAR in World War ll. Microwaves are present in the atmosphere all the time, both naturally and from manmade sources. Manmade sources include radar, radio, television, telecommunication links and car phones.
COOKING TECHNIQUES STANDING TIME STARTING TEMPERATURE Dense foods e.g. meat, jacket potatoes and cakes, The colder the food, the longer it takes to heat up. require standing time(inside or outside of the oven) Food from a fridge takes longer to reheat than food after cooking, to allow heat to finish conducting to at room temperature.
DEFROSTING GUIDE • Do not defrost covered meat. Covering might allow cooking to take place. Always remove outer wrap and tray. Use only containers that are microwave-safe. • Begin defrosting whole poultry breast-side- down. Begin defrosting roasts fat-side-down. • The shape of the package alters the defrosting time. Shallow rectangular shapes defrost more quickly than a deep block.
DEFROSTING CHART Item and Weight Defrosting Time Standing Time Special Techniques BEEF Break apart and remove thawed Mineed beef 1 lb./454g 10-12 min. 15-20 min. portions with fork. Separate and rearrange once. Stewing Meat 1 lbs./675g 9-11 min. 25-30 min. Turn over after half the time.
COOKING & REHEATING CHART Item Power Level Cooking Time Per lb./450g MEAT Beef Standing / rolled Rib - Rare P-80 9-11 min. - Medium P-80 10-12 min. - well done P-80 12-14 min. Ground Beef (to brown for casserole) P-HI 5-7 min.
ITEM POWER LEVEL Cooking Time Standing Time Ravioli or pasta in sauce 1 cup P-HI 3-4 min. Cook covered in microwaveable casserole. 4 cups P-HI 8-11 min. Stir once halfway through cooking. Sandwich roll or bun 1 roll P-HI 20-30 sec. Wrap in paper tower and place on glass microwaveable rack * Note : Do not use recycled paper towels.
Page 27
VEGETABLES AMOUNT TIME SPECIAL INSTRUCTIONS Mixed vegetable frozen 10-oz./280g package 2-6 min. In a medium casserole dish, place 3 tbsp water. Peas fresh, shelled 2 lbs.(450g) unshelled 7-10 min. In a medium casserole dish, place cup water. frozen 10-oz.(280g) package 2-6 min.
RECIPES TOMATO & ORANGE SOUP 1 oz.(25g) butter 1. Melt the butter in a large bowl on P-HI for 1 1 medium onion, chopped minute. 1 large carrot & 1 large potato, chopped 2. Add the onion, carrot and potato and cook on P- lb(800g) canned, chopped tomatoes HI for 6 minutes.
BLUE CHEESE & CHIVE JACKETS 2 baking potatoes, 1. Prick each potato in several places. Cook on P- (approx.9 oz.(250g) each) HI for 12-13 minutes. Halve and scoop the flesh 2 oz.(50g) butter into a bowl, add the butter, cheese, chives, 4 oz.(100g) blue cheese, chopped mushrooms, salt and pepper, mix thoroughly.
Page 30
SCRAMBLED EGG oz.(15g) butter 1. Melt the butter in a bowl on P-HI for 1 minute. 2 eggs 2. Add the eggs, milk and seasoning and mix well. 2 tbsp(30ml) milk 3. Cook on P-HI for 3 minutes, stirring every 30 salt &...
