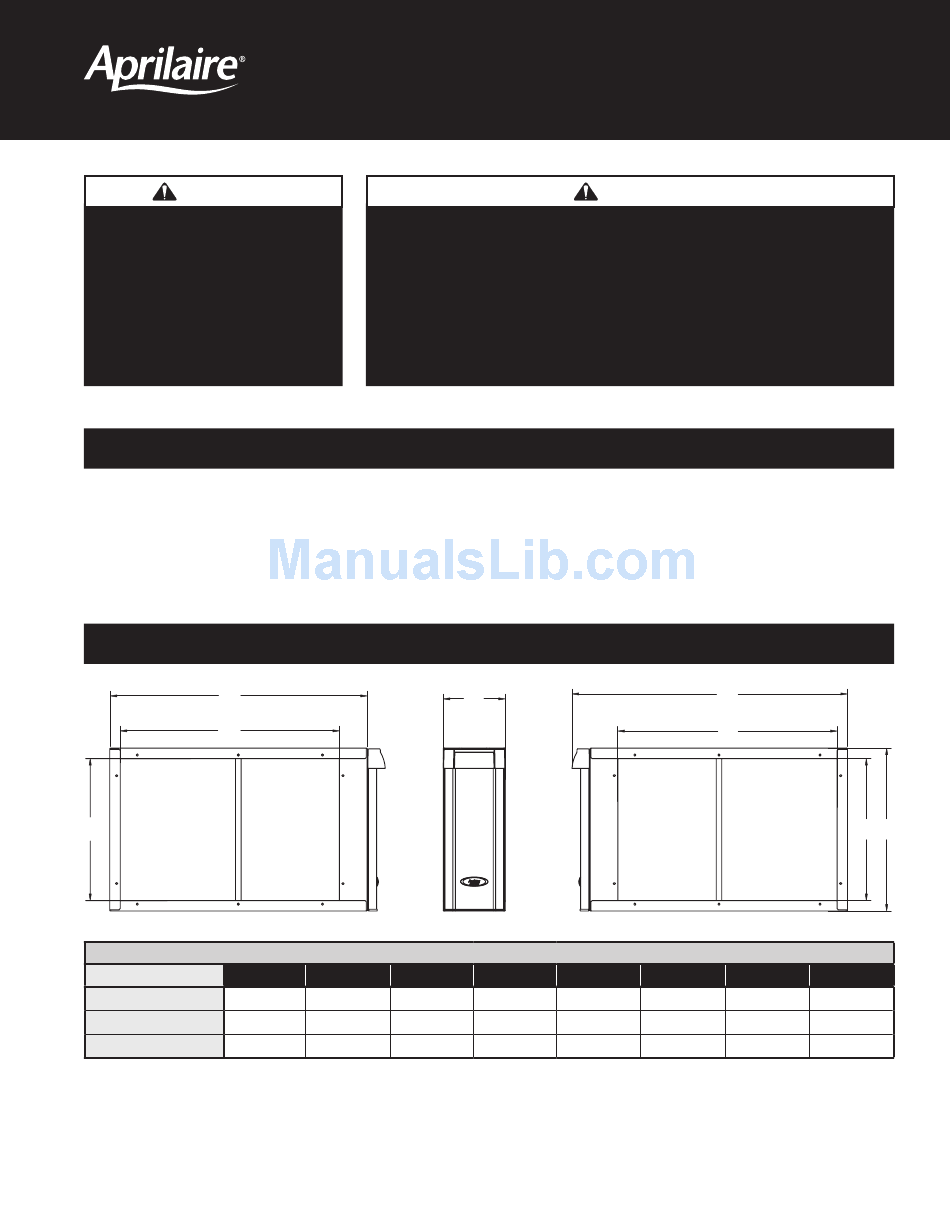

Aprilaire 1210 Installation Instructions

WARNING

1. High voltage may cause serious
injury from electrical shock.
Disconnect power to the
furnace/air handler before
starting installation.
2. Sharp edges may cause injury
from cuts. Use care when cutting
and handling sheet metal.

SPECIFICATIONS

Airflow Capacity: up to 2000 CFM maximum
Replacement Media:
1210, 2210, 3210: Model 210 or 213 with SelfSeal
1310, 2310, 3210: Model 310 or 313 with SelfSeal
1410, 2410, 3410: Model 410 or 413 with SelfSeal

DIMENSIONS

B
without door
C
A
Model A
1210, 2210, 3210 19-3/4
1310, 2310, 3310 18-1/16
1410, 2410, 3410 15-7/16
1. To prevent component failure, do not install the air cleaner on the warm
air supply or in an area where the temperature may exceed 140°F. This
may include areas above heat exchangers in downflow furnaces or above
exhaust flues in lowboy furnace cold air returns.
2. Installation must be done by a qualified heating and air conditioning
professional. Read instructions thoroughly before beginning installation.
3. Do not install air cleaner downstream of a UV light. UV lamps will cause
degradation of the filtering media.
Max. Equipment Weight:
Air Cleaner Operating Environment:
™
™
™
D
TABLE 1 – Dimensions (inches)
B C
25-3/8 21-3/16 6-3/4
20-1/16 15-7/8 6-3/4
28-1/16 23-7/8 6-3/4
Media Air Cleaners
Installation Instructions

CAUTION

Cabinet will support 400 lb. static load
Temperature: 0°F – 140°F
Humidity: 0-90% non-condensing
D E F
27-3/8 21-3/16
22-1/16 15-7/8
30-1/16 23-7/8
E
with door
F
G H
90-1333
G H
19-3/4 22-1/16
18-1/16 20-3/8
15-7/16 17-3/4
