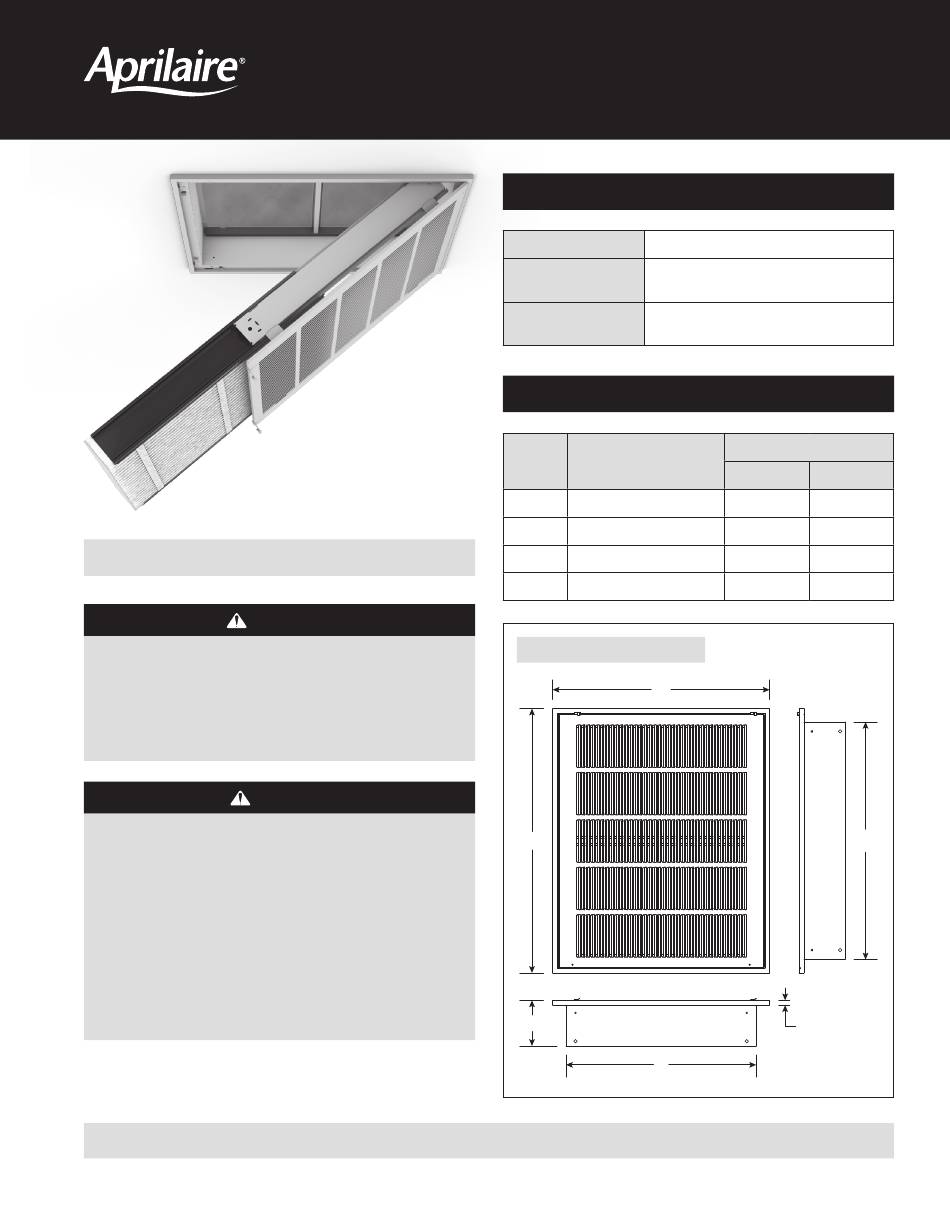

Aprilaire 1625FG Installation And Operating Instructions

READ AND SAVE THESE INSTRUCTIONS
WARNING
1. High voltage may cause serious injury from electrical shock.
Disconnect power to the furnace/air handler before starting
installation.
2. Sharp edges may cause injury from cuts. Use care when cutting
and handling sheet metal.
CAUTION
1. To prevent component failure, do not install the air cleaner on
the warm air supply or in an area where the temperature may
exceed 140°F. This may include areas above heat exchangers in
downflow furnaces or above exhaust flues in lowboy furnace
cold air returns.
2. Installation must be done by a qualified heating and air
conditioning professional. Read instructions thoroughly before
beginning installation.
3. Do not install air cleaner downstream of a UV light. UV lamps
will cause degradation of the filter.
Visit www.aprilaire.com for more information on filter performance.
61001682 B2701549A 4.19

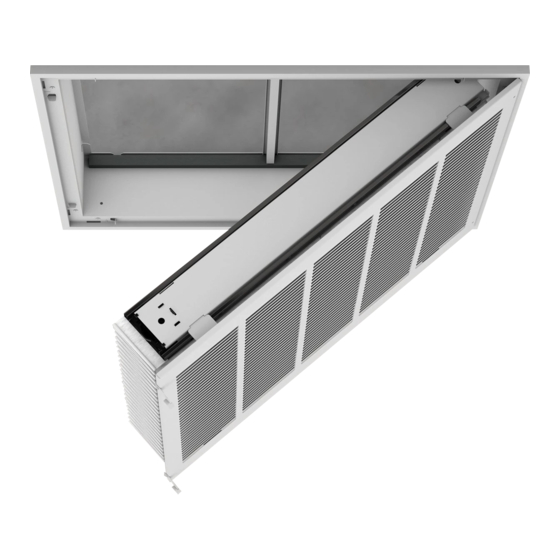

Filter Grille Air Cleaner
Installation and Operating Instructions
SPECIFICATIONS
Airflow Capacity Up to 2000 CFM maximum
1625FG: Model 610 or 613 with SelfSeal
Replacement Filter
2025FG: Model 810 or 813 with SelfSeal
Air Cleaner Operating Temperature: 0°F to 140°F
Environment Humidity: 0-90% non-condensing
DIMENSIONS
DIM DESCRIPTION
A Inner Frame Width
B Inner Frame Length
C Outer Frame Width
D Outer Frame Length
FIGURE 1 – DIMENSIONS (INCHES)
C
D
4.8
A
MODEL
1625FG 2025FG
16-1/16" 20-1/16"
25-1/16" 25-1/16"
18-15/16" 22-15/16"
27-15/16" 27-15/16"
B
0.5
90-2449
English 1
