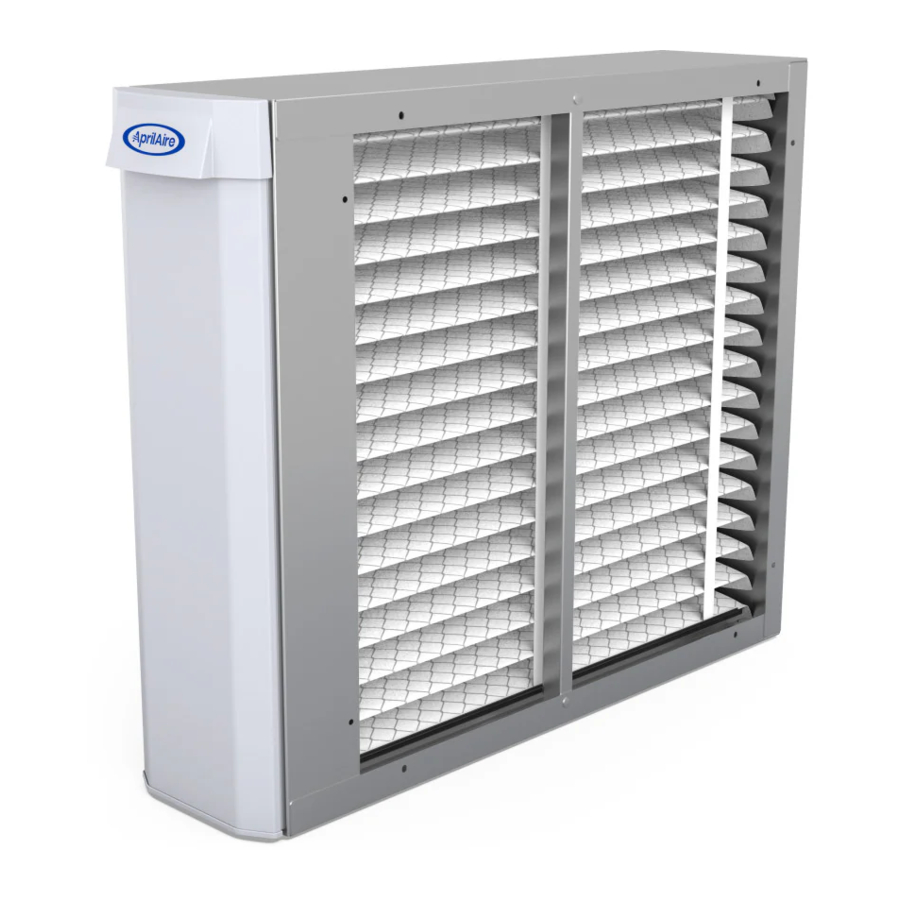

Aprilaire 110, 1210, 1310, 1410, 1910, 2210 - Air Cleaner Manual

SPECIFICATIONS

DIMENSIONS (INCHES)

PRESSURE DROP CHART

*Highest value shown is maximum recommended airflow capacity.

INSTALL THE AIR CLEANER CABINET

LOCATING THE AIR CLEANER

1. Leave sufficient space in front of the air cleaner for the removal of the filter (see FIGURE 1)

2. DO NOT INSTALL DOWNSTREAM OF A UV LIGHT. UV lamps will cause degradation of the filtering media.
3. FIGURES 2-4 show typical applications.



INSTALLATION

1. Disconnect power to the furnace or air handler at the electrical service panel

   ELECTRIC SHOCK HAZARD: 120 volts may cause serious injury from electric shock. Disconnect electrical power to the HVAC system before starting installation or servicing. Leave power disconnected until installation/service is completed.
2. Remove the air cleaner door from the outer housing and pull out the filter (see FIGURE 5)

3. If replacing an existing filter or air cleaner, remove the old unit from the system and thoroughly clean the blower compartment.
4. Cut an opening in the furnace/air handler to match the inside opening of the air cleaner outer housing Ensure the opening in the furnace/air handler is entirely within the blower compartment.
5. Use screws (field supplied) to mount the outer housing to the furnace/air handler There is no inlet or outlet side on the outer housing (the outer housing can be mounted on the left or right side of the furnace/air handler)
   NOTE FOR UPFLOW INSTALLATIONS: Provide support under the outer housing to ensure the quality of the seals (see FIGURE 6)

6. Mount the return ductwork to the outer housing
7. Seal all connections using mastic, foil tape, or silicone based caulk
8. Install the filter (see FIGURE 7)

9. Install the door
10. Reconnect power to the furnace or air handler at the electrical service panel
11. Make a cooling or heating call to test the system and make sure it operates as desired Ensure there are no air leaks in the air cleaner or return ductwork joints

OPERATION

When you choose a genuine AprilAire Whole-House Air Cleaner, you're choosing Healthy Air. Your air cleaner is specifically engineered to work with your AprilAire Air Filter to remove harmful particulates from your home's air such as mold, pet dander, airborne viruses, pollen, and odors Your genuine AprilAire Air Filter is designed for a perfect fit inside your AprilAire Air Cleaner and with this AprilAire Pure Fit Promise, delivering Healthy Air to your entire home has never been easier
The AprilAire Pure Fit Promise combines patented Self-Seal Technology, reducing bypass and improving filter performance, with our patented Interlock Rail System, meaning your high-performance air filter works in your air cleaner without assembly or cardboard or metal reinforcements.
Not only do our air filters ensure healthy air, they also help protect your HVAC equipment against dirt and dust buildup which can hinder performance AprilAire is proud to provide the Clean-Coil Commitment with your AprilAire Whole-House Air Cleaner and Air Filter. Should your new indoor air conditioner coil require professional cleaning in the next 10 years, AprilAire will pay $100 toward the cost of having the coil cleaned by an HVAC contractor For full details, please visit aprilaire.com/clean coil or call 800.334.6011
Please take a few minutes to read this manual and familiarize yourself with the product features and important routine maintenance. Be sure to register your product at aprilaire.com/warranty

PERFORMANCE

An AprilAire Whole-House Air Cleaner is installed by your contractor as one of the components in your heating, ventilation, and air conditioning (HVAC) system to clean the air that circulates through your home. When the HVAC equipment turns on, the air in your home travels through the registers and return duct(s) to the HVAC equipment where it is conditioned and sent back into the rooms of your house through the supply ducts.
Airborne contaminants in the home include those from natural sources such as dust and pollen and from man‑made sources such as tobacco smoke or exhaust Removing these particles keeps the HVAC equipment components clean and, more importantly, helps ensure Healthy Air throughout the entire home.
Continuous air cleaning with your AprilAire Whole-House Air Cleaner will be accomplished when your thermostat is set for continuous air circulation ("Fan On"). If continuous air cleaning is not required, or desired, set your thermostat to "Fan Auto".

MAINTENANCE

Regular replacement of the filter is very important to keeping your HVAC system clean and preventing damage to it. For effective whole-home air purification, your AprilAire Air Cleaner requires genuine AprilAire Replacement Filters
AprilAire recommends replacing your filter every 6-12 months depending on the filter model. Your contractor may recommend more frequent filter replacement depending on HVAC system operation time and the amount of people in the home and their activities The size of the home, amount of carpet, number of pets or smokers, and pollution level in your area all may contribute to your maintenance schedule.

CHANGING THE FILTERS
Replace the filter with genuine AprilAire Filters designed for your AprilAire Air Cleaner.

Follow the step by step directions on the filter carton to ensure that it is installed in the proper orientation – the outlet side of the filter is the expanded metal
The model number of your replacement filter can be found on the label inside of the air cleaner door (see FIGURE 8) along with other options for upgrading your filtration.

Turn the thermostat mode to off and the fan to auto before removing air cleaner door

REPLACEMENT FILTERS

*Contaminants removed based on air passing through the filtering system.

REMOVAL EFFICIENCY (BASED ON PARTICLE SIZE)

Test Method: MERV 10-16 – ASHRAE 52.2.2017, EAC – AHRI 680-2017

SAFETY INSTRUCTIONS
