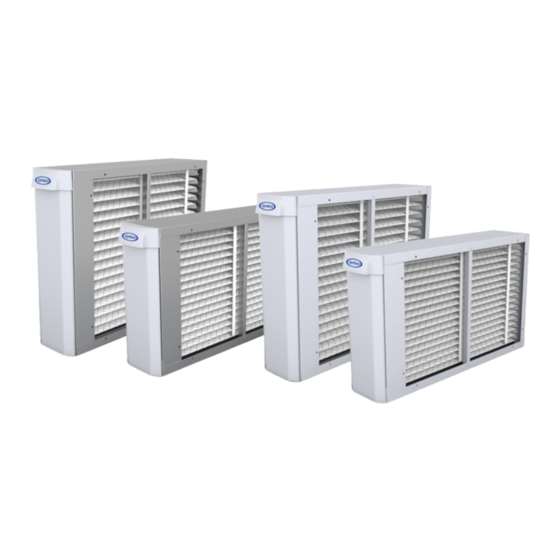

Summary of Contents for Aprilaire 1110
-
Page 1: Table Of Contents
INSTALL THE AIR CLEANER CABINET 4 APRILAIRE 10-YEAR CLEAN COIL COMMITMENT 8... -
Page 2: Safety Instructions
• Dropping may cause personal injury or equipment damage. Handle with care and follow installation instructions. SPECIFICATIONS AIR CLEANER MODEL 1110 1210, 2210, 2216 1310, 2310 1410, 2410, 2416 1910 Up to 1200 CFM Up to 2000 CFM... -
Page 3: Dimensions
DIMENSIONS (INCHES) WITHOUT DOOR WITH DOOR 90‑1333 AIR CLEANER MODEL 1110 15‑7/16 20‑1/16 17‑3/8 6‑3/4 22‑1/16 17‑3/8 15‑7/16 17‑3/4 1210, 2210, 2216 19‑3/4 25‑3/8 21‑3/16 6‑3/4 27‑3/8 21‑3/16 19‑3/4 22‑1/16 1310, 2310 18‑1/16 20‑1/16 15‑7/8 6‑3/4 22‑1/16 15‑7/8 18‑1/16 20‑3/8 1410, 2410, 2416 15‑7/16... -
Page 4: Install The Air Cleaner Cabinet
INSTALL THE AIR CLEANER CABINET FIGURE 2: HORIZONTAL INSTALLATION LOCATING THE AIR CLEANER 1. Leave sufficient space in front of the air cleaner for the AIRFLOW removal of the filter (see FIGURE 1) 2. DO NOT INSTALL DOWNSTREAM OF A UV LIGHT. UV lamps will cause degradation of the filtering media. -
Page 5: Installation
INSTALLATION FIGURE 5 1. Disconnect power to the furnace or air handler at the electrical service panel WARNING ELECTRIC SHOCK HAZARD: 120 volts may cause serious injury from electric shock. Disconnect electrical power to the HVAC system before starting installation or servicing. Leave power disconnected until installation/service is completed. -
Page 6: Performance
Your genuine AprilAire recommends replacing your filter every 6-12 AprilAire Air Filter is designed for a perfect fit inside your months depending on the filter model. Your contractor may AprilAire Air Cleaner and with this AprilAire Pure Fit Promise,... -
Page 7: Replacement Filters
Dander Smoke 1210 1410 AIR CLEANER 1310 1510 1910 2210 2216 2310 2410 2416 2516 1110 MODEL 1620 1610 FILTER MODEL Healthy Air 13+ MERV Removes Pet & Cooking Odors, VOCs & Particulate RATING Pollen Mold Bacteria Dust Dust Mite... -
Page 8: Removal Efficiency
AprilAire Customer Service at 1.800.334.6011 Monday through Friday, 7:00 a.m. – 5:00 pm Central Time At the sole discretion of AprilAire, you may be required to: return the product not later than thirty (30) days after the warranty period to the place of purchase or...
Need help?
Do you have a question about the 1110 and is the answer not in the manual?
Questions and answers

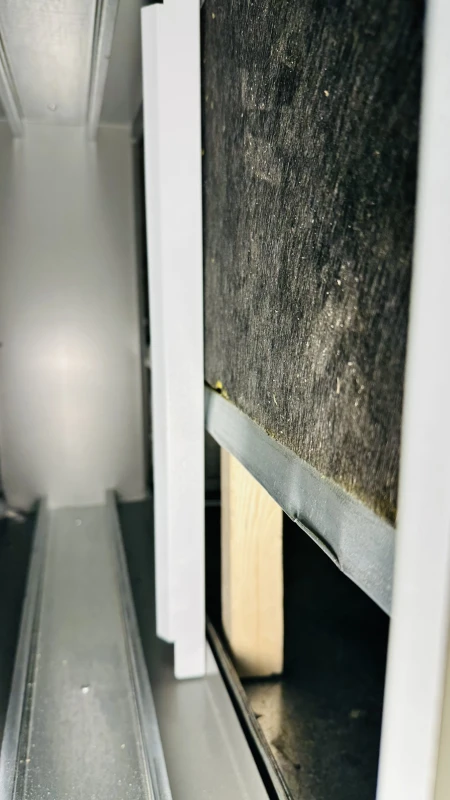

I've recently had a new heat pump installed with an AprilAire 2416 Air Cleaner. In the installation manual, "Figure 4 Upflow Installation" implies that the inside opening on the plenum box side of the cleaner can be smaller than the opening on the return duct side. My cleaner is installed with a 23x15 on the return duct side and a much smaller 23x6 opening on the plenum box side.That seems likely to restrict airflow and possibly cause extra noise and extra strain on the blower. How concerned should I be?
