Meyer Sound UPA-2C Operating Instructions

Download this manual

UPA-2C

Loudspeaker

Operating Instructions

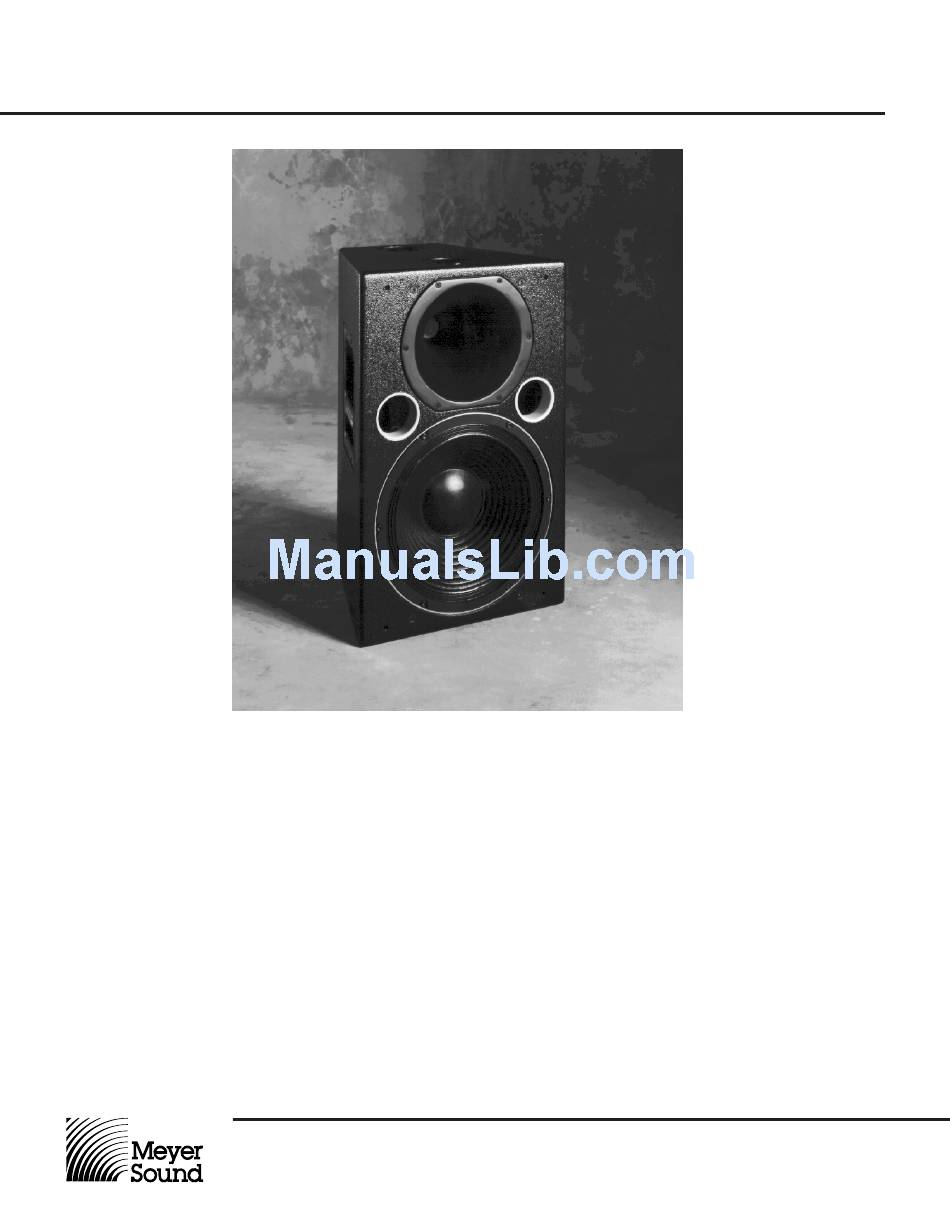

The Meyer Sound UPA-2C is a compact, high-Q

arrayable loudspeaker designed to perform in a

variety of sound reinforcement applications. It is a

bi-amplified system consisting of a proprietary 12-

inch low-frequency cone driver in a vented

enclosure with a 60-degree high-frequency horn

and driver.

Meyer Sound Laboratories, Inc.

2832 San Pablo Avenue

Berkeley, CA 94702

The UPA-2C is designed to be operated as a system

with the Meyer Sound M-1A Control Electronics Unit

(one M-1A per channel). The M-1A comprises

electronic crossover, Meyer Sound exclusive

SpeakerSense™ driver protection circuitry, and

amplitude and phase response alignment circuitry

optimized for the loudspeaker.

Need help?

Do you have a question about the UPA-2C and is the answer not in the manual?

Page 1 Loudspeaker Operating Instructions The Meyer Sound UPA-2C is a compact, high-Q The UPA-2C is designed to be operated as a system arrayable loudspeaker designed to perform in a with the Meyer Sound M-1A Control Electronics Unit variety of sound reinforcement applications. It is a (one M-1A per channel).
Page 2 Meyer Sound. may be acceptable in applications where high pressure Connections The UPA-2C is a biamplified system and must be used with Note: If you are using standard Meyer Sound loudspeaker the M-1A Control Electronics Unit. The M-1A functions as...
Page 3 All load ratings are based on a straight tensile Placement and Arraying The high frequency horn of the UPA-2C adds very well in The UPA-2C is a high-Q loudspeaker, designed to provide the horizontal axis, and the apparent sources of both high...
Page 4 2.63" 12.75" 7.50" 14.50" 7.13" 14.50" 10.63" 22.38" Meyer Sound Part Number 05028007.01 Revision A. © Meyer Sound, 1995. All rights reserved. This document may not be Continuous SPL (dB) reproduced without permission. Meyer Sound Laboratories, Inc. 2832 San Pablo Avenue...
