T E AT R O N I C S L I G H T I N G C O N T R O L S ,
T E AT R O N I C S L I G H T I N G C O N T R O L S , I N C .
I N C .
Owner's Manual

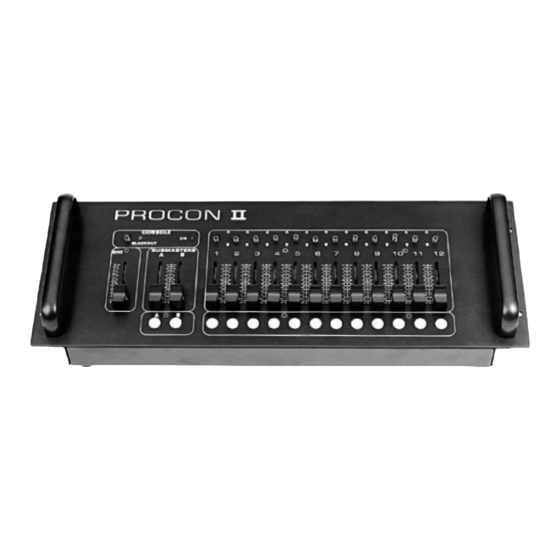

PROCON II
LIGHTING CONTROL CONSOLE
TEATRONICS LIGHTING CONTROLS, INC.
1236 Los Osos Valley Rd., Ste. G
Los Osos, CA 93402
Phone: (805) 528-6900
FAX: (805) 528-9345
PROCON II
12/01/94
12/05/97
Lighting Control Console
Page//
Advertisement
Table of Contents
Summary of Contents for Teatronics Lighting Controls PROCON II
- Page 1 T E AT R O N I C S L I G H T I N G C O N T R O L S , I N C . I N C . Owner's Manual PROCON II LIGHTING CONTROL CONSOLE TEATRONICS LIGHTING CONTROLS, INC. 1236 Los Osos Valley Rd., Ste. G Los Osos, CA 93402 Phone: (805) 528-6900 FAX: (805) 528-9345...
- Page 2 I N C . INTRODUCTION Thank you for buying a Procon Controller from Teatronics Lighting Controls, Inc.. Before you read this owner’s manual, examine your equipment carefully for damage or discrepancies in the packing list. If shipping damage is evident, contact your carrier immediately to file a claim.
-
Page 3: Table Of Contents
TABLE OF CONTENTS RECEIVING YOUR EQUIPMENT ..................i TABLE OF CONTENTS ..................... ii INTRODUCTION ........................1 SETUP AND CONNECTION ....................2 OPERATION (PROCON II ONE-SCENE) ................4 OPERATION (PROCON II TWO-SCENE) ................5 ADJUSTMENTS ........................8 CONTROL OUTPUT PINOUT ....................9 MAINTENANCE ....................... 10 IN CASE OF TROUBLE ....................11 LIMITED WARRANTY ..................... -
Page 4: Introduction
The purpose of the owner’s manual is to assist you in becoming familiar with the Procon II: its installation, operation, troubleshooting and maintenance. Ownership of a sophisticated piece of electronic equipment involves more than just “buy it and use it”. -
Page 5: Setup And Connection
SETUP AND CONNECTION MECHANICAL INSTALLATION The Procon II console has no limitations on its physical orientation; it may be mounted in any position without damage to the unit. Personal preferences usually dictate the best placement. All controls should be easy to reach by the operator with emphasis on smooth operation of the slide controls and easy access to the bump buttons. - Page 6 In use with Warrior dimmers, connect one cable to each 4-channel console output and the other end to a Warrior. A glowing Light Emitting Diode (LED) on the console will show that it is receiving power. Repeat the connections for each group of four channels on the console. PROCON II 12/01/94 Lighting Control Console...
-
Page 7: Operation (Procon Ii One-Scene)
OPERATION (Procon II One-Scene) Teatronics Lighting Controls, Inc. one-scene consoles are designed to be used with the Warrior and the GLX line of dimmer packs. Each channel has a mode selector switch “1” and a calibrated linear control “2”. In the up, or “A”... -
Page 8: Operation (Procon Ii Two-Scene)
OPERATION (Procon II Two-Scene) The operation of the Procon II two-scene may be best understood by dividing the various controls into groups. The groups for the purpose of this manual are: The Master Section (1), The Crossfader Section (2). The Submaster Section (3). The Channel Sectiona (4). The Effects Section (5) (see page 7 for diagram). - Page 9 1 have no affect on the output of channel 2 or any other channel. On the Procon II there are four controls for each channel (five if you count the momentary button described below). These controls are the two sliders (X and Y scene) and a submaster selector switch for each slider.
- Page 10 I N C . OPERATION/Two-Scene (continued) The Procon II includes a chase unit which chases the first four or eight channels of the console depending on the position of the 8 channel/4 channel switch. The chase on/off switch turns off the chase unit so that if the chase level is accidently brought up, the outputs will not start chasing.
-
Page 11: Adjustments
I N C . ADJUSTMENTS The Procon II console has an internal adjustment to set the control voltage at the high end of the slide pot travel. This adjustment is usually factory set for zero to ten volt operation. If other... -
Page 12: Control Output Pinout
Function Pin Number Channel 1 +15 Volts None None Signal Common Channel 12 Figure 1 Output Connections CONTROL OUTPUT XLR 5 PIN (Facing the Chassis Plug) Channel 1 +15 Volts Case Signal Common PROCON II 12/01/94 Lighting Control Console Page//... -
Page 13: Maintenance
I N C . MAINTENANCE The Procon II console requires no maintenance, other than keeping dust and liquids out of the console. The console should be covered when not in use to prolong the service life of the slide pots. Dirt and moisture are a slide pot’s worst enemy. A slide pot’s second worst enemy is the do-gooder who sprays WD-40 into them. -
Page 14: In Case Of Trouble
I N C . IN CASE OF TROUBLE The Procon II is a solid-state analog control console. Of the components used in lighting systems, this console is probably the least likely to fail. The following paragraphs may help in the event the lighting system fails to work properly. - Page 15 Call the factory service department for any information about our service policy, ordering parts or for help repairing a unit. The phone number is (805) 528-6900 weekdays from 8:00 am to 5:00 pm Pacific Time. PROCON II 12/01/94 Lighting Control Console Page//...
-
Page 16: Limited Warranty
I N C . LIMITED WARRANTY Teatronics Lighting controls, Inc. (TLC) agrees that its products shall be free from defects in material or workmanship for a period of one year from date of delivery. Said warranty will not apply if equipment is used in conditions of service for which it is not specifically intended. The manufacturer is not responsible for damage to its apparatus through improper installation, physical damage, or poor operating practice.
