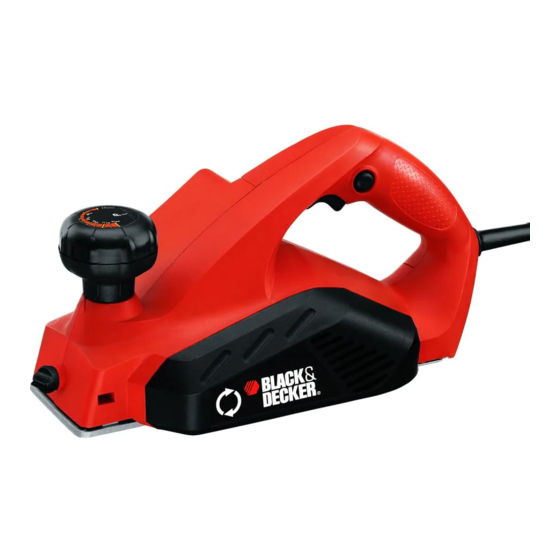

Black & Decker 7698 Instruction Manual

3-1/4” (82.5mm) planer.
Hide thumbs


Advertisement

3-
/
"
1
4
(82.5mm)
INSTRUCTION MANUAl
Catalog No. 7698
BEfORE RETURNING THIS PROdUCT
fOR ANy REASON PlEASE CAll
1-800-544-6986
IF YOU SHOULD HAVE A qUESTION OR EXPERIENCE A
PROBLEM WITH YOUR BLACK & DECKER PRODUCT,
CAll 1-800-544-6986
BEFORE YOU CALL, HAVE THE FOLLOWING INFORMATION AVAILABLE, CATALOG No., TYPE No.,
AND DATE CODE (e.g. 20000130M). IN MOST CASES, A BlACK & dECKER REPRESENTATIVE CAN
RESOLVE YOUR PROBLEM OVER THE PHONE. IF YOU HAVE A SUGGESTION OR COMMENT, GIVE
US A CALL. YOUR FEEDBACK IS VITAL TO BLACK & DECKER.
KEy INfORMATION yOU SHOUld KNOw:
• For aggressive material removal, use several controlled passes at a shallow depth
of cut.
• For optimum results use smooth uninterrupted passes.
SAVE THIS MANUAl fOR fUTURE REfERENCE.
VEA El ESPANOl EN lA CONTRAPORTAdA.
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO
Y PÓLIZA DE GARANTÍA. AdVERTENCIA: LÉASE ESTE
INSTRUCTIVO ANTES DE USAR EL PRODUCTO.
Catalog No. 7698
form No. 90606010
(dEC 2013)
SAFETY GUIdELINES - dEFINITIoNS
It is important for you to read and understand this manual. The information it contains relates to
protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help
you recognize this information.
dANGER:
Indicates an imminently hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING:
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION:
Indicates a potentially haz ard ous situation which, if not avoided, may
result in minor or mod er ate injury.
NOTICE:
Used without the safety alert symbol indicates potentially hazardous
situation which, if not avoided, may result in property damage.

GENERAL SAFETY RULES

Read all safety warnings and all instructions. Failure to
WARNING:
follow the warnings and instructions may result in electric shock, fire
and/or serious injury.
SAvE ALL WARNINGS ANd INSTRUcTIoNS FoR FUTURE
The term "power tool" in the warnings refers to your mains-operat-
ed (corded) power tool or battery-operated (cordless) power tool.
1) WoRk AREA SAFETY
• keep work area clean and well lit. Cluttered or dark areas invite accidents.
• do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Power tools create sparks which may ignite the
dust or fumes.
• keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2) ELEcTRIcAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. do
not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
c) do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
d) do not abuse the cord. Never use the cord for carrying, pulling or unplug-
ging the power tool. keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault cir-
cuit interrupter (GFcI) protected supply. Use of a GFCI reduces the risk of electric shock.
3) PERSoNAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating
a power tool. do not use a power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before
connecting to power source and/ or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energizing power tools that have
the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.
e) do not overreach. keep proper footing and balance at all times. This enables bet-
ter control of the power tool in unexpected situations.
f) dress properly. do not wear loose clothing or jewelry. keep your hair, cloth-
ing and gloves away from moving parts. Loose clothes, jewelry or long hair can be
caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
Planer
Copyright © 2013 Black & decker Printed in China
REFERENcE
facilities, ensure these are connected and properly used. Use of dust collection can
reduce dust-related hazards.
4) PoWER TooL USE ANd cARE
a) do not force the power tool. Use the correct power tool for your application. The cor-
rect power tool will do the job better and safer at the rate for which it was designed.
b) do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c) disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such pre-
ventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool's opera-
tion. If damaged, have the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these
instructions, taking into account the working conditions and the work to be per-
formed. Use of the power tool for operations different from those intended could result
in a hazardous situation.
5) SERvIcE
a) Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Specific Safety Rules
• Wait for the cutter to stop before setting the tool down. An exposed rotating cutter
may engage the surface leading to possible loss of control and serious injury.
• Hold power tool by insulated gripping surfaces only, because the cutter may
contact its own cord. Cutting a "live" wire may make exposed metal parts of the power
tool "live" and could give the operator an electric shock.
• Use clamps or another practical way to secure and support the workpiece to a
stable platform. Holding the work by hand or against the body leaves it unstable and
may lead to loss of control.
• To reduce the risk of injury, user must read and understand instruction manual before
operating planer.
• Wait for the cutter to stop before setting the tool down. An exposed rotating cutter
may engage the surface leading to possible loss of control and serious injury.
• Be sure the voltage agrees with specific data on the nameplate.
• Make certain that the switch is in the off position before connecting plug to a power source.
• Be sure to switch OFF immediately if tool is jammed in work.
• Be sure tool is set for correct depth before turning switch to ON.
• Be sure to use specified replacement parts only.
• Be sure tool is disconnected from power source when cleaning or making adjustments to the tool.
• Be sure to maintain tool with care. Follow instructions for lubricating and changing accessories.
• Stay alert – never operate the unit when tired or under the influence of drugs, alcohol, or medication.
• Be sure to store tool in a clean dry place after disconnecting from power source.
• Do not use in dangerous environments. Do not use near flammable substances, in damp
or wet locations, or expose to rain.
• Be sure that the blades are mounted as described in the instruction manual and check
that all screws are firmly tightened before connecting unit to power source.
• Keep air vents unobstructed for proper motor cooling.
• DO NOT lay tool down on shoe when the blades are exposed. This can chip the blades.
• Keep side discharge chute unobstructed at all times.
• Never reach under the tool for any reason unless it is turned off and UNPLUGGED.
BLADES ARE EXPOSED AND EX TREMELY SHARP.
• Use this tool for working with wood and wood products only.
• Never operate without securely holding the front handle.
• Always operate planer with two hands.
• Planer blades are extremely sharp. Handle with great care.
• Clean out your tool often, especially after heavy use.
WARNING:
ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses.
Also use face or dust mask. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CPA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NOSH/OSHA respiratory protection.
WARNING:
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to the state of California to cause cancer,
birth defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• c rystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling,
and other construction activities. Wear protective clothing and wash exposed areas
with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may
promote absorption of harmful chemicals.
WARNING:
Use of this tool can generate and/or disperse dust, which may cause serious
and permanent respiratory or other injury. Always use NOSH/OSHA approved respiratory
protection appropriate for the dust exposure. Direct particles away from face and body.
WARNING:
Always wear proper personal hearing protection that conforms to
ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from
this product may contribute to hearing loss.
Symbols
• The label on your tool may include the following symbols. The symbols and their definitions
are as follows:
V ..................volts
Hz ................hertz
min ..............minutes
............direct current
................Class I Construction
(grounded)
................Class II Construction
(double insulated)
SAVE THESE INSTRUCTIONS
Motor
Be sure your power supply agrees with nameplate marking. 120 Volts AC only means your
drill will operate on standard 60 Hz household power. Do not operate AC tools on DC. A
rating of 120 volts AC/DC means that your tool will operate on standard 60 Hz AC or DC
power. This information is printed on the nameplate. Lower voltage will cause loss of power
and can result in over-heating. All Black & Decker tools are factory-tested; if this tool does
not operate, check the power supply.
Use of Extension Cords
Make sure the extension cord is in good condition before using. Always use the proper size
extension cords with the tool – that is, proper wire size for various lengths of cord and heavy
enough to carry the current the tool will draw. Use of an undersized cord will cause a drop in
line voltage resulting in loss of power and overheating. For proper size cords see chart below.
Minimum Gage for Cord Sets
Volts
120V
0-25
240V
0-50
Ampere Rating
More
Not more
Than
Than
0
-
6
18
6
-
10
18
10 -
12
16
12 -
16
14
A ...................amperes
W ..................watts
................alternating current
n o .................no load speed
..................earthing terminal
................safety alert symbol
.../min or rpm ....revolutions or reciprocation
per minute
Total length of Cord in feet
26-50
51-100
101-150
51-100 101-200
201-300
American Wire Gage
16
16
14
16
14
12
16
14
12
12
Not Recommended

Advertisement

   Summary of Contents for Black & Decker 7698

  • Page 1: General Safety Rules

    Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be per- formed. Use of the power tool for operations different from those intended could result Catalog No. 7698 in a hazardous situation. 5) SERvIcE a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
  • Page 2 • Loosen the bolts (6) using the wrench supplied. • Slide the blade (7) out of the holder. No de catalogue 7698 • Reverse the blade so that the unused side comes in position. If both sides are worn, the blade must be replaced.
  • Page 3 outil électrique mis à la terre. Le risque de choc électrique sera réduit par · l’arsenic et le chrome dans le bois de sciage ayant subi un traitement chimique. l’utilisation de fiches non modifiées correspondant à la prise. Le risque associé à de telles expositions varie selon la fréquence avec laquelle on effectue b) Éviter tout contact physique avec des surfaces mises à...
  • Page 4 No. de catálogo 7698 • Utilice abrazaderas u otra forma práctica para asegurar y sostener la pieza de trabajo en una plataforma estable.
  • Page 5 • Suelte el botón de bloqueo (9). • Inserte el soporte guía paralelo (11) por la apertura (10). ESPECIfICACIONES - 7698 • Deslice el soporte guía paralelo y colóquelo en la posición deseada. • Ajuste el botón de bloqueo.

Comments to this Manuals

Symbols: 0
Latest comments:
  • R.D.Extervv Aug 11, 2018 11:25:
    I need a drive belt for the B&D DN75. 450 watt 2,15 amp Typ D1
    1300 U/m. FAN Belt number 914592 lengh 23cm /
    Planer is in perfect order except torn belt. Machine is about 25 hears old + I cannot find the item number with your manuals nor
    A spare part . Do you have any suggestion ? Informatio​n appreciate​d . THANK YOUGXV
