  Summary of Contents for Canon EF16-35mm f/4l IS USM

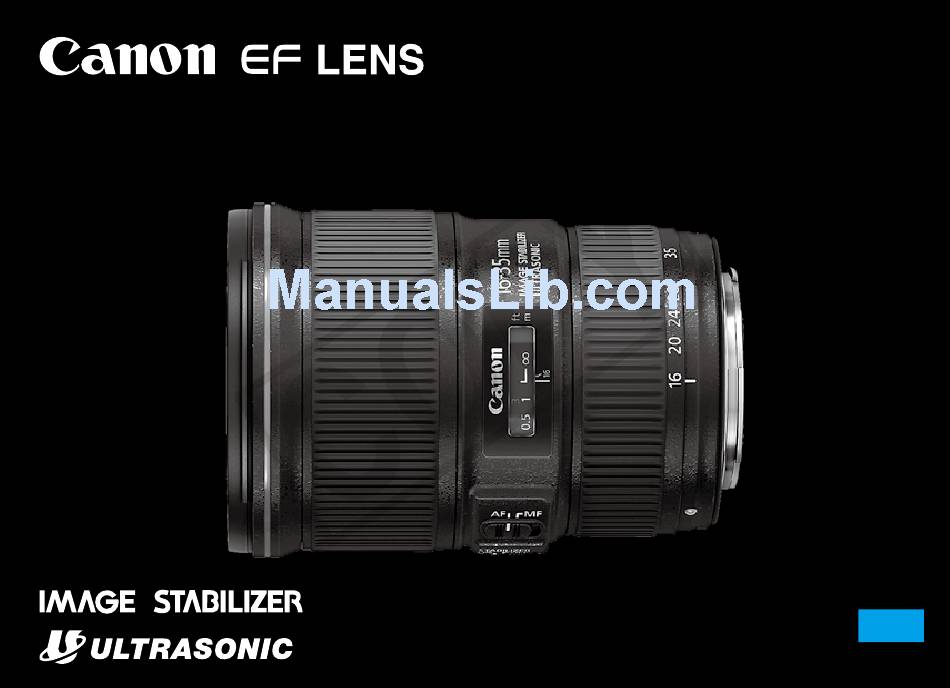

  • Page 1 EF16-35mm f/4L IS USM Instructions...
  • Page 2 Thank you for purchasing a Canon product. Canon’s EF16-35mm f/4L IS USM is a high- 4. Ultrasonic motor (USM) for fast, quiet autofocus. performance ultra-wide angle zoom lens, for use 5. Manual focusing is available after the subject with EOS cameras. The lens is installed with an comes into focus in autofocus mode (ONE Image Stabilizer.
  • Page 3: Safety Precautions

    Safety Precautions Safety Precautions Handling Cautions If the lens is taken from a cold environment into a ● ● Do not look at the sun or a bright light source ● ● warm one, condensation may develop on the lens through the lens or camera.
  • Page 4 Safety Precautions This device complies with Part 15 of the FCC Rules. CAN ICES-3 (B) / NMB-3 (B) Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 Nomenclature Focus mode switch (→ 6) Distance scale (→ 7) Hood mount (→ 10) Zoom ring (→ 6) Rubber ring (→ 5) Filter Mounting Thread (→ 11) Contacts (→ 5) Focusing ring (→ 6) Lens mount index (→ 5) Image stabilizer switch (→ 8) For detailed information, reference page numbers are provided in parentheses (→...
  • Page 6: Mounting And Detaching The Lens

    If the rubber ring becomes worn, it is replaceable by a Canon Service Center at cost. After detaching the lens, place the lens with ●...
  • Page 7: Setting The Focus Mode

    2. Setting the Focus Mode 3. Zooming To shoot in autofocus (AF) mode, set the focus To zoom, rotate the zoom ring. mode switch to AF. Be sure to finish zooming before focusing. Zooming To shoot in manual focus (MF) mode, set the after focusing can affect the focus.
  • Page 8: Infinity Compensation Mark

    4. Infinity Compensation 5. Infrared Index Mark Infinity compensation mark The infrared index corrects the focus setting when using monochrome infrared film. Focus on Distance index the subject manually, then adjust the distance To compensate for shifting of the infinity focus setting by moving the focusing ring to the point that results from changes in temperature.
  • Page 9: Image Stabilizer

    6. Image Stabilizer You can use the image stabilizer in AF or MF mode. This function provides optimal image stabilization depending on shooting conditions (such as shooting still subjects and following shots). The image stabilizer in this lens is Set the STABILIZER When you press the effective for hand-held shots under the switch to ON.
  • Page 10 Image Stabilizer The Image Stabilizer cannot compensate for a When shooting a still subject, it compensates for ● ● ● ● blurred shot caused by a subject that moved. camera shake in all directions. Set the STABILIZER switch to OFF when you It compensates for vertical camera shake during ●...
  • Page 11 7. Hood The EW-82 hood cuts out unwanted light and protects the front of the lens from rain, snow, and dust. Button ●Attaching ●Removing To attach the hood, align the hood’s attachment To remove the hood, hold down the button on position mark with the red dot on the front of the the side and turn the hood in the direction of the lens, then turn the hood as shown by the arrow...
  • Page 12: Extension Tubes

    Magnification (×) attach a Canon PROTECT filter (77mm). Only one filter may be attached. Close distance Long distance Close distance Long distance ● ● If you need a polarizing filter, use the Canon ● ● 16mm Incompatible EF12 II Circular Polarizing Filter PL-C B (77 mm).
  • Page 13: Specifications

    Extenders cannot be used with this lens. ● ● Aperture settings are specified on the camera. ● ● All data listed is measured according to Canon standards. ● ● Product specifications and appearance are subject to change without notice. ● ●...
  • Page 14 CT1-8597-000 0414Ni © CANON INC. 2014...
