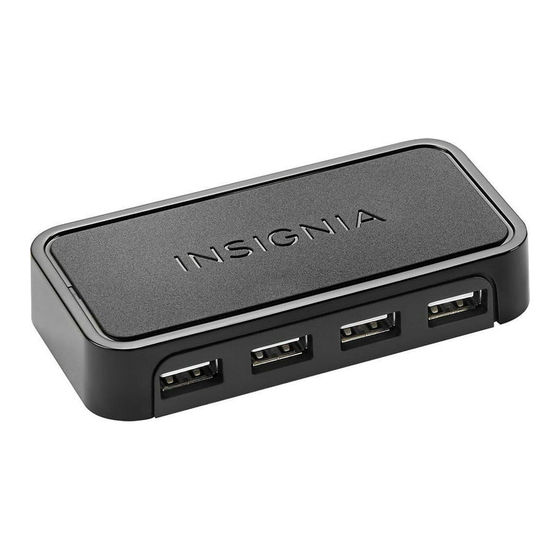

Insignia NS-PCH5421 Quick Setup Manual

PACKAGE CONTENTS

• USB 2.0 4-Port Hub
• AC adapter 5V/2A
• USB cable
• Quick Setup Guide

SYSTEM REQUIREMENTS

• Computer with a USB 2.0 or USB3.0
port
• Latest version of Windows ®8,
Windows® 7, Windows Vista®, or
Windows® XP; or Mac OS X 10.4 or later
• Minimum free disk space: 600MB
recommended
FEATURES
• Complies with USB 2.0
• Compatible with USB 1.1 devices
• Supports transfer rates of up to
480Mbps
• Adds four USB 2.0 ports to your USB
2.0 enabled computer
• Blue LED power indicator
• Supports hot-swappable and Plug &
Play capability
• Supports over-current protection at
USB host port
Before using your new product, please read these
instructions to prevent any damage.
Quick Setup Guide
NS-PCH5421/NS-PCH5421-C
4 Port USB 2.0 Hub
Upstream port (to computer)
LED
Downstream ports (to devices)

INSTALLING YOUR HUB

Note: When you connect your hub to a
computer, the computer detects your hub and
automatically installs the driver.
1 Connect the smaller end of the USB
cable to the upstream port on the rear of
the hub and connect the larger end of
the USB cable to an open USB port on
your computer.
2 Plug the AC power adapter into your
hub's DC jack and into a power outlet.
DC jack
