Insignia NS-PH3A4AS Quick Setup Guide

OVERVIEW

Before using your new product, please read these instructions to prevent any damage.

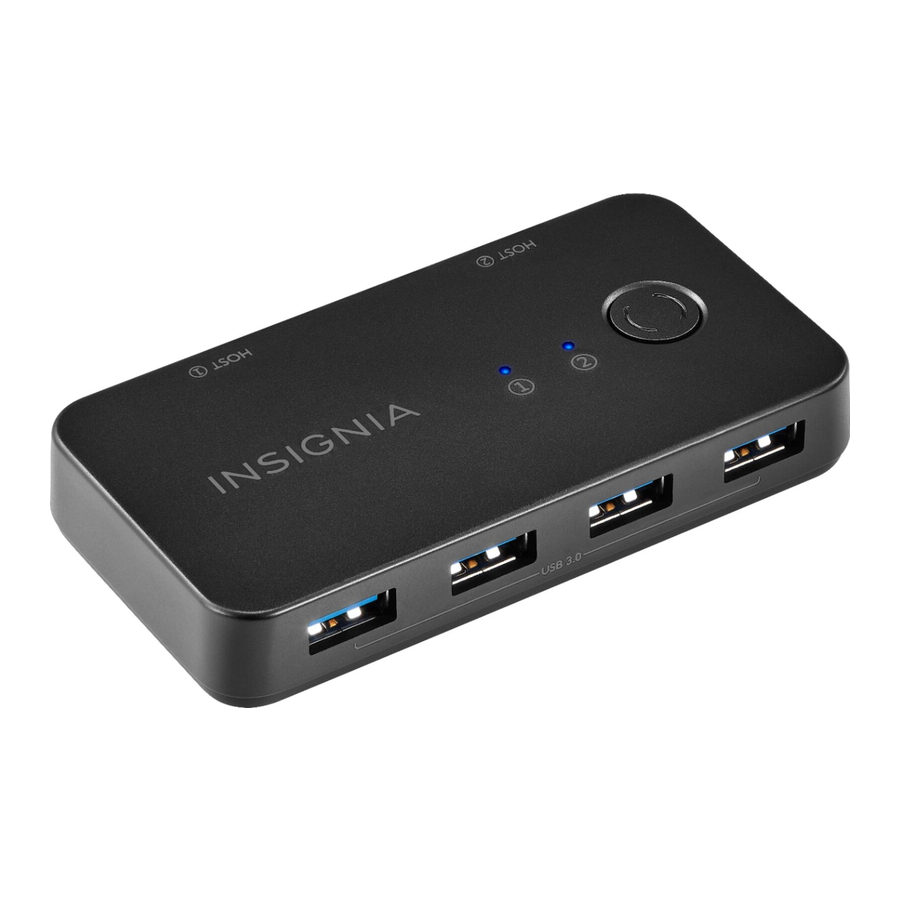

Front

Back

USING YOUR HUB

1. Connect the USB power cable to the hub and plug it in to a power outlet.
2. Connect the switch downstream ports to devices like flash drives, mouse, keyboard, or external hard drive.


3. Connect the switch upstream ports to PC1 and PC2 with the USB 3.0 cables (included).
   Note: If two devices are connected, PC1 is initially selected and LED 1 is on. PC2 is not connected and LED 2 is off.
   If only one device is connected, use the PC1 connection.


4. To select PC2, press the switch button. PC2 is selected and LED 2 turns on and PC1 is disconnected and LED 1 turns off.
   Note: Properly eject USB flash drives and USB hard drives before clicking the switch button to prevent corrupting your data.

SPECIFICATIONS

• Dimensions: 3.9 × 2 ×.6 in. (10.1 × 5.2 × 1.65 cm)
• Transmission port:USB 3.0
• Work temperature: 32°F ~ +122°F (0°C ~ +50°C)
• Work humidity:20% RH ~ 85% RH
• USB 3.0 cable length: 59 in. (1.5 m)

PACKAGE CONTENTS

• 4-Port USB switch
• USB 3.0 cables (2) (USB 3.0 A/M to USB 3.0 A/M)
• Quick Setup Guide

SYSTEM REQUIREMENTS

• Computer with a USB port
• Windows® 10 (32-bit and 64-bit),
  Mac OS 10.12 through 11.4,
  Chrome OS 67 through 90

FEATURES

• Supports USB 3.0, compatible with USB 2.0 and USB 1.1
• USB 3.0 data transfer rate up to 5.0 Gbps (maximum)
• Users can choose PC1 or PC2 by pressing the switch button on the HUB
• Two LED indicators show which PC is connected:
  • LED1 on, PC1 is connected,
    PC2 disconnected, LED2 off
  • LED2 on, PC2 is connected, PC1 disconnected, LED1 off
• Plug&Play and hot plug are supported

Switch port features

• Upstream port:
  • USB 3.0 AF (2 ports)(connect PC1 and PC2)
  • USB-C port for optional power, no data transfer function
• Downstream port:
  USB 3.0 AF (4 ports)(connect peripheral devices: flash drives, mouse, keyboard, and hard drive)
• Switch button:
  Changes the selected computer (PC1 or PC2)
