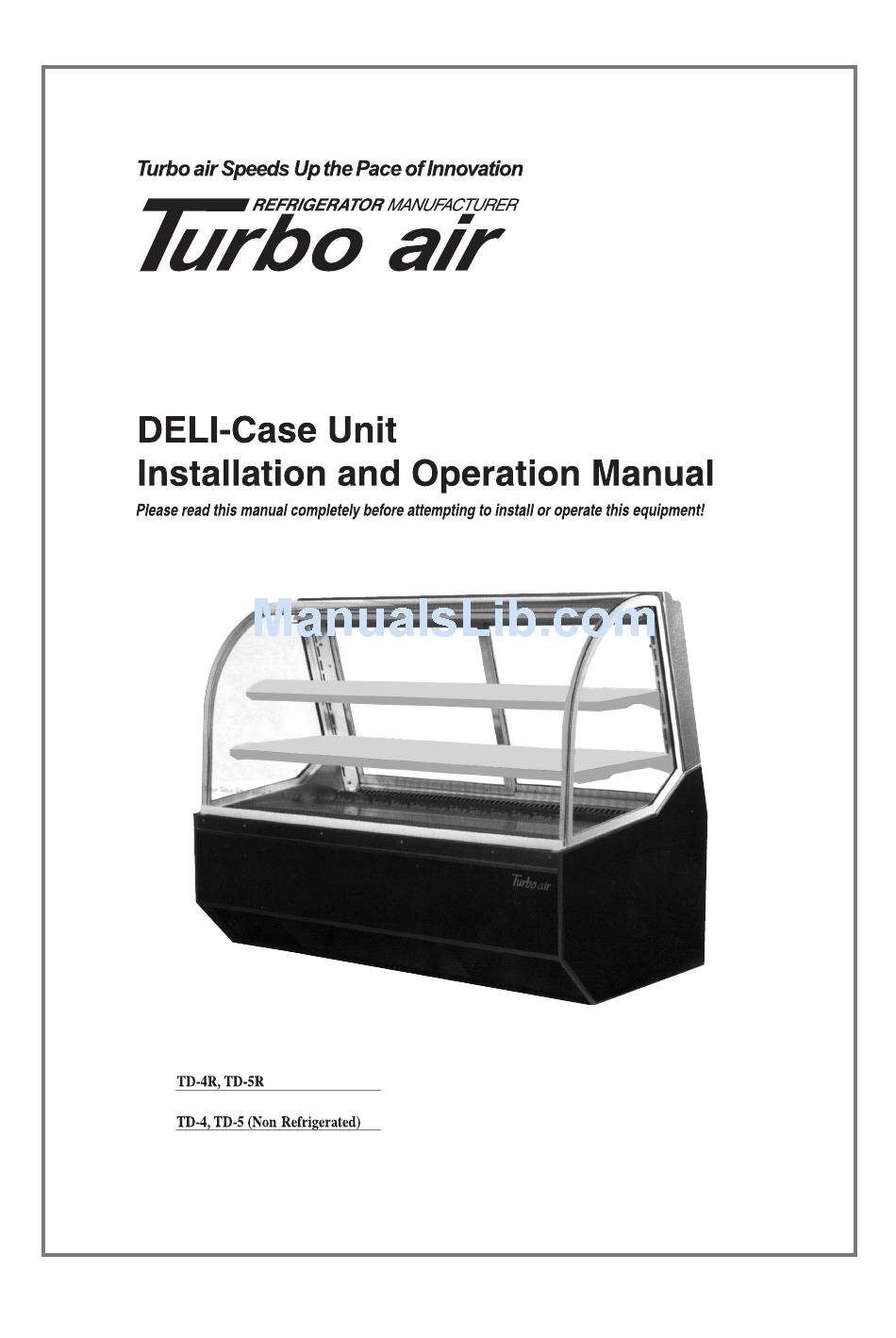

Turbo Air TD-4R Installation And Operation Manual

Turbo Air TD-4R Installation And Operation Manual

Deli-case unit
Hide thumbs Also See for TD-4R:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD-4R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Turbo Air TD-4R

Summary of Contents for Turbo Air TD-4R

  • Page 2: Table Of Contents

    DELI-CASE warm Glass sweating Light not working WARRANTY STATEMENT 12~15 Load Line SPECIFICATIONS DELI-CASE Unit MODEL COMP H.P V/Hz REFERIGERANT AMPS WEIGHT TD-4R 115V/60Hz R-134a 750 lbs TD-5R 115V/60Hz R-134a 825 lbs TD-4 115V/60Hz 640 lbs TD-5 115V/60Hz 695 lbs...

  • Page 3: Introduction

    INTRODUCTION This owner’s manual has important information. Please read the entire manual before installing your new Turbo air refrigerated DELI-Case. After reading manual if you have any questions, please fill free to call: CUSTOMER SERVICE DEPARTMENT TURBO AIR 1250 VICTORIA ST.

  • Page 4: Safety Stickers

    SAFETY STICKERS The following signs are thru out Turbo Air DELI-Case. If any are missing, Pleae call Customer Service so the sticker can be sent to you. DANGER HIGH VOLTAGE- This sticker is on back of DELI-Case. CAUTION- This sticker is below the DELI display pan.

  • Page 5: Installation Instructions

    If after uncrating there is concealed damaged and crate was in good condition you must call Customer Service at Turbo Air. Concealed damage must be reported within 24 hours of receiving unit. bill of lading will be requested faxed to claim department. Pictures may be requested of unit and crating.

  • Page 6: Packaging Material

    PACKAGING MATERIAL Remove all tape that holds lift up glass and doors in place. Some residue will be left and this can be removed with glass cleaner. Remove all plastic ties that hold shelves and brackets for shelves. LIGHTS Make sure lights are in their lamp holders. Also make sure plugs for lamp holders are completely plugged in.

  • Page 7: Electrical Information

    ELECTRICAL INFORMATION !!! DELI-CASE MUST BE GROUNDED Only a licensed electrician must install all electrical on DELI-Case. All electrical must be done in accordance with applicable electrical standards. A dedicated breaker is to be used for each DELI-Case. Electrical must be grounded upon installation An access hole is provided thru base of case for running electrical up through floor.

  • Page 8: Wiring Diagram

    WIRING DIAGRAM(TD-4R, TD-5R)
  • Page 9 WIRING DIAGRAM(TD-4, TD-5)

  • Page 10: Operating Instructions

    The switch controls the power to the lighting circuit. The switch rocker is red in the “on” position, black in the “off” position. TEMPERATURE CONTROL: TD-4R TD-5R 1. The controller(thermostat) is locatef at the right inside of the unit. 2. The factory setting for the control is Normal 3.

  • Page 11: Replacement Of Light

    SHELF PLACEMENT: The shelves can be installed slanted or straight. To make the shelf slanted do the following; a. Shelf needs to be removed from shelf support. b. Shelf support needs to be held at each end. c. Shelf support needs to be lifted at the back till bracket can inserted into shelf standard slots. Refer to drawing of pages4.

  • Page 12: Exterior Cleaning

    MAINTENANCE & CLEANING !!! Always before cleaning DELI-Case unit should be turned off at power switch and lights should be turmed off. Removed product and allow display to resch room temperature. !!! Do not wet electrical components. DELI-CASE SHOULD BE CLEANED THOROUGHLY BEFORE FIRST USE. CLEANING DAILY a.
  • Page 13 MAINTENANCE CONTINUED CONDENSER COIL a. Turn off unit at power switch. Disconnect power to unit. b. Remove rear grill. c. Clean condenser by either brushing off with stiff wire brush or vacuuming with wet/dry vacuum. Condenser is black and looks like a radiator. This should be cleaned every month or as necessary.

  • Page 14: Trouble Shooting

    TROUBLE SHOOTING For any problems with DELI-Case please refer to following check list. If still having a problem or need to ask a question please call Customer Service at 1-800-381-7770 or 1-800-627-0032 DELI-CASE NOT WORKING a. Check to see if breaker is not tripped. b.

  • Page 15: Warranty Statement

    Turbo Air unit. Turbo Air’s obligation under this warranty is limited to a period of one (1) year from the date of original installation or 15 months after shipment date from Turbo Air, whichever occurs first.
  • Page 16 Additional Four Compressor Warranty In addition to the one (1) year warranty stated above, Turbo Air warrants its hermeticallt sealed compressor to be free from defects in both material and workmanship under normal and proper use and maintenance service for a period of four (4) additional year from the date of original installation, but not to exceed five (5) years and three (3)) months sfter shipment from the manufacturer.
  • Page 17 ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, ADAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. Turbo Air is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse,...
  • Page 18 IMPROPER ELECTRICAL CONNECTIONS Turbo air is not responsible for the repair or replacement of failed or damaged component Resulting from electrical power failure, the extension cords, low voltage, or voltage drops to the unit. NO IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A...

This manual is also suitable for:

Td-5rTd-4Td-5
