Turbo Air Speeds up the Pace of Innovation
Worktop
Refrigerators & Freezers
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment
REFRIGERATORS

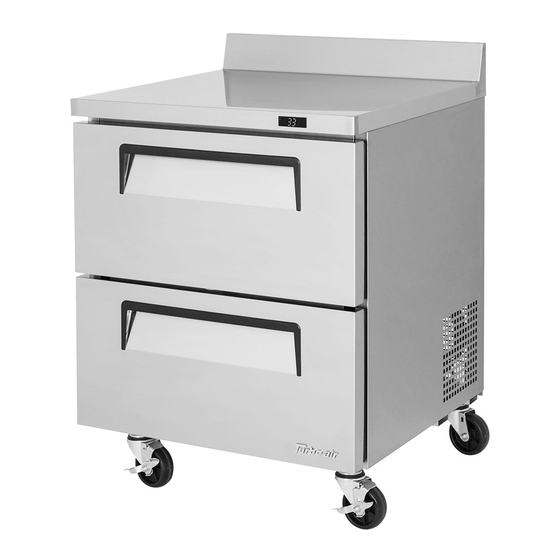

TWR-28SD-D2
TWR-48SD-D2
TWR-48SD-D4
TWR-60SD-D2
TWR-60SD-D2
FREEZERS
TWF-28SD-D2
TWF-48SD-D2
TWF-48SD-D4
www.turboairinc.com
Full Stainless Steel Visible Exterior
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Turbo Air TWR-28SD-D2
Summary of Contents for Turbo Air TWR-28SD-D2

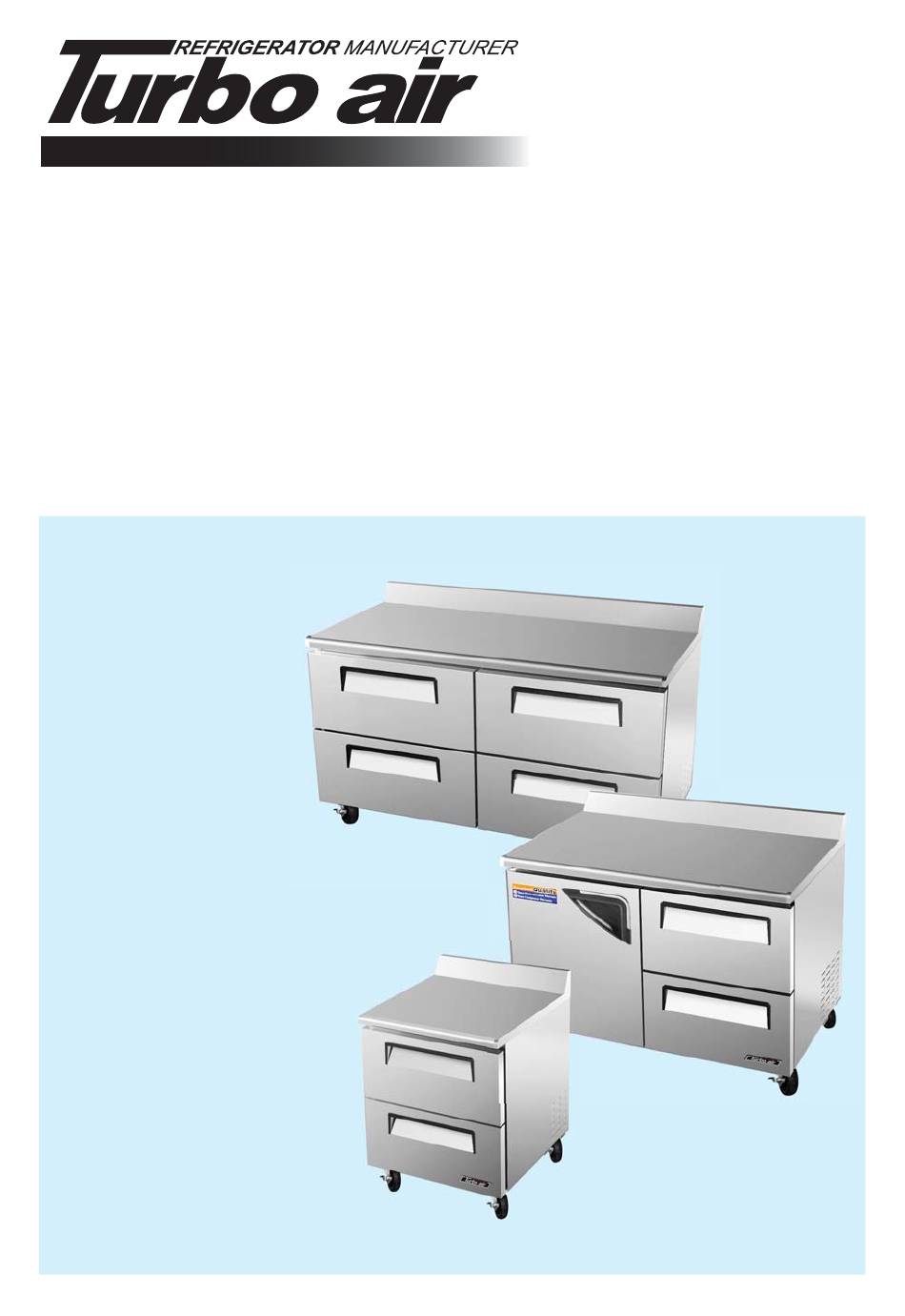

- Page 1 Turbo Air Speeds up the Pace of Innovation Worktop Refrigerators & Freezers Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment Full Stainless Steel Visible Exterior REFRIGERATORS TWR-28SD-D2 TWR-48SD-D2 TWR-48SD-D4 TWR-60SD-D2 TWR-60SD-D2...
- Page 2 TROUBLESHOOTING WARRANTY 10-11 STAINLESS STEEL EQUIPMENT CARE AND CLEANING 11-13 SPECIFICATIONS REFRIGERATOR MODEL COMP H.P. V/Hz REFRIGERANT AMPS WEIGHT 115V/60Hz R-134A 6.6A 180lbs TWR-28SD-D2 TWR-48SD-D2 115V/60Hz R-134A 6.5A 264lbs TWR-48SD-D4 115V/60Hz R-134A 6.5A 271lbs TWR-60SD-D2 115V/60Hz R-134A 8.9A 299lbs TWR-60SD-D4...
- Page 3 INSTALLATION OF DRAIN PAN 1) In damp season, when the drain water overflow the drain pan, remove the drain pan and pour the water away. And then set the drain pan back up as below drawing please (Model : TWR-28SD-D2, TWF-28SD-D2).
- Page 4 REMOVAL DRAWER Fully extend the drawer out toward you as pictured. After full extension, lift the drawer up and pull towards you. This will disengage the rollers from the roller guide. DRAWER PAN CAPACITY 1. 28 SERIES Each drawer accommodates 6 (1/6 size) L (6 ”) x W (6 ”) x H (4”...
- Page 5 - Be sure that there is ample air space so that air can flow through the rear of the unit - Turbo Air recommends that the rear of the unit be no less than 5 inches from the wall 2. PLACE ON STRONG GROUND...
- Page 6 CAUTION 1. POWER CORD - Be sure the power cord is connected to the proper voltage - A protected circuit of the correct voltage and amperage must be run for connection of the line cord - Turn ʻoffʼ the power switch before disconnecting the power cord, whenever performing maintenance functions or cleaning the refrigerated cabinet - Compressor warranties are void if compressor burns out due to low voltage 2.
- Page 7 TROUBLESHOOTING SYMPTOMS CAUSES SOLUTIONS Refrigerator(Freezer) • The setting temperature is too • Turn the temperature dial to a is freezing(melting) low(high) to maintain food warmer(colder) setting. food freshness. The unit does not • There is a power connection • Check the power cord to make sure refrigerate at all failure problem.
- Page 8 STAINLESS STEEL EQUIPMENT CARE AND CLEANING CAUTION : Do not use any steel wool, abrasive or chlorine based products to clean stainless steel surfaces. Stainless Steel Opponents There are three basic things which can break down your stainless steel’s passivity layer and allow corrosion to rear its ugly head.
- Page 9 4. Water Treatment To reduce deposits, soften the hard water when possible. Installation of certain filters can remove corrosive and distasteful elements. Salts in a properly maintained water softener can be to your advantage. Contact a treatment specialist if you are not sure of the proper water treatment.
- Page 10 THREE YEAR WARRANTY Turbo Air warrants to the original purchaser of every new Turbo Air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of three (3) year from the date of original installation or 39 months after shipment date from Turbo Air , whichever occurs first.
- Page 11 3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. TURBO AIR is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or an Act of God.
- Page 12 (3) year from the date of original installation or 39 months after shipment date from Turbo Air, whichever occurs first. Any part, covered under this warranty, that are by Turbo Air to have been defective within three (3) year of original installation or thirty-nine (39) months after shipment date from manufacturer, whichever occurs first, is limited to the repair or replacement, including labor charges, of defective parts or assemblies.
