Page 1: Installation Guide

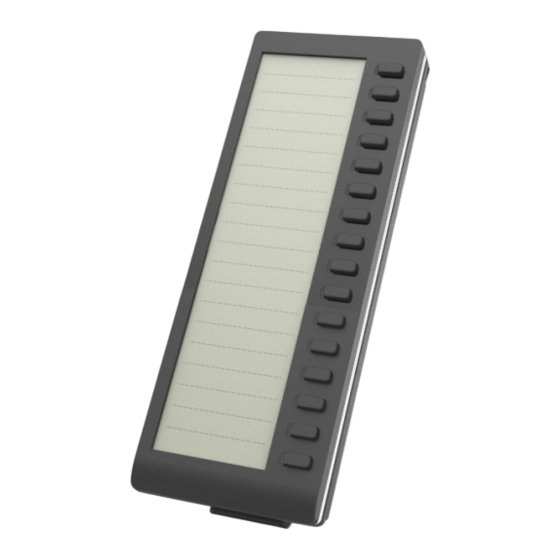

Mitel Model M680i Expansion Module Installation Guide 41-001517-00 REV00 – 10.2014... -
Page 2: Software License Agreement
Software in object form solely with the Equipment for which the Software was intended. This Product may integrate programs, licensed to Mitel by third party Suppliers, for distribution under the terms of this agreement. These programs are confidential and proprietary, and are protected as such by copyright law as unpublished works and by international treaties to the fullest extent under the applicable law of the jurisdiction of the Customer. -
Page 3: Table Of Contents
..................... .3 Connecting the M680i Expansion Module to Your Phone. -
Page 4: Welcome
Modules share power and signaling with the phone, eliminating the need for additional wiring. Designed for receptionists, administrative assistants, call center agents, power users, and executives who need to monitor and manage a large volume of calls on a regular basis, the M680i Expansion Module provides an intelligent choice for all enterprise IP environments. -
Page 5: Expansion Module Parts
Expansion Module Parts When you unpack the M680i Expansion Module package, you should ensure that you have all of the following items. If any part is missing, contact the supplier of your phone. Documentation 1x 6mm Screw Key Cards and... -
Page 6: Installation
Installation The M680i Expansion Module connects to the right side of the 6865i, 6867i, and 6869i IP phone via the connector plate. Connecting the M680i Expansion Module to Your Phone Use the following procedure to connect the M680i Expansion Module to your IP phone: Locate and remove the two connector plate insertion area rubber caps on the right side of the phone. - Page 7 Installation Connect the M680i Expansion Module to your phone using the connector plate as indicated in the illustration below. 6865i Connection 6867i/6869i Connection Using a #2 Philips head screwdriver, screw in the 6mm screw into the hole labelled D. 41-001517-00 REV00 – 10.2014...
-
Page 8: Attaching The Stand
55° 35° Turn over both units so that they are sitting face up on the desk with the M680i Expansion Module sitting flush against the right side of the phone. 41-001517-00 REV00 – 10.2014... -
Page 9: Inserting The Key Card
The key card contains label identification spaces for the 16 programmable keys. Insert the paper key card into the programmable key card slot on the front panel of the M680i Expansion Module using the inden- tation of the plastic for alignment. -
Page 10: Attaching Multiple M680I Expansion Modules
Installation Attaching Multiple M680i Expansion Modules Multiple M680i Expansion Modules (up to a total of three) can be daisy-chained to a phone providing an additional 48 programmable keys. Use the following procedure to connect additional M680i Expansion Modules to your IP phone: Turn your phone and connected M680i Expansion Module over so that the back is facing you. -
Page 11: Upgrades, Configuration, And Usage
This process will take approximately 10 seconds, in which case the LED corresponding to the second button on the M680i will stay solid red for the duration. If the upgrade is successful, the LED will turn green. -
Page 12: Using The M680I Expansion Module
Upgrades, Configuration, and Usage Using the M680i Expansion Module After configuring the programmable keys on the M680i Expansion Module, you can record the name of the programma- ble key on the paper key cards provided with the M680i Expansion Module. -
Page 13: Limited Warranty
(1) year period from the date of original purchase (“Warranty Period”). If there is a defect or malfunction, Mitel shall, at its option, and as the exclusive remedy, either repair or replace the prod- uct at no charge, if returned within the Warranty Period. -
Page 14: Limited Warranty (Australia Only)
Part 5-4 of Schedule 2 to the Competition and Consumer Act 2010 (the ACL), the exercise of a right conferred by such a provision or any liability of Mitel in relation to a failure to comply with a guarantee that applies under Division 1 of Part 3-2 of the ACL to a supply of goods or services. -
Page 15: Services
Mitel in relation to a failure to comply with a guarantee that applies under Division 1 of Part 3-2 of the ACL to a supply of goods or services. - Page 16 While every effort has been made to ensure accuracy, Mitel will not be liable for technical or editorial errors or omissions contained within this documentation. The information contained in this documentation is subject to change without notice.
