Summary of Contents for Mitel M685i

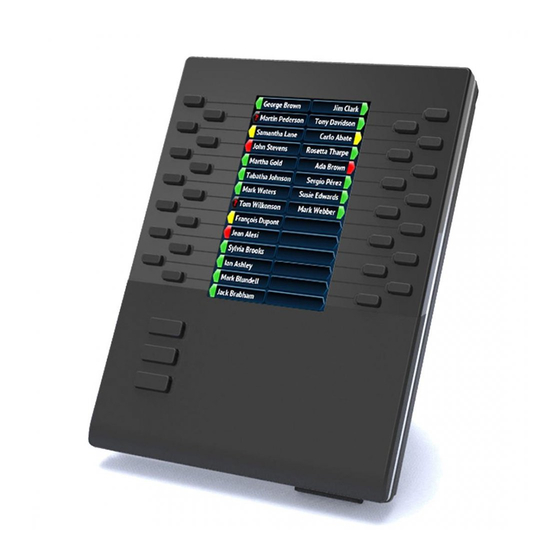

- Page 1 Mitel M685i Expansion Module 41-001525-00 REV01 INSTALLATION GUIDE...
- Page 2 ). The information is subject to change without notice and should not be construed in any way as a commitment by Mitel or any of its affiliates or subsidiaries. Mitel and its affiliates and subsidiaries assume no responsibility for any errors or omissions in this document. Revisions of this document or new editions of it may be issued to incorporate such changes.
-
Page 3: Software License Agreement
Equipment for which the Software was intended. This Product may integrate programs, licensed to Mitel by third party Suppliers, for distribution under the terms of this agreement. These programs are confidential and proprietary, and are protected as such by copyright law as unpublished works and by international treaties to the fullest extent under the applicable law of the jurisdiction of the Customer. -
Page 4: Table Of Contents
Installation..............3 Connecting the M685i Expansion Module to Your Phone ......3 Attaching the Stand . -
Page 5: Welcome
Programmable softkeys support advanced features such as Shared Call Appearance (SCA), Busy Lamp Field (BLF), and Speed Dial • Can be daisy chained with additional M685i modules as well as M680i modules for a combined total of up to 3 expansion modules •... -
Page 6: Expansion Module Parts
Mitel M685i Expansion Module Installation Guide EXPANSION MODULE PARTS When you unpack the M685i Expansion Module package, you should ensure that you have all of the following items. If any part is missing, contact the supplier of your phone. 1x 6mm Screw... -
Page 7: Installation
Installation INSTALLATION The M685i Expansion Module connects to the right side of the 6865i, 6867i, and 6869i IP phone via the connector plate. CONNECTING THE M685I EXPANSION MODULE TO YOUR PHONE Use the following procedure to connect the M685i Expansion Module to your IP phone: 1. - Page 8 Mitel M685i Expansion Module Installation Guide 5. Connect the M685i Expansion Module to your phone using the connector plate as indicated in the illustration below. 6865i Connection 6867i/6869i Connection 6. Using a #2 Philips head screwdriver, screw in the 6mm screw into the hole labelled D.
-
Page 9: Attaching The Stand
55°. The orientation of the module’s stand must match the orientation of the phone’s stand. 55° 35° 3. Turn over both units so that they are sitting face up on the desk with the M685i Expansion Module sitting flush against the right side of the phone. -
Page 10: Attaching Multiple M685I Expansion Modules
Mitel M685i Expansion Module Installation Guide ATTACHING MULTIPLE M685I EXPANSION MODULES Multiple M685i Expansion Modules (up to a total of three) can be daisy-chained to a phone providing a total of 252 softkeys (three modules with three pages of 28 softkeys each). -
Page 11: Configuration And Usage
This process will take approximately 10 seconds, in which case the LED corresponding to the second button on the M685i will stay solid red for the duration. If the upgrade is successful, the LED will turn green. If the LED stays solid and red for longer than 10 seconds, the upgrade may have failed. -
Page 12: Configuring The M685I Expansion Module
The M685i Expansion Module programmable softkeys support a multitude of different functions. You can configure the keys using the Mitel Web UI at the path, Operation->Expansion Module <N> (where N is the module number) when modules are attached to the 6865i, 6867i, or 6869I IP phone. -
Page 13: Limited Warranty
Mitel will not accept liability for any damages and/or long distance charges, which result from unauthorized and/or unlawful use. -
Page 14: Limited Warranty (Australia Only)
Consumer Act 2010 (the ACL), the exercise of a right conferred by such a provision or any liability of Mitel in relation to a failure to comply with a guarantee that applies under Division 1 of Part 3-2 of the ACL to a supply of goods or services. -
Page 15: Warranty Repair Services
(e.g. goods/services ordinarily supplied for business-use) 1.1 To the extent permitted by law and subject to clause 1.2 below, the liability of Mitel to you for any non-compliance with a statutory guarantee or loss or damage arising out of or in...
