QuiCk REFERENCE GuidE
in-daSH gpS naVigaTion receiVer
Map update applies to following products:
NVd-w912 for iNA-w910 and iVA-NAV-20
NVd-w902 for iNA-w900, iNA-w900BT and
iVA-NAV-10
ina-W900, ina-W900bT & iVa-naV-10 do not have the Traffic feature

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVD-W912 and is the answer not in the manual?

Questions and answers

Related Manuals for Alpine NVD-W912

Summary of Contents for Alpine NVD-W912

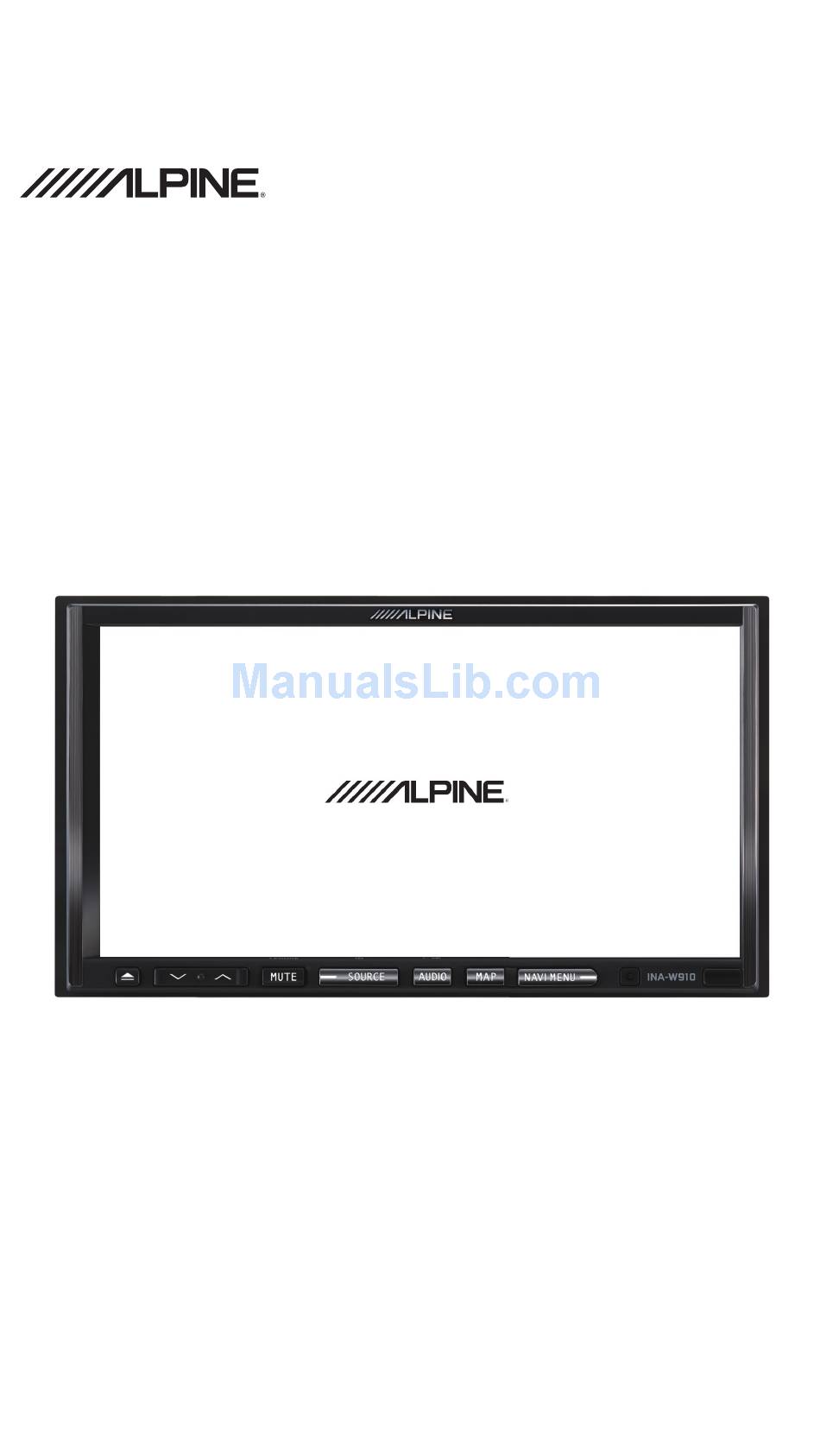

  • Page 1 QuiCk REFERENCE GuidE in-daSH gpS naVigaTion receiVer Map update applies to following products: NVd-w912 for iNA-w910 and iVA-NAV-20 NVd-w902 for iNA-w900, iNA-w900BT and iVA-NAV-10 ina-W900, ina-W900bT & iVa-naV-10 do not have the Traffic feature...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SYSTEM CONTROLS ............2 LANE GuidANCE ..............3 JuNCTiON ViEw ..............3 ENTERiNG AN AddRESS ..........4 SELECT AN iNTERSECTiON AS ThE dESTiNATiON ............7 QuiCk SEARCh FOR A PLACE OF iNTEREST ..10 EdiTiNG ThE LiST OF dESTiNATiONS .....

  • Page 3: System Controls

    SYSTEM CONTROLS...

  • Page 4: Lane Guidance

    LANE GuidANCE When navigating, these arrows represent the lanes to take. JuNCTiON ViEw When navigating, highlighted signs represent which lanes to use; all others are dimmed.

  • Page 5: Entering An Address

    ENTERiNG AN AddRESS To enter an address as the destination, do as follows: 1. press the [naVi menu], then tap 2. Tap 3. by default, the software proposes the state where you are driving. if needed, , enter a few letters of the destination state on the keyboard, and select one from the list.
  • Page 6 ENTERiNG AN AddRESS c. find the city you need: • The most likely city name is always shown in the input field. To accept it, tap • if the desired name does not appear, a list a names will open representing the names that are the closest match to the characters...
  • Page 7 ENTERiNG AN AddRESS 6. enter the house number: a. enter the house number on the keyboard. (To enter symbols, tap b. Tap to finish entering the address. (if the entered house number cannot be found, the midpoint of the street is selected as the destination.) 7.

  • Page 8: Select An Intersection As The Destination

    SELECT AN iNTERSECTiON AS ThE dESTiNATiON To enter an intersection of two streets as the destination, do as follows: 1. press the [naVi menu] hard key, then tap 2. Tap . 3. by default, the software proposes the state where you are.
  • Page 9 SELECT AN iNTERSECTiON AS ThE dESTiNATiON c. find the city you need: • The most likely city name is always shown in the input field. To accept it, tap • if the desired name does not appear, a list a names will open representing the names that are the closest match to the characters...
  • Page 10 SELECT AN iNTERSECTiON AS ThE dESTiNATiON 6. instead of entering the house number, tap . The system will prompt you to enter the intersecting street name. 7. a full screen map appears with the selected point in the middle. if necessary, tap the map somewhere else to modify the destination.

  • Page 11: Quick Search For A Place Of Interest

    QuiCk SEARCh FOR A PLACE OF iNTEREST The Quick search feature lets you quickly find a place by its name. The search is always carried out • along the recommended route if it exists or • around your current location if there is no destination given.
  • Page 12 QuiCk SEARCh FOR A PLACE OF iNTEREST 4. after entering a few letters, to open the list of places with names closely matching what you have already entered. 5. browse the list if necessary and tap one of the list items.

  • Page 13: Editing The List Of Destinations

    EdiTiNG ThE LiST OF dESTiNATiONS You can edit the route by modifying the list of destinations. You can add or remove destinations, modify the start position or reorder the list. 1. press the [naVi menu] hard key, then tap . 2. Tap 3.

  • Page 14: Cancel The Active Route

    CANCEL ThE ACTiVE ROuTE To cancel the calculated route, press the [naVi menu] hard key, tap in the navigation menu, and then tap The active route is deleted with all its waypoints once you press on the screen.

  • Page 15: Saving A Location As An Address Book Entry

    SAViNG A LOCATiON AS AN AddRESS BOOk ENTRY 1. Select a destination as described previously. it can be an address, a place, and any location on the map, a previously used destination from History, a coordinate or a location where a photo was taken. 2.

  • Page 16: Speed Limit Warning

    SPEEd LiMiT wARNiNG maps may contain information The following warning types about the speed limits of the are available: road segments. The software • audio warning: you receive can warn you if you exceed the a verbal warning when you current limit while driving these exceed the speed limit over segments.

  • Page 17: Adjusting Speed Warning

    AdJuSTiNG SPEEd wARNiNG 1. press [navi menu] Hard 2. Select [Settings] 3. Select [Sounds and Warnings] 4. Select [Speed Warning Settings] 5. use the slider to adjust when the warning is triggered (130% would warn the least)

  • Page 18: Traffic Settings / Understanding Traffic

    TRAFFiC SETTiNGS / uNdERSTANdiNG TRAFFiC* Traffic informaTion Your device contains the Tmc receiver that is needed to in rouTe planning receive Traffic events. The recommended route is not if public Traffic data is always the same between two broadcast at your location, the points.
  • Page 19 TRAFFiC SETTiNGS / uNdERSTANdiNG TRAFFiC* a special icon ( ) is displayed on the map screen to show you whether traffic events are received. The icon shows the status of the traffic receiver when there are no traffic events on your route, otherwise it shows the type of the next traffic event on your route.

  • Page 20: Traffic Events

    TRAFFiC EVENTS road segments affected by traffic events are displayed with an alternate color on the map. Small symbols above the road show the nature of the event. to open the list of traffic event categories: in the first column you can see the number of traffic events on your route.

  • Page 21: To Enable/Disable Traffic Features

    TO ENABLE/diSABLE TRAFFiC FEATuRES 1. press [navi menu] Hard Key 2. Select [Settings] 3. Select [Traffic] 4. Selecting [Smart routes] will use traffic information in routing. Selecting [Traffic receiver] will turn the traffic feature off completely (uncheck this box to disable “traffic ahead”...

  • Page 22: Quick Menu

    QuiCk MENu any screen that the symbol is available, press it and it will take you to a ‘quick menu’ where you can search for a poi, or deleTe a route.

  • Page 23: Route Settings

    ROuTE SETTiNGS 1. press [navi menu] key 2. Select [Settings] 3. Select [route Setting] 4. Then choose the options you want (use Highways, Toll roads, carpool lanes, or unpaved roads) in route calculations...

  • Page 24: Selected Map Location (Cursor) And Selected Map Object

    ROuTE SETTiNGS SelecTed map The location of the cursor can be used as the destination of locaTion (curSor) and the route, a new alert point, SelecTed map objecT you can search for places around it, or you can save this You can mark a map location in location as one of your favorite the following ways:...

  • Page 25: Scrolling The Map

    SCROLLiNG ThE MAP Tap the map anywhere to browse it during navigation. The map stops following the current position (the Vehimarker, a blue arrow by default, is not locked in a fixed position on the screen any more) and control buttons appear to help you modify the map view.
  • Page 26 SCROLLiNG ThE MAP Action Button Description rotating changes the horizontal view left and angle of the map. right Tap the button once to modify the view in large steps, or tap and hold the button to modify it continuously and smoothly. compass Tap this button to cycle between a 3d perspective and two 2d...

  • Page 27: Changing The Language

    ChANGiNG ThE LANGuAGE 1. press [navi menu] Hard Key 2. Select [Settings] 3. Select [clock/regional] 4. Select [menu language]...
  • Page 28 ChANGiNG ThE LANGuAGE 5. Select desired language 6. Then the system will prompt you to restart, Tap [reSTarT]...

  • Page 29: What's New

    whAT’S NEw? norTH up/Heading up icon on the map This function has changed… now toggles between 3d and Heading up. To view norTH up… you must touch the map anywhere to begin map scrolling, then press the arrows left or right until the north up part of compass is red auto Zoom control There is no setting to control this...
  • Page 30 whAT’S NEw? make a phone call to place 1. connect your phone to of interest W910 via bluetooth 2. follow Step 1,2,3,4,5 under Quick search for a place of interest in Quick reference guide. 3. Tap 4. Tap to call...

  • Page 31: Faq

    1. Q: Why does my system 5. Q: How do I set my map show searching for to North up instead satellites every time I of heading up? turn the key OFF/ON? a: See 1st item in “what’s A: in previous versions, new”...
  • Page 32 10. Q: How do I customize my VP marker? (blue triangle) a: navi menu -> Settings -> Scroll down->map Settings -> Scroll down ->Select 3d Vehicle gallery-> use the arrows to select your icon.
  • Page 33 QuicK reference guide p/n: nVd-W912 & nVd-W902...
