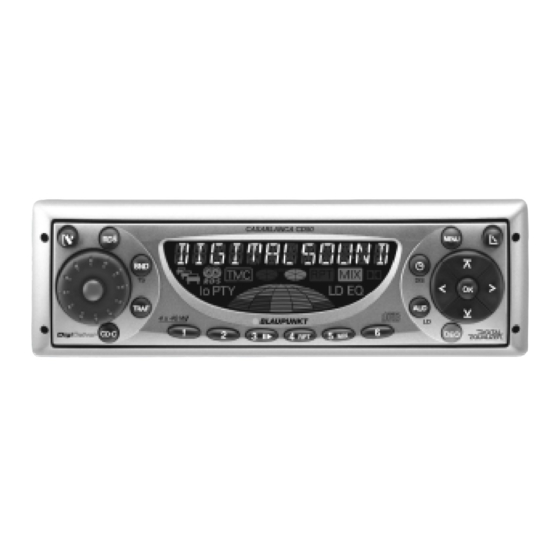

OPERATING ELEMENTS button to unlock release panel Volume control ON button, switches the unit on/ off, mute RDS button, switches the RDS convenience features on/off Selects display for variable text BND button, selects the FM memory bank and the MW and LW wavebands TS, starts the TravelStore function...
CONTENTS (CUE/REVIEW) ......43 Important information .... 32 Playing tracks in random order Traffic safety ........32 (MIX) ..........43 Installation ........32 Scanning tracks (SCAN) ....43 Accessories ........32 Repeating individual tracks Guarantee ........32 (REPEAT) ........43 International telephone information .
Before you use your car audio system Amplifiers for the first time, please take the time to read the instruction manual carefully All Blaupunkt amplifiers can be used. and make yourself familiar with the au- CD changers dio equipment. Keep this manual handy The following CD changers can be con- in your car for future reference.
REMOVABLE FRONT PANEL Removable front panel When you remove the operating panel, the car audio system will au- Theft protection system tomatically switch off. To prevent your car audio system from All of the settings will remain being stolen, it has been equipped with stored.
SCHWITCHING ON/OFF Switching the car audio Switching the car audio system on by inserting a CD system on/off If the system is switched off and there The car audio system can be switched is no CD in the CD player, on/off in a number of ways.
VOLUME CONTROL The volume at which phone calls or Adjusting the volume of the navigation voice output are heard can beep be adjusted. For a number of functions you will hear Press MENU 8. a beep if you press a key for longer than : repeatedly until “TEL/ 2 seconds, e.g.
RADIO OPERATION Radio operation Note: It is necessary to activate/deactivate This car audio system has been REG in the menu. equipped with an RDS radio receiver. Many FM radio stations now transmit Switching REG on/off the RDS signal, which contains such Press MENU 8.
RADIO OPERATION Tuning into radio stations Adjusting seek tuning sensitivity You can tune into radio stations in a It is possible to adjust the sensitivity of number of different ways. the seek tuning function to tune the ra- dio into stations with strong reception Automatic seek tuning signals only, or to those with weaker Press...
RADIO OPERATION Storing radio stations SCAN will begin. “SCAN” will appear briefly in the display, followed by the automatically (TravelStore) flashing station name or frequency of You can automatically store the six ra- the radio station currently being dio stations with the strongest reception scanned.
RADIO OPERATION Program Type (PTY) If you would like to select a different program type, press In addition to the radio station name, a while the program type is on dis- number of FM stations transmit informa- play to switch to another program tion on the type of program they broad- type.
RADIO OPERATION Optimising radio reception “SHARX OFF” means no bandwidth switching, “SHARX ON” means auto- Interference-related treble cut matic bandwidth switching. (HICUT) Press MENU 8 or OK ;. The HICUT function improves reception Selecting the display of variable when reception begins to deteriorate. If interference occurs, then the treble and text the noise is cut automatically.
TRAFFIC INFORMATION CD PLAYER OPERATION Traffic information CD player operation The CD player in this car audio system Switching traffic information can be used to play conventional music priority on/off CDs with a diameter of 12 cm. Press TRAF ?. Danger of damage to the CD Traffic information priority is activated player!
CD PLAYER OPERATION Selecting tracks Stopping the SCAN function, continue listening to the current Press a key on the cursor block : track to select the next or the previous To stop the SCAN function, press track. OK ;. : once to restart the Press same track.
CD PLAYER OPERATION : to select the letter two seconds once or repeatedly Press until the desired display becomes you want to enter. If you want to visible. leave this position blank, select the dash. Traffic radio information during : to move the cur- Press CD playback sor to a different input position.
CD CHANGER OPERATION CD changer operation quired, until the desired information appears in the display. Note: Repeating individual tracks or For information on how to handle CDs, entire CDs (REPEAT) how to insert CDs into the changer and how to operate the changer, please re- To repeat the track currently play- fer to the instructions included with the ing, press 4 RPT >...
CD CHANGER OPERATION changers first play all of the tracks on a Naming CDs CD in random order and then select the To help you to identify your CDs more next CD in the changer. easily, the car audio system allows you to individually name up to 99 CDs.
CD CHANGER OPERATION CLOCK : to select “CDC CLOCK Press NAME”. Displaying the clock briefly Press To display the time briefly, press Press and hold down MENU 8. / DIS 7 briefly. After four seconds you will hear a Setting the time beep and “DELETE NAME”...
Page 21
CLOCK : to alter the minutes. Displaying the time briefly when Press the car radio is switched off Once you have altered the minutes, :. The hours will begin to press To display the time briefly when the car flash. radio is switched off, : to alter the hours.
TONE AND BALANCE/FADER Adjusting the tone and Switching Loudness on/off balance/fader Loudness boosts the bass and treble when the volume is low to create a more Adjusting the bass natural sound. To adjust the bass, press AUD / LD Press AUD / LD = for approx. two seconds.
EQUALIZER Equalizer Switching the equalizer on/off This car audio system is equipped with To switch the equalizer on, press and hold down DEQ < until EQ a parametric digital equalizer. In this case, parametric means that it is possi- lights up in the display and “EQ ble to individually raise or lower one fre- ON”...
Page 24
EQUALIZER Press DEQ <. Selecting a sound preset : repeatedly until You can also select sound presets for Press the following types of music: “CAR PRESET” appears in the dis- play. CLASSIC : to select the de- Press sired car preset. JAZZ Press DEQ <...
Your car audio er, it is possible to connect two external system has been equipped with a TMC audio sources. output to which Blaupunkt navigation You must activate the AUX output in the systems can be connected. To find out menu.
SPECIFICATIONS Specifications Amplifier Output power: 4 x 25 watts RMS acc. to DIN 45 324 at 14.4 V 4 x 40 watts max. power Tuner Wavebands: 87.5 - 108 MHz MW : 531 - 1602 kHz 153 - 279 kHz FM frequency response: 30 - 15000 Hz CD player...
