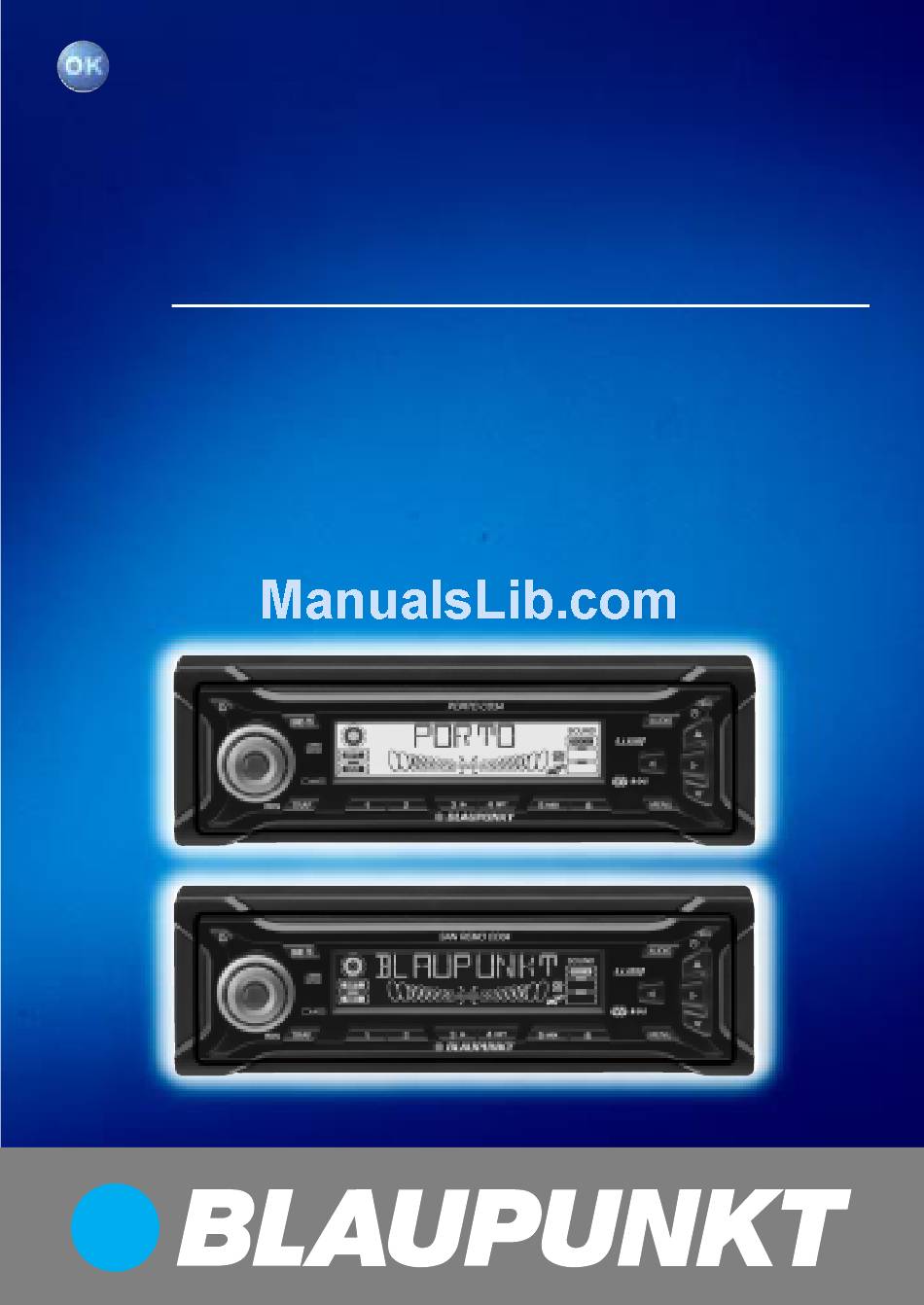

- Page 1 Radio / CD Porto CD34 San Remo CD34 Operating instructions 7 644 191 310 7 644 176 310 http://www.blaupunkt.com...
- Page 2 Open here...
- Page 4 button for opening the de- tachable control panel (flip-re- lease panel) Button to switch the device on/ off and operate the volume mute feature Volume control BND button (band) to select ra- dio mode as the source, to select the FM memory banks and the MW and LW wavebands TS to start the Travelstore func- tion...
-
Page 5: Table Of Contents
CONTENTS Notes and accessories ... 29 Road safety ... 29 Installation ... 29 Accessories ... 29 Detachable control panel (flip-release panel) ... 30 Switching on/off ... 31 Adjusting the volume ... 32 Setting the power-on volume ... 32 Instantaneously decreasing the volume (mute) ... -
Page 6: Notes And Accessories
Amplifiers You can use all Blaupunkt and Velocity amplifiers. CD changers You can connect the following Blaupunkt CD changers: CDC A 08, IDC A 09 and CDC A 03. -
Page 7: Detachable Control Panel (Flip-Release Panel)
DETACHABLE CONTROL PANEL Detachable control panel (flip-release panel) Theft protection The device is equipped with a detacha- ble control panel (flip-release panel) as a way of protecting your equipment against theft. The device is worthless to a thief without this control panel. Protect your device against theft by tak- ing the control panel with you whenev- er you leave your vehicle. -
Page 8: Switching On/Off
CONTROL PANEL Note: When attaching the control panel, make sure you do not press the display. If the device was still switched on when you removed the control panel, it will automatically switch on with the last settings activated (i.e. radio, CD, CD changer or AUX) when the panel is re- placed. -
Page 9: Adjusting The Volume
SWITCHING ON/OFF Switching on by inserting a CD If the device is switched off and there is no CD present in the drive, button 1. press the The flip-release panel opens. Gently insert the CD with its printed side uppermost into the drive until you feel some resistance. -
Page 10: Instantaneously Decreasing The Volume (Mute)
When you have finished making your changes, press the MENU button 8 twice. Instantaneously decreasing the volume (mute) You can instantaneously decrease the volume (mute) to a level preset by you. Briefly press button 2. “MUTE” appears in the display. Cancelling mute To return to your previously set volume level,... -
Page 11: Radio Mode
RADIO MODE Radio mode This device is equipped with an RDS radio receiver. Many of the receivable FM stations broadcast a signal that not only carries the programme but also additional information such as the sta- tion name and programme type (PTY). The station name appears in the dis- play as soon as the tuner receives it. -
Page 12: Tuning Into A Station
To switch between the FM memory banks (FM1, FM2 and FMT) and the MW and LW wavebands, briefly press the BND•TS button Tuning into a station There are various ways of tuning into a station. Automatic station seek tuning button 7. Press the The radio tunes into the next receiva- ble station. -
Page 13: Storing Stations
RADIO MODE Storing stations Storing stations manually Select the memory bank (i.e. FM1, FM2, FMT) that you want or one of the wavebands (MW or LW). Tune into the station that you want. Press and hold down one of the station buttons 1 - 6 9 for longer than two seconds to assign the sta- tion to that button. -
Page 14: Programme Type (Pty)
When you have finished making your changes, press the MENU button 8 twice. Note: The scanning time that you set is also applied by the system to scan- ning carried out in CD and CD- changer mode. Programme type (PTY) Besides transmitting the station name, some FM stations also provide informa- tion on the type of programme that they... -
Page 15: Optimising Radio Reception
RADIO MODE Selecting a programme type and starting seek tuning button 7. Press the The current programme type appears in the display. If you want to select another pro- gramme type, you can do so by pressing the whilst this display is visible. The selected programme type appears briefly in the display. -
Page 16: Traffic Information
Traffic information Your device is equipped with an RDS- EON receiver. EON stands for En- hanced Other Network. Whenever a traffic announcement (TA) is broadcast, the system switches au- tomatically from a station that does not provide traffic reports to the appropri- ate traffic information station within the broadcasting network that does. -
Page 17: Cd Mode
CD MODE CD mode You can use this device to play stand- ard audio CDs, CD-Rs and CD-RWs with a diameter of 12 or 8 cm. Risk of severe damage to the CD drive! Contoured CDs (shape CDs) are not suitable for playback in this unit. -
Page 18: Scanning Tracks (Scan)
Scanning tracks (SCAN) You can briefly play all the tracks on the Press and hold down the MENU button 8 for longer than two sec- onds. The next track will then be played brief- Note: You can set the scanning time. For further details, please read the sec- tion entitled “Setting the scanning time”... -
Page 19: Traffic Announcements In Cd Mode
CD MODE Switching CD text on/off Press the MENU button 8. button 7 re- Press the peatedly until “CD TEXT” appears in the display. Switch the CD text function on (“TEXT ON”) or off (“TEXT OFF”) button 7. using the When you have finished making your changes, press the MENU button 8 twice. -
Page 20: Cd-Changer Mode
CD-changer mode Note: Information on handling CDs, in- serting CDs and operating the CD changer can be found in the oper- ating instructions supplied with your CD changer. Switching to CD-changer mode Press the SRC ( ) button 6 re- peatedly until “CHANGER”... -
Page 21: Random Track Play (Mix)
CD-CHANGER MODE Cancelling REPEAT To stop the current track or current CD from being repeated, briefly press the 4 RPT button 9. “RPT OFF” appears and RPT disap- pears from the display. Random track play (MIX) To play the tracks on the current CD in random order, briefly press the 5 MIX button 9. -
Page 22: Clock - Time
CLOCK - Time Displaying the clock time To briefly display the clock time, Press and hold down the SRC ( ) button 6 until the clock time ap- pears in the display. Setting the clock time To set the clock time, press the MENU button 8. -
Page 23: Sound
SOUND Sound You can adjust the sound settings (bass and treble) separately for each audio source (radio, CD, CD changer, AUX and traffic announcements). The vol- ume distribution settings (balance and fader) apply to all the audio sources. Note: You can only adjust the sound set- tings for traffic announcements whilst a traffic announcement is ac- tually being played. -
Page 24: X-Bass
SOUND Equalizer presets This device is equipped with an equal- izer that has been preset with settings for the “ROCK”, “POP” and “CLASSIC” music styles. To select an equalizer preset, press the AUDIO button 5. “BASS” appears in the display. button 7 repeatedly Press the until “POP”, “ROCK”, “CLASSIC”... -
Page 25: Configuring The Level Display
You can obtain this cable (Blau- punkt no.: 7 607 897 093) from your authorised Blaupunkt dealer. Switching the AUX input on/off Press the MENU button 8. “MENU” appears in the display. -
Page 26: Specifications
Specifications Amplifier Output power: 4 x 25 watts sine in accordance with DIN 45 324 at 14.4 V 4 x 45 watts max. power Tuner Wavebands in Europe: 87.5 - 108 MHz MW : 531 - 1602 kHz 153 - 279 kHz FM frequency response: 35 - 16,000 Hz Frequency response:... - Page 27 09-435 99236 01-4010 7320 01-89583 8394 01-4598830 02-369 62464 40 2085 023-565 6331 66-817 157 01-2185 11111 916-467952 08-7501810 01-8471650 02-6130 0514 01-324 8756 022-8771260 0212-3460040 708-6817188 +55-19 3745 2773 +604-6413 640 Blaupunkt GmbH CM/PSS 8 622 403 875 WWW: http://www.blaupunkt.com...
