Blaupunkt Casablanca CD52 Operating Instructions Manual

Radio / cd
Hide thumbs Also See for Casablanca CD52:
Table of Contents

Advertisement

Quick Links

Radio / CD
Casablanca CD52
Heidelberg CD52
US version
Operating instructions
http://www.blaupunkt.com

Advertisement

Table of Contents
loading

Related Manuals for Blaupunkt Casablanca CD52

Summary of Contents for Blaupunkt Casablanca CD52

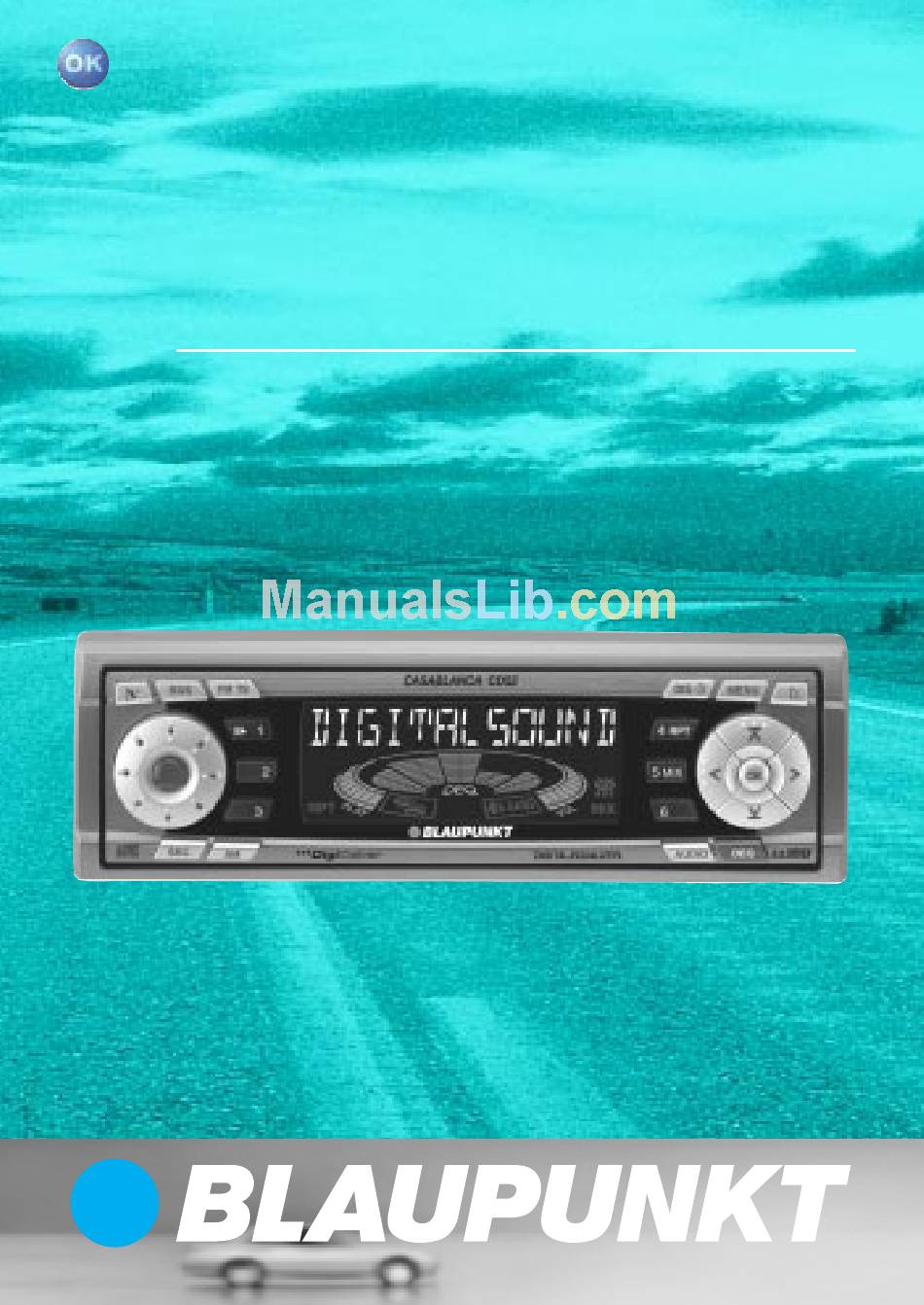

  • Page 1 Radio / CD Casablanca CD52 Heidelberg CD52 US version Operating instructions http://www.blaupunkt.com...
  • Page 2 Open here Ouvrir s.v.p. Por favor, abrir Favor abrir...
  • Page 4 CONTROLS button - unlatches the flip/ release panel Volume control Button - switches the radio and mute function on/off RDS button, to switch the RDS function on/off (Radio Data Sys- tem). FM button, to select the FM ra- dio mode source and select the FM memory banks TS, to start the Travelstore func- tion...

  • Page 5: Table Of Contents

    Notes and accessories ... 6 Flip/release panel ... 7 Switching on/off ... 8 Volume adjustment ... 9 Radio mode ... 10 Setting the tuner ... 10 Switching to radio mode ... 11 Switching the RDS function on/off ... 11 Selecting the waveband / memory bank ...

  • Page 6: Notes And Accessories

    RC 08, RC 10 or RC 10H (available as an optional ex- tra). The radio cannot be switched on/off via remote control. Amplifiers All Blaupunkt amplifiers are suitable for use with the radio.

  • Page 7: Flip/Release Panel

    (only Casablanca CD52) The car radio provides connections for connecting external amplifiers and a subwoofer. We recommend you use well-matched products from the Blaupunkt or Velocity product ranges. FLIP/RELEASE PANEL Flip/release panel Theft protection Your car radio is fitted with a flip/release panel to guard against theft.

  • Page 8: Switching On/Off

    FLIP/RELEASE PANEL button 1. Press the This unlatches the flip/release panel. First pull the flip/release panel straight and then to the left out of the unit. After removing the flip/release pan- el, the unit switches itself off. All the current settings are saved. If there is a CD in the unit, it re- mains there.

  • Page 9: Volume Adjustment

    For this, you need adapter cable Blaupunkt no. 7 607 001 503. To find out which navigation systems are compatible with your car radio, please consult your Blaupunkt dealer.

  • Page 10: Radio Mode

    2. Automatic Sound (only Casablanca CD52) This function adjusts the volume of your car radio automatically to your driving speed. This requires your device to be connected as described in the installa- tion guide.

  • Page 11: Switching To Radio Mode

    Switching to radio mode If you are in CD, CD changer/Compact Drive MP3 or AUX mode, press the FM TS button 5 for FM radio mode. press the AM button ? for AM ra- dio mode. Switching the RDS function on/ To use the RDS functions, press the RDS button 4.

  • Page 12: Storing Stations

    RADIO MODE When you have finished making your changes, press the MENU button 8 or OK Storing stations Storing stations manually Select the required memory bank (FM1, FM2 or FMT) or the AM waveband. Tune into the required station. Press one of the station buttons 1 - 6 >...

  • Page 13: Programme Type (Pty)

    Note: The set scantime also applies to scan- ning in CD mode but not to scanning in CD changer mode. Programme type (PTY) Besides transmitting the station name, some FM stations also provide informa- tion on the type of programme that they are broadcasting.

  • Page 14: Displaying Scrolling Text

    RADIO MODE Keep pressing the til “HICUT” appears in the display. button : to ad- Press the just HICUT. “HICUT 0” means that no reduction will be made, “HICUT 3” means a maximum automatic reduction of the treble and interference level will be applied. Press the MENU button 8 or OK Switching bandwidth during interference (SHARX)

  • Page 15: Cd Mode

    CD-Rs and CD-RWs (CDs that you have “burned” yourself) can generally also be played. Due to the varying qual- ity of CDs, Blaupunkt cannot guaran- tee that this will work properly. To ensure the system functions proper- ly, only use CDs labelled with the com- pact disc logo.

  • Page 16: Random Play (Mix)

    CD MODE Random play (MIX) Press the button 5 MIX >. “MIX CD” appears briefly on the display, the MIX symbol lights up. The next track played will be randomly selected. Stopping MIX Press the button 5 MIX > once again.

  • Page 17: Naming Cds

    Naming CDs To make it easier for you to recognise your CDs, the car radio offers an indi- vidual name option for 30 CDs. The names should have a maximum of eight digits. If you attempt to allocate more than 30 names, “FULL” will appear on the display.

  • Page 18: Removing A Cd

    CD MODE Removing a CD button 9. Press the The flip/release panel opens to the front and the CD is ejected. Carefully remove the CD and close the flip/release panel. CD CHANGER MODE CD changer mode Note: Information on handling CDs, inserting CDs and operating the CD changer can be found in the operating instructions accompanying your CD changer.

  • Page 19: Repeating Individual Tracks Or Whole Cds (Repeat)

    more than two seconds until the desired elements appear on the display. Repeating individual tracks or whole CDs (REPEAT) To repeat the current track, press the button 4 RPT > briefly. “REPEAT TRCK” appears briefly on the display and RPT lights up. To repeat play of the entire CD, press the button 4 RPT >...

  • Page 20: Naming Cds

    CD CHANGER MODE Naming CDs To make it easier for you to recognise your CDs, the car radio offers an indi- vidual name option for 99 CDs. The names should have a maximum of sev- en digits. If you attempt to allocate more than 99 names, “FULL”...

  • Page 21: Clock - Time

    CLOCK - Time Briefly displaying the time 7 button briefly Press the DIS to display the time. Setting the time The time can be set automatically us- ing the RDS signal. If you are unable to receive an RDS station or the station you are listening to does not support this function, it is also possible for you to set the clock manually.

  • Page 22: Tone And Volume Balance

    TONE AND VOLUME BALANCE Tone and volume balance You can adjust the sound settings for each source separately (radio, CD, CD changer/Compact Drive MP3 and AUX). Adjusting the bass Press the AUDIO = button. “BASS” appears on the display. button : to set Press the the bass.

  • Page 23: Equalizer

    TONE AND VOLUME BALANCE Setting the volume distribution front/rear (fader) To set the volume distribution front/ rear (fader), press the AUDIO = button. “BASS” appears on the display. button : repeatedly Press the until “FADER” appears on the dis- play. button : to set Press the the volume distribution front/rear.

  • Page 24: Switching The Equalizer On/Off

    EQUALIZER Set the equalizer values as de- scribed under “What to do”. Switching the equalizer on/off To switch on the equalizer, hold down the DEQ button < until EQ lights up on the display “EQ ON” is briefly displayed. To switch on the equalizer, hold down the DEQ button <...

  • Page 25: Setting The Level Indicator

    Setting the level indicator The level indicator (spectrometer) on your display briefly indicates the volume, tone and equalizer settings with sym- bols on your display as you make the corresponding settings. When settings are not being made, the spectrometer indicates the original lev- el of the car radio.

  • Page 26: External Audio Sources

    The AUX output has to be switched on in the install menu. To connect up an external audio source, you will need an adapter cable, obtain- able from any authorised Blaupunkt dealer. Switching the AUX input on/off Press the MENU button 8.
  • Page 27 09-435 99236 01-4010 7320 01-89583 8394 01-576 9473 01-4598830 02-369 6464 40 2085 023-565 6331 66-817 157 01-2185 11111 916-467952 08-7501810 01-8471650 02-6130 0514 01-324 8756 022-8771260 0212-3460040 708-6817188 +604-6413 640 Blaupunkt GmbH CM/PSS 8 622 403 158 WWW: http://www.blaupunkt.com...

  • Page 28: Installation Instructions

    Radio / CD Casablanca CD52 Heidelberg CD52 US version Installation instructions Notice de montage Instrucciones de instalación Instruções de montagem http://www.blaupunkt.com...
  • Page 29 If the information provided here is not suitable for your specific installation requirements, please contact your Blaupunkt dealer, your vehicle manufacturer or our telephone hotline. Consignes de sécurité Respecter les consignes de sécurité suivantes pendant la durée du montage et du branchement.
  • Page 30 Caso as presentes instruções não sejam adequadas para a monta- gem no seu veículo, dirija-se ao revendedor da Blaupunkt, ao fabricante do seu veículo ou à nossa linha verde.
  • Page 31 Supplied Mounting Hardware Materiel de montage fourni Ferretería de montaje suministrada Elementos de fixação fornecidos. 1 2 V 1-20...
  • Page 32 Car-specific adapter cable which is available at your dealer. Câble adaptateur spécifique au véhicule, disponible dans le commerce. Adaptador específico del vehículo, el cual se puede adquirir en el comercio especializado. Cabo de adaptação específico do automóvel que pode ser adquirido no comércio especializado.
  • Page 33 7 10 9 12 8 11 Automatic Sound Radio Mute Sub out Permanent +12V Aut. antenna Illumination Kl.15/Ignition Ground Line Out LR Line Out RR Line Out Masse / Ground Line Out LF Line Out RF +12V Amplifier Equalizer Amplifier 13 16 19 15 18 14 17 20...
  • Page 34 Sub out cable 7 607 609 093 8 604 492 320 Radio Mute (low) This information is subject to change without notice! Sous réserve de modifications! Modificaciones reservadas! Sob reserva de alterações! 4 Ohm 4 Ohm 4 Ohm 4 Ohm 1 3 5 Amplifier (max.

This manual is also suitable for:

Heidelberg cd52
