Summary of Contents for Blaupunkt Casablanca CD50

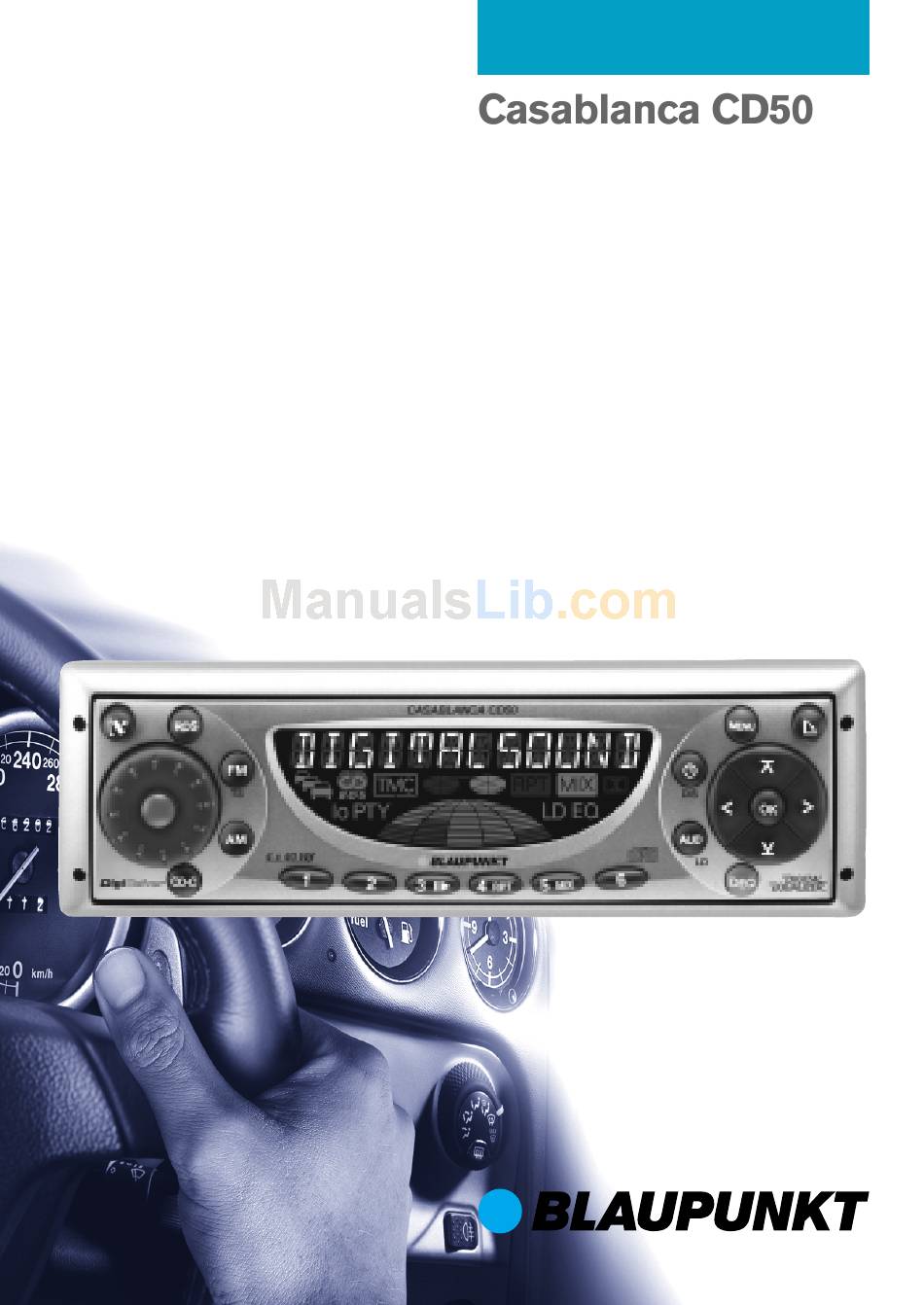

- Page 1 Radio / CD Operating instructions...
- Page 2 Open here Ouvrir s.v.p. Por favor, abrir Favor abrir...
- Page 4 button to unlock release panel Volume control ON button, switches the unit on/off, mute RDS button, switches the RDS function on/off Selects display for variable text FM button, selects the FM waveband and the FM memory bank TS, starts the TravelStore function Display button, displays the time...
-
Page 5: Table Of Contents
Important information ... 6 Traffic safety ... 6 Installation ... 6 Accessories ... 6 Guarantee ... 6 International telephone information ... 6 Removable front panel ... 7 Switching the car audio system on/off... 8 Volume control ... 9 Adjusting the power-on volume ... 9 Mute ... -
Page 6: Traffic Safety
All Blaupunkt amplifiers can be used. The following CD changers can be con- nected directly: CDC A 06, CDC A 08, CDC A 072 and IDC A 09. - Page 7 To prevent your car audio system from being stolen, it has been equipped with a removable front panel (flip release panel). Without the front panel, the car audio system is useless to thieves. Protect your car audio system against theft and take the operating panel with you each time you leave the vehicle.
- Page 8 The car audio system can be switched on/off in a number of ways. If the car audio system has been con- nected to your vehicle ignition, it is pos- sible to switch it on and off with the igni- tion. You can also switch the car audio sys- tem on when the ignition is switched off.
-
Page 9: Installation
To find out which navigation systems can be used with your car radio, con- tact a Blaupunkt specialist dealer. The volume at which phone calls or navigation voice output are heard can be adjusted. - Page 10 : to select the desired Press volume level. Once you have made your selec- tion, press MENU 8 or OK ;. This function automatically adjusts the volume to your driving speed. For this to function properly, your car radio must be connected as described in the instal- lation instructions.
- Page 11 If you are currently using the CD player or CD changer, press CD•C @ repeatedly until “RADIO” appears in the display. This car audio system has been equipped with an RDS radio receiver. Many FM radio stations now transmit a signal which contains such other infor- mation as the station name along with their regular programming.
- Page 12 Press MENU 8. : repeatedly until Press “SENS” appears in the display. Press The currently selected setting will ap- pear in the display. “SENS HI” indicates the highest level of sensitivity, “SENS LO” the lowest. If you select “SENS LO”, “lo”...
- Page 13 Press MENU 8. : repeatedly until Press “SCANTIME” appears in the dis- play. : to set the scan time Press as desired. Once you have made your selec- tion, press MENU 8 or OK ;. Note: The scan time selected also applies to the SCAN function for theCD player and the CD changer operation.
- Page 14 This car audio system has been equipped with a multiband tuner. The tuner can be adjusted to accommodate country-specific requirements. The available regions are: America, Europe, Asia and Thailand. The tuner is not fully functional unless it has been set to the country in which it is used.
-
Page 15: Radio Operation
Press a key on the cursor block : to select the next or the previous track. : once to restart the Press same track. To start Cue or Review, press and hold down either : until the process begins. Press 5 MIX >. “MIX CD”... - Page 16 To switch the display between the track number and time or the track number and elapsed playing time or track number and CD name, / DIS 7 for longer than press two seconds once or repeatedly until the desired display becomes visible.
- Page 17 Note: For information on how to handle CDs, how to insert CDs into the changer and how to operate the changer, please re- fer to the instructions included with the CD changer. Press CD•C @ repeatedly until “CHANGER” appears in the dis- play.
- Page 18 changers first play all of the tracks on a CD in random order and then select the next CD in the changer. To stop the MIX function, press 5 MIX > repeatedly until “MIX OFF” appears briefly in the display and MIX no longer lights up.
-
Page 19: Clock
: to select “CDC Press NAME”. Press Press and hold down MENU 8. After four seconds you will hear a beep and “DELETE NAME” will ap- pear in the display. Release MENU 8. The CD name will be deleted. Press OK ; to return to the menu. You want to delete all of the names en- tered for the CDs. - Page 20 : to alter the minutes. Press Once you have altered the min- :. The hours will utes, press begin to flash. : to alter the hours. Press Press MENU 8 or OK ;. Press MENU 8. “MENU” will appear in the display. : repeatedly until “24 H Press MODE”...
- Page 21 To adjust the bass, press AUD / LD “BASS” will appear in the display. : to alter the bass. Press To adjust the treble, press AUD / LD =. “BASS” will appear in the display. : until “TREBLE” ap- Press pears in the display.
-
Page 22: Equalizer
This car audio system is equipped with a parametric digital equalizer. In this case, parametric means that it is possi- ble to individually raise or lower one fre- quency (GAIN +10 to -20 dB) for each of the five filters. The following filters are available: SUB LOW EQ 32 to 50 Hz... - Page 23 You can also select sound presets for the following types of music: CLASSIC JAZZ ROCK TECHNO SPEECH The settings for these types of music have already been defined. Press DEQ <. : repeatedly until Press “SOUND PRESET” appears in the display.
-
Page 25: External Audio Sources
In addition to the CD changer it is also possible to connect another external au- dio source to the line output. These sources can include a portable CD play- er, MiniDisc player or MP3 player. If you have not connected a CD chang- er, it is possible to connect two external audio sources. - Page 26 01-6 10 39-0 015 762 241 026 130 04 41 800-266 25 28 006 535 054 47 042 175 873 212 Blaupunkt-Werke GmbH Bosch Gruppe K7/VKD 8 622 402 140 Fax: 0 51 21 49 40 02 0 25 25 54 48...
-
Page 27: Installation Instructions
Radio / CD Installation instructions Notice de montage Instrucciones de instalación Instruções de montagem... -
Page 28: Safety Instructions
- Do not connect the vehicle’s plug connectors to the radio! - You can obtain the adapter cable required for your vehicle type from any BLAUPUNKT dealer. Consignes de sécurité Respecter les consignes de sécurité suivantes pendant la durée du montage et du branchement. - Page 29 - Los cables adaptadores necesarios para su vehículo los encontrará en el comercio especializado en artículos de la marca BLAUPUNKT. Instruções de segurança Durante a montagem e a ligação do aparelho, queira respeitar as seguintes instruções de segurança. - Separar o pólo negativo da bateria! Respeitar ao mesmo tempo as instruções de segurança do...
- Page 30 1 2 V Car-specific adapter cable which is available at your dealer. Câble adaptateur spécifique au véhicule, disponible dans le commerce. Adaptador específico del vehículo, el cual se puede adquirir en el comercio especializado. Cabo de adaptação específico do automóvel que pode ser adquirido no comércio especializado.
-
Page 31: Remote Control
7 10 9 12 8 11 Automatic Sound Radio Mute Sub out Permanent +12V Aut. antenna Illumination Kl.15/Ignition Ground Line Out LR Line Out RR Line Out Masse / Ground Line Out LF Line Out RF +12V Amplifier Equalizer 13 16 19 15 18 14 17 20 Speaker out RR+... - Page 32 This information is subject to change without notice! Sous réserve de modifications! Modificaciones reservadas! Sob reserva de alterações! 1 3 5 Radio Mute (low) +12V (max. 150 mA) Relais 4 Ohm 4 Ohm 4 Ohm 4 Ohm Kl. 15 +12V 1 2 V...
