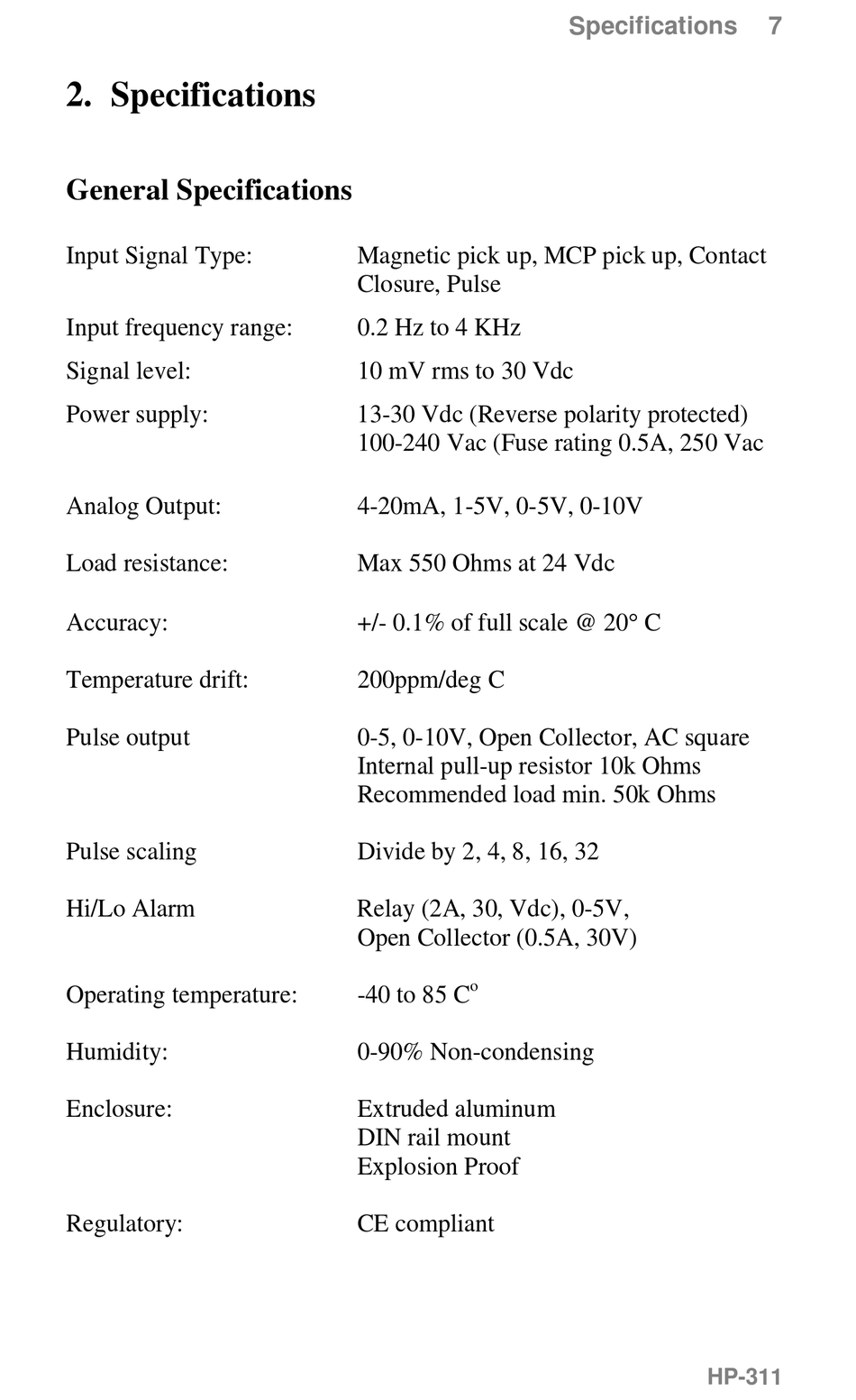

2. Specifications

General Specifications
Input Signal Type:
Input frequency range:
Signal level:
Power supply:
Analog Output:
Load resistance:
Accuracy:
Temperature drift:
Pulse output
Pulse scaling
Hi/Lo Alarm
Operating temperature:
Humidity:
Enclosure:
Regulatory:
Magnetic pick up, MCP pick up, Contact
Closure, Pulse
0.2 Hz to 4 KHz
10 mV rms to 30 Vdc
13-30 Vdc (Reverse polarity protected)
100-240 Vac (Fuse rating 0.5A, 250 Vac
4-20mA, 1-5V, 0-5V, 0-10V
Max 550 Ohms at 24 Vdc
+/- 0.1% of full scale @ 20 C
200ppm/deg C
0-5, 0-10V, Open Collector, AC square
Internal pull-up resistor 10k Ohms
Recommended load min. 50k Ohms
Divide by 2, 4, 8, 16, 32
Relay (2A, 30, Vdc), 0-5V,
Open Collector (0.5A, 30V)
o
-40 to 85 C
0-90% Non-condensing
Extruded aluminum
DIN rail mount
Explosion Proof
CE compliant
