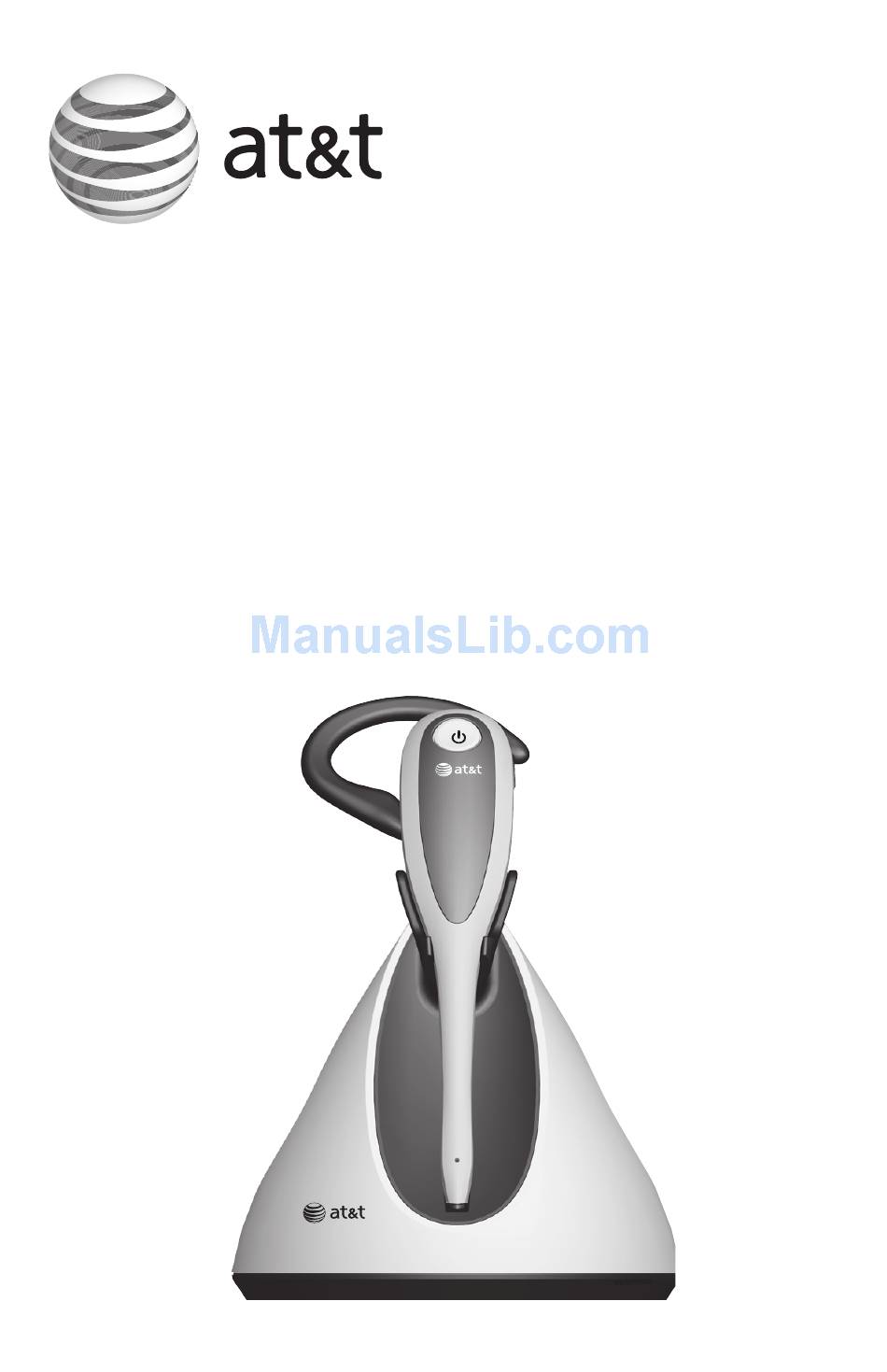

Page 1: Quick Start Guide
Quick start guide TL7800 DECT 6.0 accessory cordless headset... - Page 2 Quick reference guide - headset (On/off button and light) Press to make, answer or end a call. MUTE Press to mute the microphone during a call. Press to mute the ringer in the earpiece when there is an incoming call. VOL+/VOL- Slide the volume switch to the right or left to...
- Page 3 Quick reference guide - headset charger Magnetic charging mount Place the headset here for charging. Power cord slot Route the power cord through the slot. Power jack...
-
Page 4: Battery Installation
Battery installation The battery is permanently attached to the battery compartment cover. Do not try to separate them from each other. After installing the battery, charge it for at least 5 minutes. You may be able to make and receive short calls. For optimal performance, charge the headset battery for at least three hours before use. -
Page 5: Headset Charger Installation And Battery Charging
Headset charger installation and battery charging After installing the battery, charge the headset by placing it in the magnetic charging mount as shown below. The light turns on when the headset is charging. Plug the small end of the headset charger power adapter into the power jack at the bottom of the headset charger. -
Page 6: Adding And Registering Headsets
Adding and registering headsets You must register your new TL7800 headset with one of the following devices before use: • AT&T TL780/TL78 cordless headset (see page 6). You can register a maximum of two headsets to each headset base. •... - Page 7 Adding and registering headsets Register a headset to the TL7810/TL7812 headset base Make sure the battery is properly installed in the headset (see page ). The light flashes slowly in red and blue to indicate the headset is not registered. Place the headset in the headset charger and allow it to charge for at least one hour before beginning registration.
- Page 8 Adding and registering headsets Register a headset to the Synapse SB67030/SB67031 deskset Press MENU on the deskset. Scroll to User Settings, then press SELECT. Scroll to Cordless Settings, then press SELECT. Scroll to Headset, then press SELECT. Make sure the screen shows Cordless Headset is currently Not Registered before registration.
- Page 9 Adding and registering headsets Register a headset to the SynJ SB67138/SB67158 base Place the headset in the headset charger COVM and allow it to charge for at least five Speed dial setup minutes before beginning registration. Make Customer support Registration >...
- Page 10 Adding and registering headsets Register a headset to an AT&T DECT cordless telephone base Make sure the battery is properly installed in the headset (see page ). The light on the headset flashes slowly in red and blue to indicate the headset is not registered. Place the headset in the headset charger and allow it to charge for at least one hour before beginning registration.
- Page 11 Adding and registering headsets Register a headset to an AT&T DECT cordless telephone base (cont.) It takes about 60 seconds to complete the registration process. light turns red when the headset is registered but not fully charged, or turns blue when it is registered and fully charged. To verify the registration, press the button on the headset and check for a dial tone.
-
Page 12: Headset Attachments
Headset attachments Earbud There are a total of six earbuds provided. One of them has been attached to the headset. They come in three sizes of which there are two types: one normal and one providing a deeper fit. Follow the steps below to change the earbud. - Page 13 Headset attachments Over the ear hook There are three ear hooks provided. Choose the size that best fits your need to attach to the headset. Follow the steps below to attach an ear hook to the headset. To position the headset to wear on the left or right ear: •...
- Page 14 Headset attachments To attach the ear hook to the headset: Make sure there is no headset attachment, except the earbud, connected to the headset. Insert the earpiece into the ear hook loop, as shown in Figure . Press the edge of the ear hook loop towards the earpiece until it clicks into place, as shown in Figure .
- Page 15 Headset attachments Over the head band There are two over the head bands provided. Choose the one that best fits your need to attach to the headset. Follow the steps below to attach an over the head band to the headset. To attach the head band to the headset: Make sure there is no headset attachment, except the earbud, connected to the headset.
- Page 16 Headset attachments Behind the neck band By default, the ear pad on the neck band is positioned to be worn on the right ear. To attach the headset to the neck band: Make sure there is no headset attachment, except the earbud, connected to the headset.
-
Page 17: Headset Operation
Headset operation Power on/off the headset Power on the headset before use. To power on the headset: • Place the headset in the headset charger. -OR- • Press and hold for two seconds. light flashes blue three times. You hear three beeps when it is being powered on. - Page 18 www.telephones.att.com/smb © 2012-2013 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Synapse and SynJ are registered trademarks of Advanced American Telephones. Printed in China. Issue 3 AT&T 01/13.
